MagicProgressWidget

项目介绍

  • 项目名称:MagicProgressWidget
  • 所属系列:openharmony的第三方组件适配移植
  • 功能:渐变的圆形进度条与轻量横向进度条
  • 项目移植状态:已完成
  • 调用差异:无
  • 基线版本:Release v1.1.1
  • 开发版本:sdk6,DevEco Studio2.2 Beta1

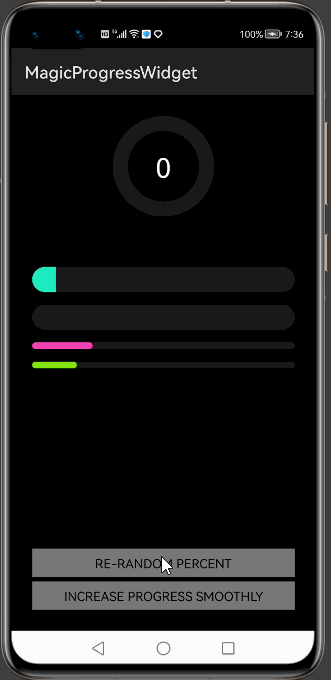

演示效果

输入图片说明

安装教程

1.在项目根目录下的build.gradle文件中,

allprojects {
   repositories {
       maven {
           url 'https://s01.oss.sonatype.org/content/repositories/releases/'
       }
   }
}

2.在entry模块的build.gradle文件中,

dependencies {
   implementation('com.gitee.chinasoft_ohos:MagicProgressWidget:1.0.3')
   ......
}

如无法运行,删除项目.gradle,.idea,build,gradle,build.gradle文件,

并依据自己的版本创建新项目,将新项目的对应文件复制到根目录下

使用说明

1.选择需要的自定义view,直接引用

        <com.liulishuo.magicprogresswidget.MagicProgressCircle
            ohos:id="$+id:mpb_mpc"
            ohos:height="match_parent"
            ohos:width="match_parent"
            ohos:mpc_stroke_width="18vp"/>
        <com.liulishuo.magicprogresswidget.MagicProgressBar
            ohos:id="$+id:mpb_one"
            ohos:height="30vp"
            ohos:width="match_parent"
            ohos:mpb_background_color="$color:colorMainMgbBg"
            ohos:mpb_fill_color="#FF1CECBE"
            ohos:mpb_flat="true"
            ohos:top_margin="60vp"/>

2.调用lib包MagicProgressCircle公共方法setpercent,setSmoothPercent,分别设定和传入随机进度和时间,可以根据自身需要来

MagicProgressCircle mc = (MagicProgressCircle) findComponentById(ResourceTable.Id_mpb_mpc);
MagicProgressBar mb = (MagicProgressBar) findComponentById(ResourceTable.Id_mpb_one);
mc.setPercent(xxx);
mc.setSmoothPercent(xxx);
mb.setPercent(xxx);
mb.setSmoothPercent(xxx);

3.根据lib包提供的接口,获取进度和动画执行时间

public interface Imag {
    /**
     * 获取当前进度
     *
     * @return 当前进度
     */
    float getPercent();

    /**
     * 设置第一次的进度
     *
     * @param percent 第一次的进度(from = 0.0, to = 1.0)
     */
    void setPercent(float percent);

    /**
     * 设置第一次的进度
     *
     * @param percent 第一次的进度(from = 0.0, to = 1.0)
     * @param durationMillis 动画执行时间
     */
    void setPercent(float percent, long durationMillis);

    /**
     * 设置当前进度
     *
     * @param percent 当前进度
     */
    void setSmoothPercent(float percent);

    /**
     * 设置当前进度
     *
     * @param percent 当前进度
     * @param durationMillis 动画执行时间
     */
    void setSmoothPercent(float percent, long durationMillis);
}

测试信息

CodeCheck代码测试无异常

CloudTest代码测试无异常

病毒安全检测通过

当前版本demo功能与原组件基本无差异

版本迭代

1.0.3

版权和许可信息

Copyright (c) 2015 LingoChamp Inc.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

   http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
