# moonExchange
## 1. 开发环境
使用 conda 安装环境
- Node.js
- 安装 Node https://nodejs.org/zh-cn/
- 查看 Node 版本
```bash
node -v
```
- python 2.7
- 安装 Ganache，用于创建私链测试
- Node-gyp https://github.com/nodejs/node-gyp 要求3.6.2版本
```bash
npm install -g node-gyp@3.6.2
```
- truffle 智能合约开发框架（需要版本 5.1.39）
- 先查看 truffle 版本
```bash
truffle -v
```
- 安装 truffle
```bash
npm install -g truffle
```
- 卸载 truffle
```bash
nmp uninstall -g truffle
```
- Create-react-app 需要3.3.1版本
```bash
npm install -g create-react-app@3.3.1
```
- git
## 2. 其他设置
- chrome 插件
- MetaMask 钱包
- redux devtools 允许 react app 中存储数据
- infura 允许我们连接到以太坊区块链上，而不需要我们自己的节点
- jacky2code@gmail.com
- MAINNET:https://mainnet.infura.io/v3/894570a98d0449d48cce0740f725eb22
- HEROKU 主机提供商
- jacky2code@gmail.com
## 3. 创建项目
- 使用 create-react-app 创建项目
```bash
create-react-app moon-exchange
```
- 运行项目
```bash
npm run start
```
- 添加项目依赖
- apexcharts 现代化图标库
- babel js编译器
- bootstrap 简洁、直观、强悍的前端开发框架，让web开发更迅速简单
- chai 测试框架
- dotenv 读取环境变量
- lodash 用于处理数据结构
- moment 处理时间
- redux 状态容器，提供可预测的状态管理
- reselect 用于从redux 中读取信息
- solidity-coverage 测试solidity代码坚固完整性
- truffle 构建智能合约及相关库和网络，使app和区块链对话
新版本依赖
```json
"dependencies": {
"@testing-library/jest-dom": "5.16.5",
"@testing-library/react": "13.4.0",
"@testing-library/user-event": "14.4.3",
"apexcharts": "3.36.3",
"babel-polyfill": "6.26.0",
"babel-preset-env": "1.7.0",
"babel-preset-stage-2": "6.24.1",
"babel-preset-stage-3": "6.24.1",
"babel-register": "6.26.0",
"bootstrap": "5.2.2",
"chai": "4.3.7",
"chai-as-promised": "7.1.1",
"chai-bignumber": "3.1.0",
"dotenv": "16.0.3",
"lodash": "4.17.21",
"moment": "2.29.4",
"openzeppelin-contracts": "4.0.0",
"react": "18.2.0",
"react-apexcharts": "1.4.0",
"react-bootstrap": "2.6.0",
"react-dom": "18.2.0",
"react-redux": "8.0.5",
"react-scripts": "5.0.1",
"redux": "4.2.0",
"redux-logger": "3.0.6",
"reselect": "4.1.7",
"solidity-coverage": "0.8.2",
"truffle": "5.6.5",
"truffle-flattener": "1.6.0",
"truffle-hdwallet-provider": "1.0.17",
"truffle-hdwallet-provider-privkey": "0.3.0",
"web3":"1.8.1",
"web-vitals": "2.1.4"
},
```
- 创建 truffle 项目
在项目根目录中执行一下命令：
```bash
truffle init
```
- JavaScript编译器预设
- 根目录新建 .babelrc 文件，输入以下内容
```json
{
"presets": ["es2015", "stage-2", "stage-3"]
}
```
- 在 truffle-config.js 添加以下：
```js
require('babel-register');
require('babel-polyfill');
```
- 环境变量文件，允许管理环境变量
- 根目录创建 .env 文件
- 在 truffle-config.js 添加以下：
```js
require('dotenv').config();
```
- 整理文件目录，拆分 react 和 智能合约 目录
- 在 truffle-config.js 中 "networks:{}," 代码之后添加以下：并整理项目文件夹
```js
contracts_directory: './src/contracts',
contracts_build_directory: './src/abis/',
```
- git 忽略文件
添加 .env 的忽略，如：
```
# See https://help.github.com/articles/ignoring-files/ for more about ignoring files.
.env
.env.local
```
## 4. 冒烟测试
需要开发两个合约
- 一个 ERC20 代币合约
- 加密货币交易合约
### 4.1 代币合约
- 在 contracts 文件夹中创建 Token.sol

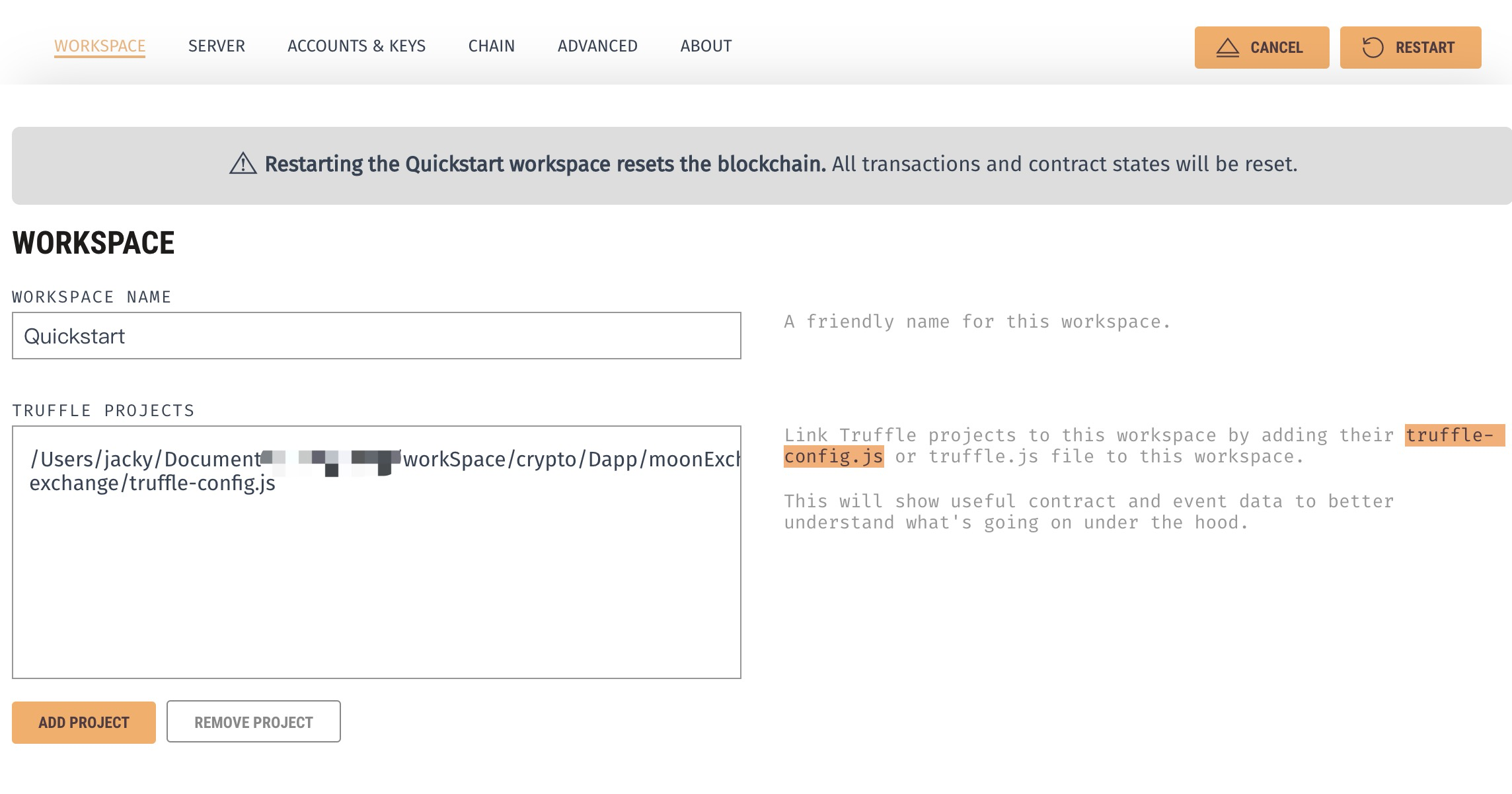

- 启动 ganache，在 truffle-config.js 中添加 ganache 本地网络
```js
networks: {
development: {
host: "127.0.0.1",
port: 8545,
network_id: "*"
},
},
```
- 在 truffle-config.js 中，配置编译器
```js
// Configure your compilers
compilers: {
solc: {
version: "0.8.17", // Fetch exact version from solc-bin (default: truffle's version)
// docker: true, // Use "0.5.1" you've installed locally with docker (default: false)
settings: { // See the solidity docs for advice about optimization and evmVersion
optimizer: {
enabled: true,
runs: 200
},
// evmVersion: "byzantium"
}
}
}
```
- 编译
```bash
truffle compile
```
## 5. 代币智能合约
### 5.1 部署合约并测试
- 在 contracts 文件夹中添加 Token.sol
```solidity
/ SPDX-License-Identifier: MIT
pragma solidity ^0.8.7;
ontract Token{
// token name
string public name = "KaspaE";
string public symbol = "KSE";
// token 精度
uint public decimals = 18;
// 当前合约的token总量
uint public totalSupply;
constructor() {
totalSupply = 100000000 * (10 ** decimals);
}
}
```
- 在 test 文件夹中添加 Token.test.js
```js
const Token = artifacts.require('./Token')
require('chai')
.use(require('chai-as-promised'))
.should()
// 合同函数
contract('Token', (accounts) => {
const name = 'KaspaE'
const symbol = 'KSE'
const decimals = '18'
const totalSupply = '100000000000000000000000000'
let token
beforeEach(async () => {
token = await Token.new()
})
describe('deployment', () => {
it('tracks the name', async () => {
const result = await token.name()
result.should.equal(name)
})
it('tracks the symbol', async () => {
const result = await token.symbol()
result.should.equal(symbol)
})
it('tracks the decimals', async () => {
const result = await token.decimals()
result.toString().should.equal(decimals)
})
it('tracks the totalSupply', async () => {
const result = await token.totalSupply()
result.toString().should.equal(totalSupply)
})
})
})
```
- 进行测试
```bash
truffle test
```
输出测试结果：
```bash
Using network 'development'.
Compiling your contracts...
===========================
> Compiling ./src/contracts/Token.sol
> Artifacts written to /var/folders/84/d1j8r9m90rggg4b5vrwhck_m0000gn/T/test--52176-p1Vu9UNthx8j
> Compiled successfully using:
- solc: 0.8.17+commit.8df45f5f.Emscripten.clang
Contract: Token
deployment
✔ tracks the name (126ms)
✔ tracks the symbol (115ms)
✔ tracks the decimals (170ms)
✔ tracks the totalSupply (49ms)
4 passing (3s)
```
### 5.2 总供应量分发测试
- 总供应量分发给部署者
- 在 Token.sol 中添加账单映射，及构造方法中分发
```solidity
// more code ...
// 账本映射: 地址/余额
mapping(address => uint) public balanceOf;
constructor() {
totalSupply = 100000000 * (10 ** decimals);
balanceOf[msg.sender] = totalSupply;
}
// more code ...
```
- 在 Token.test.js 中添加测试单元
```js
// 合同函数
contract('Token', ([deployer]) => {
it('assigns the total supply to the deployer', async () => {
const result = await token.balanceOf(deployer)
result.toString().should.equal(totalSupply)
})
}
```
### 5.3 发送代币并测试
- 发送并测试
- solidity 代码库
- OpenZeppelin 各种安全的代码库
- 在 Token.sol 中引入 SafeMath.sol
```solidity
import "@openzeppelin/contracts/utils/math/SafeMath.sol";
```
合约中使用
```solidity
using SafeMath for uint;
```
- 新增发送方法
```solidity
/**
* 把账户中的余额，由调用者发送到另一个账户中，并向链外汇报事件
*/
function transfer(address _to, uint _value) external returns (bool) {
// 发送者减掉数量
balanceOf[msg.sender] = balanceOf[msg.sender].sub(_value);
// 接受者增加数量
balanceOf[_to] = balanceOf[_to].add(_value);
// emit Transfer(msg.sender, _to, _value);
return true;
}
```
- 单元测试
- 新增 Helpers.js 拆分公共方法 tokens 函数
```js
// wei转换bigNumber
export const tokens = (n) => {
return new web3.utils.toBN(
web3.utils.toWei(n.toString(), 'ether')
)
}
```
- Token.test.js 中单元测试
```js
describe('sending tokens', () => {
it('transfers token balances', async () => {
let balanceOf
// Before transfer
balanceOf = await token.balanceOf(deployer)
console.log("deployer balance before transfer", balanceOf.toString())
balanceOf = await token.balanceOf(receiver)
console.log("receiver balance before transfer", balanceOf.toString())
// Transfer
await token.transfer(receiver, tokens(100), {from: deployer})
// After transfer
balanceOf = await token.balanceOf(deployer)
console.log("deployer balance after transfer", balanceOf.toString())
balanceOf = await token.balanceOf(receiver)
console.log("receiver balance after transfer", balanceOf.toString())
})
})
```
- 发送事件并测试
- 定义事件
起初为了方便循序渐进学，先自己定义事件，后续中可以继承 IERC20.sol 接口
```solidity
event Transfer(address indexed from, address indexed to, uint value);
```
- 在 transfer 方法中添加事件
```solidity
emit Transfer(msg.sender, _to, _value);
```
- 添加测试单元
```js
// 发送‘发送代币’事件
it('emits a transfer event', async () => {
const log = result.logs[0]
log.event.should.eq('Transfer')
const event = log.args
event.from.toString().should.eq(deployer, 'from is correct')
event.to.toString().should.eq(receiver, 'receiver is correct')
event.value.toString().should.eq(amount.toString(), 'value is correct')
})
```
- 发送代币失败测试
- 在 transfer 函数中添加 require 条件
```solidity
// 不能向0地址发送
require(_to != address(0), 'address is invalid');
// 余额不足校验
require(balanceOf[msg.sender] >= _value, 'insufficient balances');
```
- 添加测试代码
- 重构代码，分别测试成功和失败
```solidity
// 订阅测试成功
describe('success', () => {
beforeEach(async () => {
amount = tokens(100)
// Transfer
result = await token.transfer(receiver, amount, {from: deployer})
})
// 发送代币余额
// more code ...
// 发送‘发送代币’事件
// more code ...
})
// 订阅测试失败
describe('failure', () => {
// more code ...
})
```
- 添加失败测试单元
- Helper.js 中添加常量
```js
export const EVM_REVERT = 'VM Exception while processing transaction: revert'
```
- 失败测试单元
```js
// 订阅测试失败
describe('failure', () => {
// 余额不足测试
it('rejects insufficient balances', async() => {
let invalidAmount
invalidAmount = tokens(10000000000) // greater than totalSupply
await token.transfer(receiver, invalidAmount, {from: deployer}).should.be.rejectedWith(EVM_REVERT)
invalidAmount = tokens(10)
// receiver has no tokens
await token.transfer(deployer, invalidAmount, {from: receiver}).should.be.rejectedWith(EVM_REVERT)
})
// 无效接受者,不能想0地址发送代币（不能销毁）
it('rejects invalid receipients', async() => {
await token.transfer(0x0, amount, {from: deployer}).should.be.rejectedWith('invalid address')
})
})
```
- 测试后输出
```bash
Compiling your contracts...
===========================
> Compiling ./src/contracts/Token.sol
> Compiling @openzeppelin/contracts/token/ERC20/IERC20.sol
> Compiling @openzeppelin/contracts/utils/math/SafeMath.sol
> Artifacts written to /var/folders/84/d1j8r9m90rggg4b5vrwhck_m0000gn/T/test--59871-VrC7wgcHIuj4
> Compiled successfully using:
- solc: 0.8.17+commit.8df45f5f.Emscripten.clang
Contract: Token
deployment
✔ tracks the name (77ms)
✔ tracks the symbol
✔ tracks the decimals (43ms)
✔ tracks the totalSupply (170ms)
✔ assigns the total supply to the deployer (116ms)
sending tokens
success
✔ transfers token balances (242ms)
✔ emits a transfer event
failure
✔ rejects insufficient balances (3143ms)
✔ rejects invalid receipients
9 passing (10s)
```
### 5.4 批准发送并测试
- 添加 Approval 批准事件
```solidity
event Approval(address indexed owner, address indexed spender, uint value);
```
- 添加 approve 批准方法
```solidity
/**
* name: approve 批准
* desc: 把调用者msg.send账户中数量为_value的代币批准给另一个账户_spender
* param {address} _spender 发送至的账户
* param {uint} _value 数量
* return {bool}
*/
function approve(address _spender, uint _value) external returns (bool) {
// 不能向0地址发送
require(_spender != address(0), 'address is invalid');
allowance[msg.sender][_spender] = _value;
emit Approval(msg.sender, _spender, _value);
return true;
}
```
- 添加测试单元
```js
// 批准发送代币
describe('approving tokens', () => {
let amount
let result
beforeEach(async () => {
amount = tokens(100)
result = await token.approve(exchange, amount, { from: deployer })
})
describe('success', () => {
// 批准发送
it('allocates an allowance for delegate token spending on exchange', async () => {
const allowance = await token.allowance(deployer, exchange)
allowance.toString().should.eq(amount.toString())
})
// 发送‘批准发送’事件
it('emits an Approval event', async () => {
const log = result.logs[0]
log.event.should.eq('Approval')
const event = log.args
event.owner.toString().should.eq(deployer, 'owner is correct')
event.spender.toString().should.eq(exchange, 'spender is correct')
event.value.toString().should.eq(amount.toString(), 'value is correct')
})
})
describe('failure', () => {
// 无效接受者,不能想0地址发送代币（不能销毁）
it('rejects invalid', async () => {
await token.approve(0x0, amount, { from: deployer }).should.be.rejectedWith('invalid address')
})
})
})
```
### 5.5 代理发送代币并测试
- 重构代码
- 新建 __transfer()_ 函数，用于提取公共方法
```solidity
/**
* name: 发送代币
* desc: 把账户中的余额，由调用者发送到另一个账户中
* param {address} _from 发送方
* param {address} _to 接收方
* param {uint} _value 数量
*/
function _transfer(address _from, address _to, uint _value) internal {
// 不能向0地址发送
require(_to != address(0), 'address is invalid');
// 发送者减掉数量
balanceOf[_from] = balanceOf[_from].sub(_value);
// 接受者增加数量
balanceOf[_to] = balanceOf[_to].add(_value);
emit Transfer(_from, _to, _value);
}
```
- 更改 transfer() 函数
```solidity
function transfer(address _to, uint _value) external returns (bool) {
// 余额不足校验
require(balanceOf[msg.sender] >= _value, 'insufficient balances');
_transfer(msg.sender, _to, _value);
return true;
}
```
- 新建 transferFrom() 函数
```solidity
/**
* name: transferFrom
* desc: 向另一个合约存款的时候，另一个合约需要调用 transferFrom 把token拿到它的合约中
* param {address} _from
* param {address} _to
* param {uint} _value
* return {bool}
*/
function transferFrom(address _from, address _to, uint _value) external returns (bool) {
// 小于等于拥有数量
require(_value <= balanceOf[_from]);
// 小于等于批准数量
require(_value <= allowance[_from][msg.sender]);
_transfer(_from, _to, _value);
allowance[_from][msg.sender] = allowance[_from][msg.sender].sub(_value);
return true;
}
```
- 添加测试单元
```js
// 代理发送代币
describe('delegated token transfers', () => {
let amount
let result
beforeEach(async () => {
amount = tokens(100)
// 部署者先批准 100 个代币到交易所，然后由交易所调用 transferFrom 函数，发送至接收者
await token.approve(exchange, amount, {from: deployer})
})
// 订阅测试成功
describe('success', () => {
beforeEach(async () => {
amount = tokens(100)
// Transfer
result = await token.transferFrom(deployer, receiver, amount, { from: exchange })
})
// 发送代币余额
it('transfers token balances', async () => {
let balanceOf
// After transfer
balanceOf = await token.balanceOf(deployer)
balanceOf.toString().should.equal(tokens(99999900).toString())
balanceOf = await token.balanceOf(receiver)
balanceOf.toString().should.equal(tokens(100).toString())
})
// 重置账单
it('rests the allowance', async () => {
const allowance = await token.allowance(deployer, exchange)
allowance.toString().should.eq('0')
})
// 发送‘发送代币’事件
it('emits a transfer event', async () => {
const log = result.logs[0]
log.event.should.eq('Transfer')
const event = log.args
event.from.toString().should.eq(deployer, 'from is correct')
event.to.toString().should.eq(receiver, 'receiver is correct')
event.value.toString().should.eq(amount.toString(), 'value is correct')
})
})
// 订阅测试失败
describe('failure', () => {
// 余额不足测试
it('rejects insufficient balances', async () => {
let invalidAmount
invalidAmount = tokens(10000000000) // greater than totalSupply
await token.transferFrom(deployer, receiver, invalidAmount, { from: exchange }).should.be.rejectedWith(EVM_REVERT)
})
// 无效接受者,不能想0地址发送代币（不能销毁）
it('rejects invalid receipients', async () => {
await token.transferFrom(deployer, 0x0, amount, { from: exchange }).should.be.rejectedWith('invalid address')
})
})
})
```
### 5.6 继承 IERC接口
- 引入 IERC20.sol
```solidity
import "@openzeppelin/contracts/token/ERC20/IERC20.sol";
```
- 修改代码
```solidity
contract Token is IERC20 {}
```
删除两个事件定义
## 6. Cryptocurrency Exchange Smart Contract
### 6.1 create smart contract
- 新增 Exchange.sol
```solidity
/**
* Author: GKing
* Date: 2022-11-19 08:45:25
* LastEditors: GKing
* LastEditTime: 2022-11-19 14:59:13
* Description: 交易所合约
* - Deposit & Withdraw Funds 存入提取资金
* - Manage Orders - Make or Cancel 管理订单
* - Handle Trades - Charge fees 交易
* TODO:
* Set the fee account
* Deposit Ether
* Withdraw Ether
* Deposit tokens
* Withdraw tokens
* Check balances
* Make order
* Cancel order
* Fill order
*/
// SPDX-License-Identifier: MIT
pragma solidity ^0.8.7;
import "./Token.sol";
import "@openzeppelin/contracts/utils/math/SafeMath.sol";
contract Exchange {
using SafeMath for uint256;
// 收取交易所交易费的账户
address public feeAccount;
// 交易费率
uint public feePercent;
// 交易所代币账单 关系 token地址 => (用户地址 => 数量)
mapping(address => mapping(address => uint)) public tokens;
constructor(address _feeAccount, uint _feePercent) {
feeAccount = _feeAccount;
feePercent = _feePercent;
}
```
- 部署测试
新增 Exchange.test.js
```js
/**
* @Author: GKing
* @Date: 2022-11-19 10:54:40
* @LastEditors: GKing
* @LastEditTime: 2022-11-19 15:05:26
* @Description:
* @TODO:
*/
import { tokens, EVM_REVERT } from './Helpers'
const Token = artifacts.require('./Token')
const Exchange = artifacts.require('./Exchange')
require('chai')
.use(require('chai-as-promised'))
.should()
// 合同函数
contract('Exchange', ([deployer, feeAccount, user1]) => {
let token
let exchange
const feePercent = 10
beforeEach(async () => {
// 部署代币合约
token = await Token.new()
// 发送代币
token.transfer(user1, tokens(100), {from: deployer})
// 部署交易所合约，通过构造函数传参
exchange = await Exchange.new(feeAccount, feePercent)
})
// 单元测试部署
describe('deployment', () => {
// 跟踪 account
it('tracks the fee account', async () => {
const result = await exchange.feeAccount()
result.should.eq(feeAccount)
})
// 跟踪 feePercent
it('tracks the fee feePercent', async () => {
const result = await exchange.feePercent()
result.toString().should.eq(feePercent.toString())
})
})
})
```
### 6.2 Deposit tokens
- depositToken function
```solidity
/**
* name: depositToken
* desc: 存入代币
* param {address} _token 代币地址
* param {uint} _amount 数量
* return {*}
*/
function depositToken(address _token, uint _amount) public {
// don't allow Ether deposits
require(_token != ETHER);
// 发送代币到本合约（交易所）
require(Token(_token).transferFrom(msg.sender, address(this), _amount));
// 管理存款 -> 更新余额
tokens[_token][msg.sender] = tokens[_token][msg.sender].add(_amount);
// 发送事件
emit Deposit(_token, msg.sender, _amount, tokens[_token][msg.sender]);
}
```
- describe depositing tokens
```js
// 存款单元测试
describe('depositing tokens', () => {
let result
let amount
describe('success', () => {
beforeEach(async () => {
amount = tokens(10)
await token.approve(exchange.address, amount, { from: user1 })
result = await exchange.depositToken(token.address, amount, { from: user1 })
})
it('tracks the token desposit', async () => {
let balance
// 校验token合约内，交易所下有多少代币
balance = await token.balanceOf(exchange.address)
balance.toString().should.eq(amount.toString())
// 校验exchange合约内，用户有多少代币
balance = await exchange.tokens(token.address, user1)
balance.toString().should.eq(amount.toString())
})
// 发送'存款'事件
it('emits a Deposit event', async () => {
const log = result.logs[0]
log.event.should.eq('Deposit')
const event = log.args
event.token.should.eq(token.address, 'token is correct')
event.user.should.eq(user1, 'user is correct')
event.amount.toString().should.eq(tokens(10).toString(), 'amount is correct')
event.balance.toString().should.eq(tokens(10).toString(), 'balance is correct')
})
})
describe('failure', () => {
it('rejects Ehter deposits', async() => {
await exchange.depositToken(ETHER_ADDRESS, tokens(10), {from: user1}).should.be.rejectedWith(EVM_REVERT)
})
it('fails when no tokens are approved', async () => {
await exchange.depositToken(token.address, tokens(10), {from: user1}).should.be.rejectedWith(EVM_REVERT)
})
})
})
```
### 6.3 Deposit Ether
- depositEther function
```solidity
/**
* name: depositEther
* desc: 给交易所空白地址发送eth
* return {*}
*/
function depositEther() payable public {
tokens[ETHER][msg.sender] = tokens[ETHER][msg.sender].add(msg.value);
emit Deposit(ETHER, msg.sender, msg.value, tokens[ETHER][msg.sender]);
}
```
- Describe depositing Ether
```js
// 存款eth
describe('depositing ehters', async () => {
let amount
let result
beforeEach(async () => {
amount = ethers(1)
result = await exchange.depositEther({from: user1, value: amount})
})
it('tracks ether deposits', async () => {
const balance = await exchange.tokens(ETHER_ADDRESS, user1)
balance.toString().should.eq(amount.toString())
})
// 发送'存款'事件
it('emits a Deposit ether event', async () => {
const log = result.logs[0]
log.event.should.eq('Deposit')
const event = log.args
event.token.should.eq(ETHER_ADDRESS, 'ether address is correct')
event.user.should.eq(user1, 'user is correct')
event.amount.toString().should.eq(amount.toString(), 'amount is correct')
event.balance.toString().should.eq(amount.toString(), 'balance is correct')
})
})
```
### 6.4 Withdraw Ethers
- withdrawEthers function
```solidity
/**
* name: withdrawEthers
* desc: Withdraw Ethers
* param {uint} _amount
* return {*}
*/
function withdrawEthers(uint _amount) public {
require(tokens[ETHER][msg.sender] >= _amount, 'insufficient balances');
tokens[ETHER][msg.sender] = tokens[ETHER][msg.sender].sub(_amount);
payable(msg.sender).transfer(_amount);
emit Withdraw(ETHER, msg.sender, _amount, tokens[ETHER][msg.sender]);
}
```
- Describe withdrawing Ethers
```js
// withdraw Ethers test
describe('withdrawing Ethers', async () => {
let result
let amount
beforeEach(async () => {
amount = ethers(1)
// Deposit Ethers first
await exchange.depositEther({from: user1, value:amount})
})
describe('success', async () => {
beforeEach(async () => {
// withdraw Ether
result = await exchange.withdrawEthers(amount, {from: user1})
})
it('withdraw Ether funds', async () => {
const balance = await exchange.tokens(ETHER_ADDRESS, user1)
balance.toString().should.eq('0')
})
// 发送'存款'事件
it('emits a "Withdraw" ether event', async () => {
const log = result.logs[0]
log.event.should.eq('Withdraw')
const event = log.args
event.token.should.eq(ETHER_ADDRESS, 'ether address is correct')
event.user.should.eq(user1, 'user is correct')
event.amount.toString().should.eq(amount.toString(), 'amount is correct')
event.balance.toString().should.eq('0', 'balance is correct')
})
})
describe('failure', async () => {
it('rejects withdraw for insufficient balances', async () => {
await exchange.withdrawEthers(ethers(1000), {from: user1}).should.be.rejectedWith(EVM_REVERT)
})
})
})
```
### 6.5 Withdraw tokens
- withdrawTokens function
```solidity
/**
* name: withdrawTokens
* desc: Withdraw Tokens
* param {address} _token
* param {uint} _amount
* return {*}
*/
function withdrawTokens(address _token, uint _amount) public {
require(_token != ETHER, 'Do not withdraw Ether');
require(tokens[_token][msg.sender] >= _amount, 'Insufficient balances');
tokens[_token][msg.sender] = tokens[_token][msg.sender].sub(_amount);
require(Token(_token).transfer(msg.sender, _amount));
emit Withdraw(_token, msg.sender, _amount, tokens[_token][msg.sender]);
}
```
- Describe withdrawing tokens
```js
// withdraw Ethers test
describe('withdrawing tokens', async () => {
let result
let amount
beforeEach(async () => {
amount = tokens(10)
// Approve tokens
await token.approve(exchange.address, amount, {from: user1})
// Deposit tokens
await exchange.depositToken(token.address, amount, {from: user1})
})
describe('success', async () => {
beforeEach(async () => {
// Withdraw tokens
result = await exchange.withdrawTokens(token.address, amount, {from: user1})
})
it('withdraw tokens funds', async () => {
const balance = await exchange.tokens(token.address, user1)
balance.toString().should.eq('0')
})
// 发送'存款'事件
it('emits a "Withdraw" tokens event', async () => {
const log = result.logs[0]
log.event.should.eq('Withdraw')
const event = log.args
event.token.should.eq(token.address, 'ether address is correct')
event.user.should.eq(user1, 'user is correct')
event.amount.toString().should.eq(amount.toString(), 'amount is correct')
event.balance.toString().should.eq('0', 'balance is correct')
})
})
describe('failure', async () => {
it('rejects withdraw for insufficient balances', async () => {
await exchange.withdrawTokens(token.address, tokens(1000), {from: user1}).should.be.rejectedWith(EVM_REVERT)
})
it('rejects Ethers withdraw', async () => {
await exchange.withdrawTokens(ETHER_ADDRESS, tokens(1000), {from: user1}).should.be.rejectedWith(EVM_REVERT)
})
})
})
```
### 6.6 Check user balance
- balanceOf function
```solidity
/**
* name: balanceOf
* desc: user tokens balance
* param {address} _tokenAdr
* param {address} _userAdr
* return {*}
*/
function balanceOf(address _tokenAdr, address _userAdr) public view returns (uint) {
return tokens[_tokenAdr][_userAdr];
}
```
- Describe balanceOf
```js
describe('check balanceOf', async () => {
beforeEach(async () => {
await exchange.depositEther({from: user1, value: ethers(1)})
})
it('tracks user balance', async() => {
const result = await exchange.balanceOf(ETHER_ADDRESS, user1)
result.toString().should.eq(ethers(1).toString())
})
})
```
### 6.7 Create orders
- order model
```solidity
// Order model
struct _Order {
uint id;
address userAdr;
address tokenGetAdr;
uint amountGet;
address tokenGiveAdr;
uint amountGive;
uint timestamp;
}
```
- Order event
```solidity
event Order (
uint id,
address userAdr,
address tokenGetAdr,
uint amountGet,
address tokenGiveAdr,
uint amountGive,
uint timestamp
);
```
- createOrder function
```solidity
/**
* name: createOrder
* desc: Create order
* param {address} _tokenGetAdr
* param {uint} _amountGet
* param {address} _tokenGiveAdr
* param {uint} _amountGive
* return {*}
*/
function createOrder(address _tokenGetAdr, uint _amountGet, address _tokenGiveAdr, uint _amountGive) public {
orderCount = orderCount.add(1);
orders[orderCount] = _Order(orderCount, msg.sender, _tokenGetAdr, _amountGet, _tokenGiveAdr, _amountGive, block.timestamp);
emit Order(orderCount, msg.sender, _tokenGetAdr, _amountGet, _tokenGiveAdr, _amountGive, block.timestamp);
}
```
- Describe create order and emit "Order" event
```js
describe('making orders', async () => {
let result
let amountToken
let amountEth
beforeEach(async () => {
amountToken = tokens(1)
amountEth = ethers(1)
result = await exchange.createOrder(token.address, amountToken, ETHER_ADDRESS, amountEth, {from: user1})
})
it('tracks the new order', async() => {
const orderCount = await exchange.orderCount()
orderCount.toString().should.eq('1')
const order = await exchange.orders(orderCount.toString())
order.id.toString().should.eq('1')
order.userAdr.should.eq(user1, 'userAdr is correct')
order.tokenGetAdr.should.eq(token.address, 'tokenGetAdr is correct')
order.amountGet.toString().should.eq(amountToken.toString(), 'amountGet is correct')
order.tokenGiveAdr.toString().should.eq(ETHER_ADDRESS, 'tokenGiveAdr is correct')
order.amountGive.toString().should.eq(amountEth.toString(), 'amountGive is correct')
order.timestamp.toString().length.should.be.at.least(1, 'timestamp is correct')
})
it('emit an "Order" event', async() => {
const log = result.logs[0]
log.event.should.eq('Order')
const event = log.args
event.id.toString().should.eq('1')
event.userAdr.should.eq(user1, 'userAdr is correct')
event.tokenGetAdr.should.eq(token.address, 'tokenGetAdr is correct')
event.amountGet.toString().should.eq(amountToken.toString(), 'amountGet is correct')
event.tokenGiveAdr.toString().should.eq(ETHER_ADDRESS, 'tokenGiveAdr is correct')
event.amountGive.toString().should.eq(amountEth.toString(), 'amountGive is correct')
event.timestamp.toString().length.should.be.at.least(1, 'timestamp is correct')
})
})
```
### 6.8 Cancel orders
- Cancelled order mapping
```solidity
mapping(uint => bool) public ordersCancelled;
```
- Cancel event
```solidity
event Cancel (
uint id,
address userAdr,
address tokenGetAdr,
uint amountGet,
address tokenGiveAdr,
uint amountGive,
uint timestamp
);
```
- cancelOrder function
```solidity
/**
* name: cancelOrder
* desc: Cancel order with order id
* param {uint} _id
* return {*}
*/
function cancelOrder(uint _id) public {
_Order storage _order = orders[_id];
require(_order.userAdr == msg.sender, 'not your order');
require(_order.id == _id, 'wrong order id');
ordersCancelled[_id] = true;
emit Cancel(_order.id, msg.sender, _order.tokenGetAdr, _order.amountGet, _order.tokenGiveAdr, _order.amountGive, block.timestamp);
}
```
- Describe cancelling orders
```js
describe('cancelling order', async () => {
let result
describe('success', async () => {
beforeEach(async () => {
result = await exchange.cancelOrder(1, {from: user1})
})
it('update cancelled order', async () => {
const orderCancelled = await exchange.ordersCancelled(1)
orderCancelled.should.eq(true)
})
it('emit an "Cancel" event', async() => {
const log = result.logs[0]
log.event.should.eq('Cancel')
const event = log.args
event.id.toString().should.eq('1', 'id is correct')
event.userAdr.should.eq(user1, 'userAdr is correct')
event.tokenGetAdr.should.eq(token.address, 'tokenGetAdr is correct')
event.amountGet.toString().should.eq(amountToken.toString(), 'amountGet is correct')
event.tokenGiveAdr.toString().should.eq(ETHER_ADDRESS, 'tokenGiveAdr is correct')
event.amountGive.toString().should.eq(amountEth.toString(), 'amountGive is correct')
event.timestamp.toString().length.should.be.at.least(1, 'timestamp is correct')
})
})
describe('failure', async () => {
it('tacks invalid id', async () => {
const invalidId = 9999
await exchange.cancelOrder(invalidId, {from: user1}).should.be.rejectedWith(EVM_REVERT)
})
it('tacks other user cancel my order', async () => {
await exchange.cancelOrder(1, {from: user2}).should.be.rejectedWith(EVM_REVERT)
})
})
})
```
### 6.9 Fill orders
- Filled orders mapping
```solidity
mapping(uint => bool) public ordersFilled;
```
- Trade event
```solidity
event Trade (
uint id,
address userAdr,
address tokenGetAdr,
uint amountGet,
address tokenGiveAdr,
uint amountGive,
address userFillAdr,
uint timestamp
);
```
- fillOrder function
```solidity
/**
* name: fillOrder
* desc: Fill order with id
* param {uint} _id
* return {*}
*/
function fillOrder(uint _id) public {
require(_id > 0 && _id <= orderCount, 'invalid order id');
require(!ordersFilled[_id], 'order already filled');
require(!ordersCancelled[_id], 'order already cancelled');
// Fetch the Order
_Order storage _order = orders[_id];
_trade(_order.id, _order.userAdr, _order.tokenGetAdr, _order.amountGet, _order.tokenGiveAdr, _order.amountGive);
// Mark order as filled
ordersFilled[_id] = true;
}
function _trade(uint _orderId, address _userAdr, address _tokenGetAdr, uint _amountGet, address _tokenGiveAdr, uint _amountGive) internal {
// Fee paid by the user that fills the order, a.k.a. msg.sender.
// Fee deducted from _amountGet
uint _feeAmount = _amountGive.mul(feePercent).div(100);
// Exchange Trade
tokens[_tokenGetAdr][msg.sender] = tokens[_tokenGetAdr][msg.sender].sub(_amountGet.add(_feeAmount));
tokens[_tokenGetAdr][_userAdr] = tokens[_tokenGetAdr][_userAdr].add(_amountGet);
// Charge fees
tokens[_tokenGetAdr][feeAccount] = tokens[_tokenGetAdr][feeAccount].add(_feeAmount);
tokens[_tokenGiveAdr][_userAdr] = tokens[_tokenGiveAdr][_userAdr].sub(_amountGive);
tokens[_tokenGiveAdr][msg.sender] = tokens[_tokenGiveAdr][msg.sender].add(_amountGive);
// Emit trade event
emit Trade(_orderId, _userAdr, _tokenGetAdr, _amountGet, _tokenGiveAdr, _amountGive, msg.sender, block.timestamp);
}
```
- Describe fill orders
```js
describe('order actions', async () => {
let amountToken
let amountEth
beforeEach(async () => {
amountToken = tokens(1)
amountEth = ethers(1)
// user1 deposits ether only
await exchange.depositEther({from: user1, value: amountEth})
// give token to user2
await token.transfer(user2, tokens(100), {from: deployer})
// user2 deposit tokens only
await token.approve(exchange.address, tokens(2), {from: user2})
await exchange.depositToken(token.address, tokens(2), {from: user2})
// user1 makes an order to buy tokens with Ether
await exchange.createOrder(token.address, amountToken, ETHER_ADDRESS, amountEth, {from: user1})
})
describe('filling order', async () => {
let result
describe('success', async () => {
beforeEach(async () => {
// user2 fills order
result = await exchange.fillOrder(1, {from: user2})
})
it('executes the trade & charge fees', async () => {
let balance
balance = await exchange.balanceOf(token.address, user1)
balance.toString().should.eq(amountToken.toString(), 'user1 received tokens')
balance = await exchange.balanceOf(ETHER_ADDRESS, user2)
balance.toString().should.eq(amountEth.toString(), 'user2 received Ether')
balance = await exchange.balanceOf(ETHER_ADDRESS, user1)
balance.toString().should.eq('0', 'user1 usee 1 Ether, has no Ether')
balance = await exchange.balanceOf(token.address, user2)
balance.toString().should.eq(tokens(0.9).toString(), 'user2 tokens deducted with fee applied')
const feeAccount = await exchange.feeAccount()
balance = await exchange.balanceOf(token.address, feeAccount)
balance.toString().should.eq(tokens(0.1).toString(), 'feeAccount received fee')
})
it('update filled order', async () => {
const orderFilled = await exchange.ordersFilled(1)
orderFilled.should.eq(true)
})
it('emit an "Trade" event', async() => {
const log = result.logs[0]
log.event.should.eq('Trade')
const event = log.args
event.id.toString().should.eq('1', 'id is correct')
event.userAdr.should.eq(user1, 'userAdr is correct')
event.tokenGetAdr.should.eq(token.address, 'tokenGetAdr is correct')
event.amountGet.toString().should.eq(amountToken.toString(), 'amountGet is correct')
event.tokenGiveAdr.should.eq(ETHER_ADDRESS, 'tokenGiveAdr is correct')
event.amountGive.toString().should.eq(amountEth.toString(), 'amountGive is correct')
event.userFillAdr.should.eq(user2, 'userFillAdr is correct')
event.timestamp.toString().length.should.be.at.least(1, 'timestamp is correct')
})
})
describe('failure', async () => {
it('reject invalid id', async () => {
const invalidId = 9999
await exchange.cancelOrder(invalidId, {from: user2}).should.be.rejectedWith(EVM_REVERT)
})
it('reject already filled order', async () => {
// Fill the order
await exchange.fillOrder(1, {from: user2}).should.be.fulfilled
// Try to file again
await exchange.fillOrder(1, {from: user2}).should.be.rejectedWith(EVM_REVERT)
})
it('reject cancelled order', async () => {
// Cancel the order
await exchange.cancelOrder(1, {from: user1}).should.be.fulfilled
// Try to fill the order
await exchange.fillOrder(1, {from: user2}).should.be.rejectedWith(EVM_REVERT)
})
})
})
describe('cancelling order', async () => {
let result
describe('success', async () => {
beforeEach(async () => {
result = await exchange.cancelOrder(1, {from: user1})
})
it('update cancelled order', async () => {
const orderCancelled = await exchange.ordersCancelled(1)
orderCancelled.should.eq(true)
})
it('emit an "Cancel" event', async() => {
const log = result.logs[0]
log.event.should.eq('Cancel')
const event = log.args
event.id.toString().should.eq('1', 'id is correct')
event.userAdr.should.eq(user1, 'userAdr is correct')
event.tokenGetAdr.should.eq(token.address, 'tokenGetAdr is correct')
event.amountGet.toString().should.eq(amountToken.toString(), 'amountGet is correct')
event.tokenGiveAdr.should.eq(ETHER_ADDRESS, 'tokenGiveAdr is correct')
event.amountGive.toString().should.eq(amountEth.toString(), 'amountGive is correct')
event.timestamp.toString().length.should.be.at.least(1, 'timestamp is correct')
})
})
describe('failure', async () => {
it('reject invalid id', async () => {
const invalidId = 9999
await exchange.cancelOrder(invalidId, {from: user1}).should.be.rejectedWith(EVM_REVERT)
})
it('reject other user cancel my order', async () => {
await exchange.cancelOrder(1, {from: user2}).should.be.rejectedWith(EVM_REVERT)
})
})
})
})
```
### 6.10 All test output
```bash
Using network 'development'.
Compiling your contracts...
===========================
> Compiling ./src/contracts/Exchange.sol
> Compiling ./src/contracts/Token.sol
> Compiling @openzeppelin/contracts/token/ERC20/IERC20.sol
> Compiling @openzeppelin/contracts/utils/math/SafeMath.sol
> Artifacts written to /var/folders/84/d1j8r9m90rggg4b5vrwhck_m0000gn/T/test--76618-aougZTkMAEDU
> Compiled successfully using:
- solc: 0.8.17+commit.8df45f5f.Emscripten.clang
Contract: Exchange
deployment
✔ tracks the fee account (112ms)
✔ tracks the fee feePercent (101ms)
fallback
✔ revert when ether is sent (778ms)
depositing ehters
✔ tracks ether deposits (111ms)
✔ emits a Deposit ether event
depositing tokens
success
✔ tracks the token desposit (93ms)
✔ emits a "Deposit" event
failure
✔ rejects Ehter deposits (59ms)
✔ fails when no tokens are approved (40ms)
withdrawing Ethers
success
✔ withdraw Ether funds
✔ emits a "Withdraw" ether event
failure
✔ rejects withdraw for insufficient balances (159ms)
withdrawing tokens
success
✔ withdraw tokens funds (55ms)
✔ emits a "Withdraw" tokens event
failure
✔ rejects withdraw for insufficient balances (296ms)
✔ rejects Ethers withdraw (119ms)
check balance
✔ tracks user balance (68ms)
making orders
✔ tracks the new order (153ms)
✔ emit an "Order" event
order actions
filling order
success
✔ executes the trade & charge fees (255ms)
✔ update filled order (41ms)
✔ emit an "Trade" event
failure
✔ reject invalid id (67ms)
✔ reject already filled order (683ms)
✔ reject cancelled order (240ms)
cancelling order
success
✔ update cancelled order
✔ emit an "Cancel" event
failure
✔ reject invalid id (157ms)
✔ reject other user cancel my order (213ms)
29 passing (58s)
```
## 7. Deploy Contracts
### 7.1 Migration
- create 1_Token.js file in migrations folder
```js
const Token = artifacts.require('Token');
module.exports = async function(deployer) {
await deployer.deploy(Token);
};
```
- Create 2_Exchange.js file in migrations folder
```js
const Exchange = artifacts.require('Exchange');
module.exports = async function(deployer) {
const accounts = await web3.eth.getAccounts();
const feeAccount = accounts[0];
const feePercent = 10;
await deployer.deploy(Exchange, feeAccount, feePercent);
};
```
- Ganache line the project
CONTRACTS -> LINK PROJECT -> ADD PROJECT -> find the 'truffle-config.js' file in project
- Migrate contracts
```bash
sudo truffle migrate --reset
```
### 7.2 Seed exchange orders or other datas
- Create folder "scripts" and create "seed-exchange.js" file
```js
const Token = artifacts.require('Token');
const Exchange = artifacts.require('Exchange');
const ETHER_ADDRESS = '0x0000000000000000000000000000000000000000'
// wei转换bigNumber
const ethers = (n) => {
return new web3.utils.toBN(
web3.utils.toWei(n.toString(), 'ether')
)
}
const tokens = (n) => ethers(n)
const wait = (seconds) => {
const millseconds = seconds * 1000;
return new Promise(resolve => setTimeout(resolve, millseconds))
}
module.exports = async function(callback) {
try {
console.log('script "seed-exchange" is running ...');
// Fetch account from wallet
const accounts = await web3.eth.getAccounts();
console.log('Accounts fetched length :', accounts.length)
// Fetch the deployed token
const token = await Token.deployed();
console.log('Token fetched :', token.address);
// Fetch the deployed exchange
const exchange = await Exchange.deployed();
console.log('Exchange fetched :', exchange.address)
// Give tokens to accounts[1]
const sender = accounts[0];
const receiver = accounts[1];
// 10,000 tokens
let amount = tokens(10000);
await token.transfer(receiver, amount, {from: sender});
console.log(`Transferred ${ amount } tokens from ${ sender } to ${ receiver }`);
// Set up exchange users
const user1 = accounts[0];
const user2 = accounts[1];
// User1 deposits Ether
amount = 1;
await exchange.depositEther({from: user1, value: ethers(amount)})
// User2 approves tokens
amount = 10000;
await token.approve(exchange.address, tokens(amount), {from: user2});
console.log(`Approved ${amount} tokens from ${user2}`);
// User2 deposits tokens
await exchange.depositToken(token.address, tokens(amount), {from: user2});
console.log(`Deposited ${amount} tokens from ${user2}`);
// Seed a Cancelled order
// User1 makes order to get tokens
let result;
let orderId;
result = await exchange.createOrder(token.address, tokens(100), ETHER_ADDRESS, ethers(0.1), {from: user1});
console.log(`Made order from ${user1}`);
// User1 cancels order
orderId = result.logs[0].args.id;
await exchange.cancelOrder(orderId, {from: user1});
console.log(`Cancelled order from ${user1}`);
// Seed filled orders
// User1 makes order
result = await exchange.createOrder(token.address, tokens(100), ETHER_ADDRESS, ethers(0.1), {from: user1});
console.log(`Made order from ${user1}`);
// User2 fills order
orderId = result.logs[0].args.id;
await exchange.fillOrder(orderId, {from: user2});
console.log(`Filled order form ${user2}`);
// Wait 1 second
await wait(1);
// User1 make another order
result = await exchange.createOrder(token.address, tokens(50), ETHER_ADDRESS, ethers(0.01), {from: user1});
console.log(`Made another order from ${user1}`);
// User2 fills another order
orderId = result.logs[0].args.id;
await exchange.fillOrder(orderId, {from: user2});
console.log(`Filled order form ${user2}`);
// Wait 1 second
await wait(1);
// User1 make final order
result = await exchange.createOrder(token.address, tokens(200), ETHER_ADDRESS, ethers(0.15), {from: user1});
console.log(`Made another order from ${user1}`);
// User2 fills final order
orderId = result.logs[0].args.id;
await exchange.fillOrder(orderId, {from: user2});
console.log(`Filled order form ${user2}`);
// Wait 1 second
await wait(1);
// Seed open orders
// User1 makes 10 orders
for (let i = 0; i < 10; i++) {
result = await exchange.createOrder(token.address, tokens(10 * i), ETHER_ADDRESS, ethers(0.01), {from: user1});
console.log(`Made order from ${user1}`);
await wait(1);
}
// User2 makes 10 orders
for (let i = 0; i < 10; i++) {
result = await exchange.createOrder(ETHER_ADDRESS, ethers(0.01), token.address, tokens(10 * i), {from: user2});
console.log(`Made order from ${user2}`);
await wait(1);
}
} catch (error) {
console.log(error);
}
callback();
}
```
- truffle exec the file
```bash
truffle exec ./scripts/seed-exchange.js
```
## 8. Exchange UI
- App.js add UI code
```js
render() {
return (
)
}
```
- web3.js interaction
```js
UNSAFE_componentWillMount(){
this.loaadBlockchainData();
}
async loaadBlockchainData() {
var web3 = new Web3(Web3.givenProvider || "ws://localhost:8545");
const network = await web3.eth.net.getNetworkType();
const networkId = await web3.eth.net.getId();
const accounts = await web3.eth.getAccounts();
const abi = Token.abi;
const tokenAdr = Token.networks[networkId].address;
const token = new web3.eth.Contract(abi, tokenAdr);
const totalSupply = await token.methods.totalSupply().call();
console.log('totalSupply', totalSupply);
}
```
## 9. redux
- Add redux folder and files
- configureStore.js
- Reducers.js
- actions.js
- Interaction.js
- Add selectors.js
## 10. Trade UI
- action.js add filled orders codes
- Reducers.js add filled orders codes
- Selectors.js add filled orders codes
- interaction.js add filled orders codes
## 11. OrderBook
- Add open orders code in selectors.js
```js
const orderBookLoaded = state => cancelledOrdersLoaded(state) && filledOrdersLoaded(state) && allOrdersLoaded(state)
export const orderBookLoadedSelector = createSelector (
orderBookLoaded,
obl => obl
)
// Open orders without filled orders & cancelled orders
const openOrders = state => {
const all = allOrders(state)
const filled = filledOrders(state)
const cancelled = cancelledOrders(state)
const openOrders = reject(all, (order) => {
const orderFilled = filled.some((filledOrder) => filledOrder.id === order.id)
const orderCancelled = cancelled.some((cancelledOrder) => cancelledOrder.id === order.id)
return(orderFilled || orderCancelled)
})
return openOrders
}
export const orderBookSelector = createSelector(
openOrders,
(orders) => {
orders = decorateBookOrders(orders)
// Group order by "orderType", "sell" or "buy"
orders = groupBy(orders, 'orderType')
// Fetch buy orders
const buyOrders = get(orders, 'buy', [])
// Sort buy orders by tokenPrice desc
orders = {
...orders,
buyOrders: buyOrders.sort((a,b) => b.tokenPrice - a.tokenPrice)
}
// Fetch sell orders
const sellOrders = get(orders, 'sell', [])
// Sort sell orders by tokenPrice desc
orders = {
...orders,
sellOrders: sellOrders.sort((a,b) => b.tokenPrice - a.tokenPrice)
}
return orders
}
)
const decorateBookOrders = (orders) => {
return (
orders.map((order) => {
order = decorateOrder(order)
order = decorateBookOrder(order)
return order
})
)
}
const decorateBookOrder = (order) => {
const orderType = order.tokenGiveAdr === ETHER_ADDRESS ? 'buy' : 'sell'
return({
...order,
orderType,
orderTypeClass: (orderType === 'buy' ? GREEN : RED),
orderFillClass: (orderType === 'buy' ? 'sell' : 'buy')
})
}
```
- Add OrderBook component as OrderBook.js file
```js
/**
* @Author: GKing
* @Date: 2022-11-27 10:13:19
* @LastEditors: GKing
* @LastEditTime: 2022-11-27 19:39:34
* @Description:
* @TODO:
*/
import React, { Component } from 'react'
import { connect } from 'react-redux'
import { orderBookLoadedSelector, orderBookSelector } from '../redux/selectors'
import Spinner from './Spinner'
const renderOrder = (order) => {
return (
| {order.tokenAmount} |
{order.tokenPrice} |
{order.etherAmount} |
)
}
const showOrderBook = (props) => {
const { orderBook } = props
return (
| KSMN |
KSMN/ETH |
ETH |
Sell
{orderBook.sellOrders.map((order) => renderOrder(order))}
Buy
{orderBook.buyOrders.map((order) => renderOrder(order))}
)
}
class OrderBook extends Component {
render() {
return (
Order Book
{this.props.orderBookLoaded ? showOrderBook(this.props) : }
)
}
}
function mapStateToProps(state) {
return {
orderBookLoaded: orderBookLoadedSelector(state),
orderBook: orderBookSelector(state)
}
}
export default connect(mapStateToProps)(OrderBook);
```

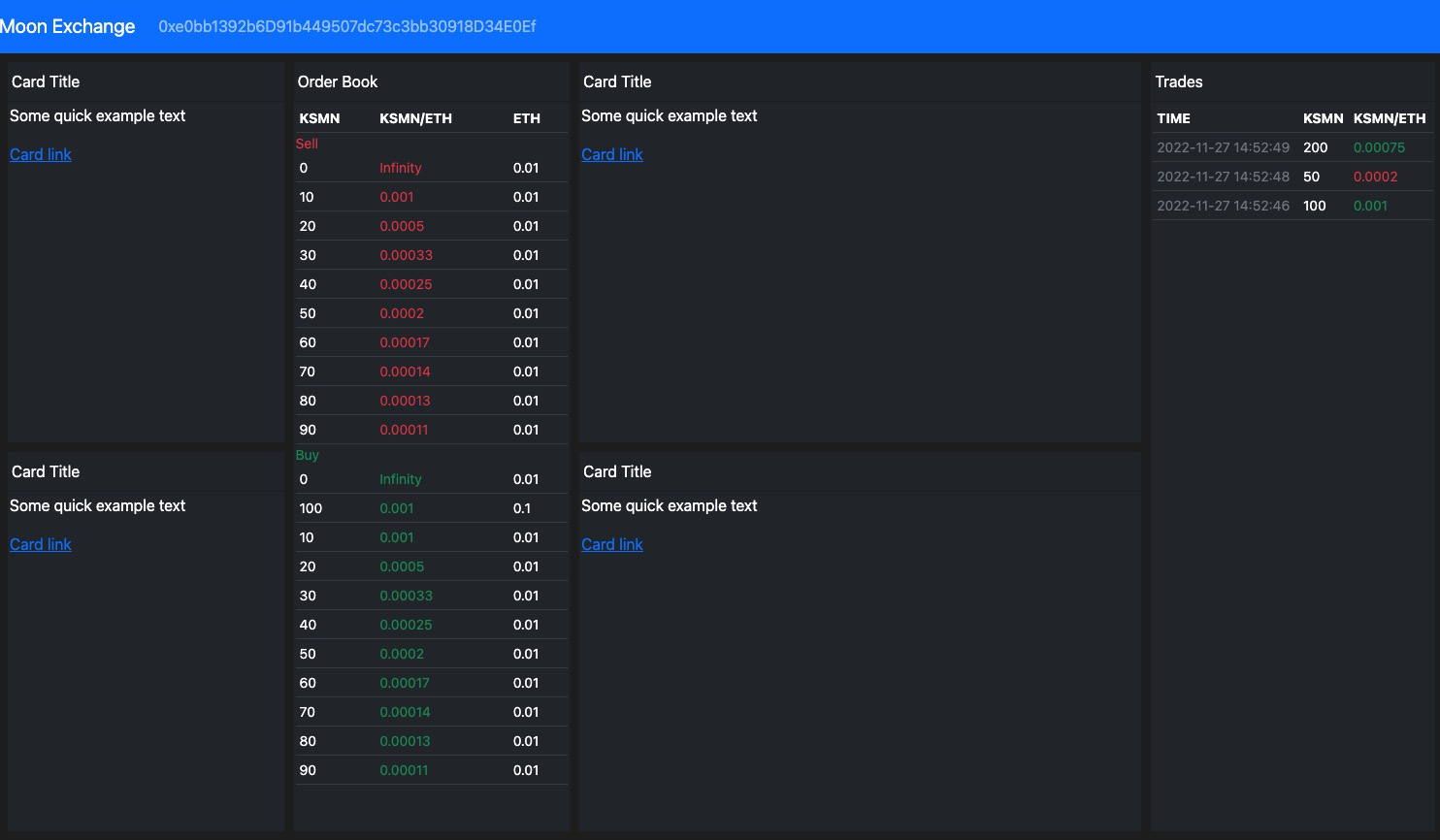

- Run in Chrome
- Debug amount 0
find the "User1 makes 10 orders" and "User2 makes 10 orders" in seed-exchange.js line 131 and 138, the "for" loop "i" begins 0, it should begin 1.
```js
// Seed open orders
// User1 makes 10 orders
for (let i = 1; i < 10; i++) {
result = await exchange.createOrder(token.address, tokens(10 * i), ETHER_ADDRESS, ethers(0.01), {from: user1});
console.log(`Made order from ${user1}`);
await wait(1);
}
// User2 makes 10 orders
for (let i = 1; i < 10; i++) {
result = await exchange.createOrder(ETHER_ADDRESS, ethers(0.01), token.address, tokens(10 * i), {from: user2});
console.log(`Made order from ${user2}`);
await wait(1);
}
```
## 12. My Transaction
- add MyTransactions.js component
- add selectors in selectors.js
## 13. Candle Charts
- APEXChARTS https://apexcharts.com/
Candle Chart
- build datas in selectors.js
```js
export const priceChartLoadedSelector = createSelector(filledOrdersLoaded, loaded => loaded)
export const priceChartSelector = createSelector(
filledOrders,
(orders) => {
orders = orders.sort((a,b) => a.timestamp - b.timestamp)
orders = orders.map((o) => decorateOrder(o))
// Get last 2 orders for final price & price change
let secondLastOrder, lastOrder
[secondLastOrder, lastOrder] = orders.slice(orders.length - 2, orders.length)
// Get last order price
const lastPrice = get(lastOrder, 'tokenPrice', 0)
const secondLastPrice = get(secondLastOrder, 'tokenPrice', 0)
return ({
lastPrice,
lastPriceChange: (lastPrice >= secondLastPrice ? '+' : '-'),
series:[{
data: buildGraphData(orders)
}]
})
}
)
const buildGraphData = (orders) => {
// Group the orders by hour for the graph
orders = groupBy(orders, (o) => moment.unix(o.timestamp).startOf('hour').format())
// Get each hour where data exists
const hours = Object.keys(orders)
// build the graph series
const graphData = hours.map((hour) => {
// Fetch all orders from current hour
const group = orders[hour]
// Calculate price values - open, high, low, close
const open = group[0]
const high = maxBy(group, 'tokenPrice')
const low = minBy(group, 'tokenPrice')
const close = group[group.length - 1]
return({
x: new Date(hour),
y: [open.tokenPrice, high.tokenPrice, low.tokenPrice, close.tokenPrice]
})
})
return graphData
}
```
## 14. Balance
- Load balance UI
- Load balance datas
- Deposit ETH
