# kafka_demo

**Repository Path**: jonie/kafka_demo

## Basic Information

- **Project Name**: kafka_demo
- **Description**: SpringBoot整合Kafka消息队列
- **Primary Language**: Java
- **License**: Not specified
- **Default Branch**: master
- **Homepage**: None
- **GVP Project**: No

## Statistics

- **Stars**: 0
- **Forks**: 2
- **Created**: 2023-03-01
- **Last Updated**: 2023-03-01

## Categories & Tags

**Categories**: Uncategorized

**Tags**: None

## README

## 一。环境准备
windows下安装kafka可以参考这一篇博客：[https://blog.csdn.net/w546097639/article/details/88578635](https://blog.csdn.net/w546097639/article/details/88578635)
## 二。项目搭建
1.在pom.xml文件中引入以下依赖：

```xml
    <!--kafka依赖 -->
     <dependency>
         <groupId>org.springframework.kafka</groupId>
         <artifactId>spring-kafka</artifactId>
     </dependency>
     <dependency>
         <groupId>org.springframework.kafka</groupId>
         <artifactId>spring-kafka-test</artifactId>
         <scope>test</scope>
     </dependency>
```
项目完整pom.xml文件内容如下：

```xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.4</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>kafka_demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>kafka_demo</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>

        <!--kafka依赖 -->
        <dependency>
            <groupId>org.springframework.kafka</groupId>
            <artifactId>spring-kafka</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.kafka</groupId>
            <artifactId>spring-kafka-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--lombok依赖 -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>

        <!--json转换工具包依赖 -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

```
2.配置文件application.yml文件内容如下：

```yml
server:
  port: 8001 #端口号
  servlet:
    context-path: /${spring.application.name} #访问前缀

spring:
  application:
    name: kafka-demo #服务名称
  kafka:
    bootstrap-servers: localhost:9092 #kafka地址
    consumer:
      group-id: order-consumer
      key-deserializer: org.apache.kafka.common.serialization.StringDeserializer #kafkaTemplate.send()方法参数类型
      value-deserializer: org.apache.kafka.common.serialization.StringDeserializer
      auto-offset-reset: earliest
      security:
        protocol: PLAINTEXT
    producer:
      batch-size: 16384
      buffer-memory: 33554432
      retries: 0
      key-deserializer: org.apache.kafka.common.serialization.StringDeserializer
      value-deserializer: org.apache.kafka.common.serialization.StringDeserializer
      properties:
        linger.ms: 1
      security:
        protocol: PLAINTEXT


# kafka自定义消息发送配置
kafka:
  topic:
    kafka-demo-topic: order-event
    kafka-demo-key: order-key
    autoCreate: true


```
3.kafka配置类内容如下：

```java
package com.example.kafka_demo.config;

import org.apache.kafka.clients.admin.NewTopic;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.kafka.annotation.EnableKafka;
import org.springframework.kafka.config.TopicBuilder;

/**
 * @author Keson
 * @version 1.0
 * @description: TODO kafka配置类
 * @date 2021/9/6 15:33
 */
@Configuration
@EnableKafka //开启Kafka监听器标注的端点
public class KafkaConfig {

    @Value("${kafka.topic.kafka-demo-topic}")
    private String orderTopic;

    @Bean
    //条件匹配，如果配置kafka.topic.autoCreate=true的话，该配置类生效，反之则无效
    @ConditionalOnProperty(name = "kafka.topic.autoCreate", havingValue = "true")
    public NewTopic orderTopic(){
        return TopicBuilder.name(orderTopic).build();
    }

}

```
4.创建kafka接受消息实体类：

```java
package com.example.kafka_demo.dto;

import lombok.*;

/**
 * @author Keson
 * @version 1.0
 * @description: TODO 消息实体
 * @date 2021/9/6 14:56
 */

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
@ToString
public class ParamsDetail {

    private String orderNumber;

    private String orderSubNumber;

    private String customerNumber;

    private String subAccountNumber;

    private String tradeType;
}

```

5.创建KafkaService接口，使用`KafkaTemplate`来发送消息至kafka中：
```java
package com.example.kafka_demo.service;

import com.example.kafka_demo.dto.ParamsDetail;

public interface KafkaService {

    //发送消息给kafka
    public void sendMessage(ParamsDetail paramsDetail);
}

```

```java
package com.example.kafka_demo.service.impl;

import com.example.kafka_demo.dto.ParamsDetail;
import com.example.kafka_demo.service.KafkaService;
import com.example.kafka_demo.util.JsonUtil;
import com.fasterxml.jackson.core.JsonProcessingException;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.kafka.core.KafkaTemplate;
import org.springframework.stereotype.Service;

/**
 * @author Keson
 * @version 1.0
 * @description: TODO KafkaService实现类
 * @date 2021/9/6 15:01
 */
@Service
@Slf4j
public class KafkaServiceImpl implements KafkaService {

    @Autowired
    private KafkaTemplate<String, String> kafkaTemplate;

    @Value("${kafka.topic.kafka-demo-topic}")
    private String topic;

    @Value("${kafka.topic.kafka-demo-key}")
    private String key;

    @Override
    public void sendMessage(ParamsDetail detail) {
        try {
            kafkaTemplate.send(topic, key, JsonUtil.toJson(detail));
        } catch (JsonProcessingException e){
            log.error("对象转换为Json出错！");
        }
    }
}

```
6.Json与对象相互转换工具类代码如下：

```java
package com.example.kafka_demo.util;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;

/**
 * @author Keson
 * @version 1.0
 * @description: TODO Object与Json转换工具类
 * @date 2021/9/6 15:08
 */
public class JsonUtil {

    public static final ObjectMapper OBJECT_MAPPER = new ObjectMapper();

    //将json转换成对象
    public static <T> T fromJson(String json, Class<T> clz) throws JsonProcessingException {
        return OBJECT_MAPPER.readValue(json, clz);
    }

    //将对象转换成json格式
    public static String toJson(Object object) throws JsonProcessingException {
        return OBJECT_MAPPER.writeValueAsString(object);
    }
}

```
7.创建消息的消费者，使用`@KafkaListener`实现：

```java
package com.example.kafka_demo.listener;

import com.example.kafka_demo.dto.ParamsDetail;
import com.example.kafka_demo.util.JsonUtil;
import com.fasterxml.jackson.core.JsonProcessingException;
import org.springframework.kafka.annotation.KafkaListener;
import org.springframework.stereotype.Component;

/**
 * @author Keson
 * @version 1.0
 * @description: TODO kafka消费者
 * @date 2021/9/6 15:23
 */
@Component
public class OrderListener {

    //用于监听kafka，符合条件的消息能够即时消费
    @KafkaListener(topics = {"${kafka.topic.kafka-demo-topic}"}, autoStartup = "${kafka.topic.autoCreate:true}")
    public void processing (String message) throws JsonProcessingException {
        ParamsDetail detail = JsonUtil.fromJson(message, ParamsDetail.class);
        System.err.println(detail);
    }

}

```
8.最后创建一个Api用于向kafka发送消息：

```java
package com.example.kafka_demo.api;

import com.example.kafka_demo.dto.ParamsDetail;
import com.example.kafka_demo.service.KafkaService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author Keson
 * @version 1.0
 * @description: TODO kafka测试发送Api
 * @date 2021/9/6 15:46
 */
@RestController
@RequestMapping("/order")
public class OrderApi {

    @Autowired
    private KafkaService kafkaService;

    @GetMapping("/sendMessage")
    public String sendMessage(@RequestBody ParamsDetail paramsDetail){
        kafkaService.sendMessage(paramsDetail);
        return "消息发送成功！";
    }
}

```

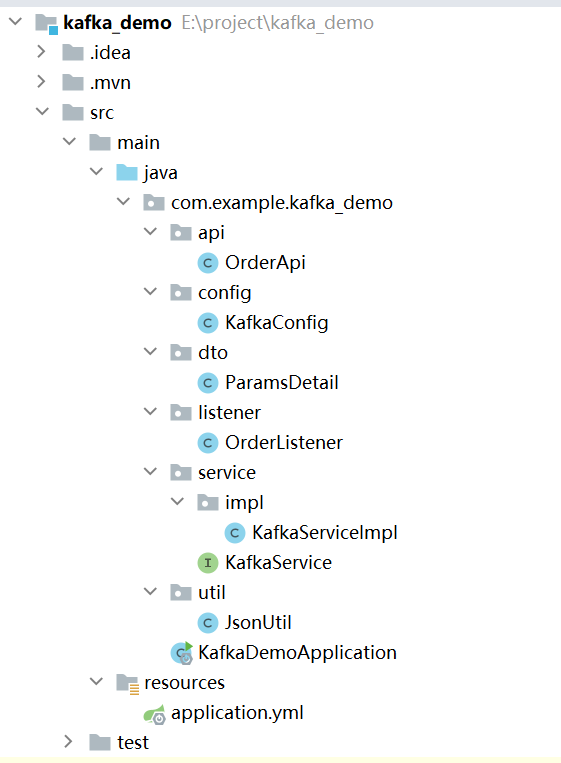

全部创建完成后项目结构如下：

![在这里插入图片描述](https://img-blog.csdnimg.cn/f32b30422ff74ae8b4afae2f29a8c6e0.png?x-oss-process=image/watermark,type_ZHJvaWRzYW5zZmFsbGJhY2s,shadow_50,text_Q1NETiBAS2Vzb24gWg==,size_20,color_FFFFFF,t_70,g_se,x_16)


## 三。运行结果

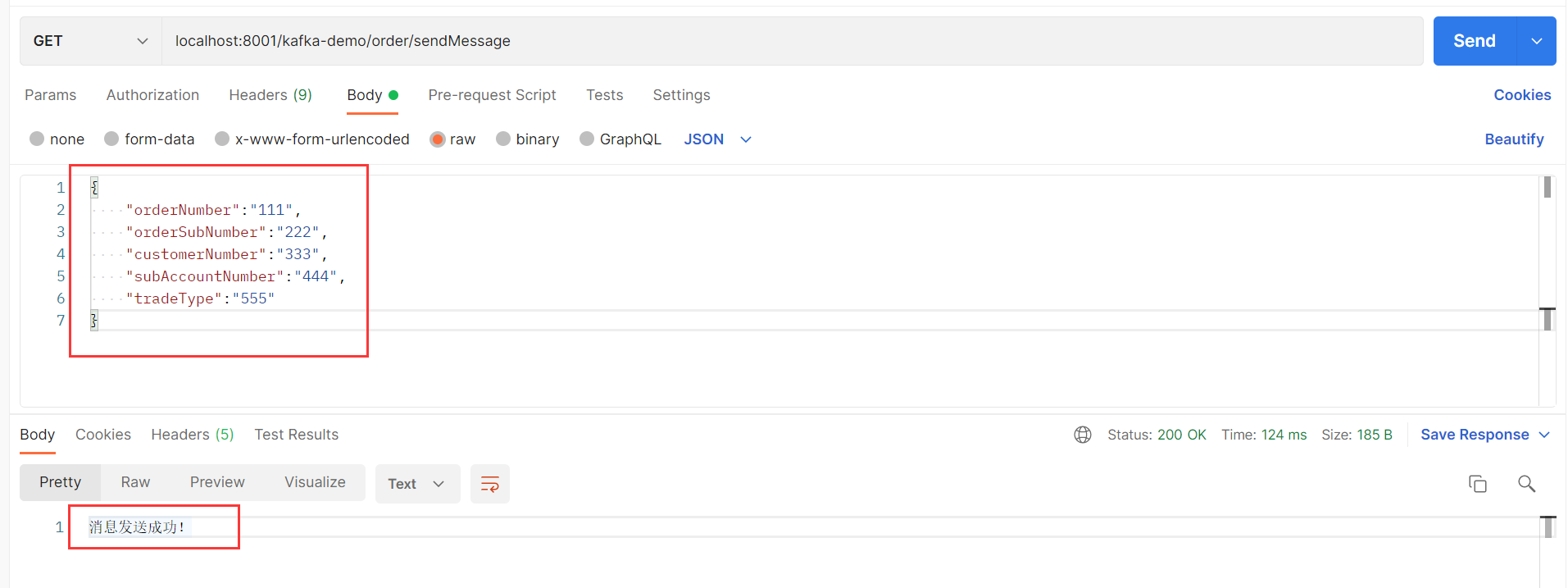

1.启动项目，使用postman测试发送接口：
![在这里插入图片描述](https://img-blog.csdnimg.cn/ffae1cf8c7544e0aa074e4cd6d7c2053.png?x-oss-process=image/watermark,type_ZHJvaWRzYW5zZmFsbGJhY2s,shadow_50,text_Q1NETiBAS2Vzb24gWg==,size_20,color_FFFFFF,t_70,g_se,x_16)

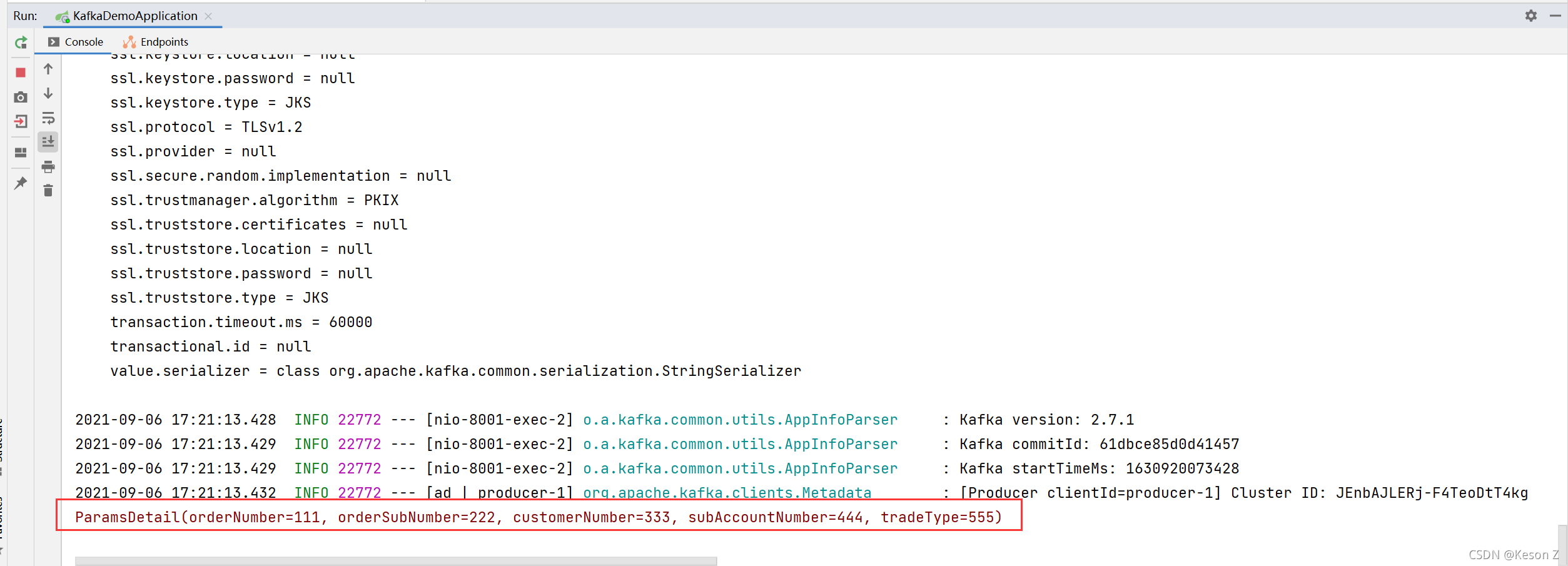

2.消息成功发送，打开程序查看消息是否成功被消费。控制台输出刚刚发送的消息，说明order-event这个topic下的消息被成功消费：
![在这里插入图片描述](https://img-blog.csdnimg.cn/af5a74375d054454a0b4f31409e34b43.png?x-oss-process=image/watermark,type_ZHJvaWRzYW5zZmFsbGJhY2s,shadow_50,text_Q1NETiBAS2Vzb24gWg==,size_20,color_FFFFFF,t_70,g_se,x_16)

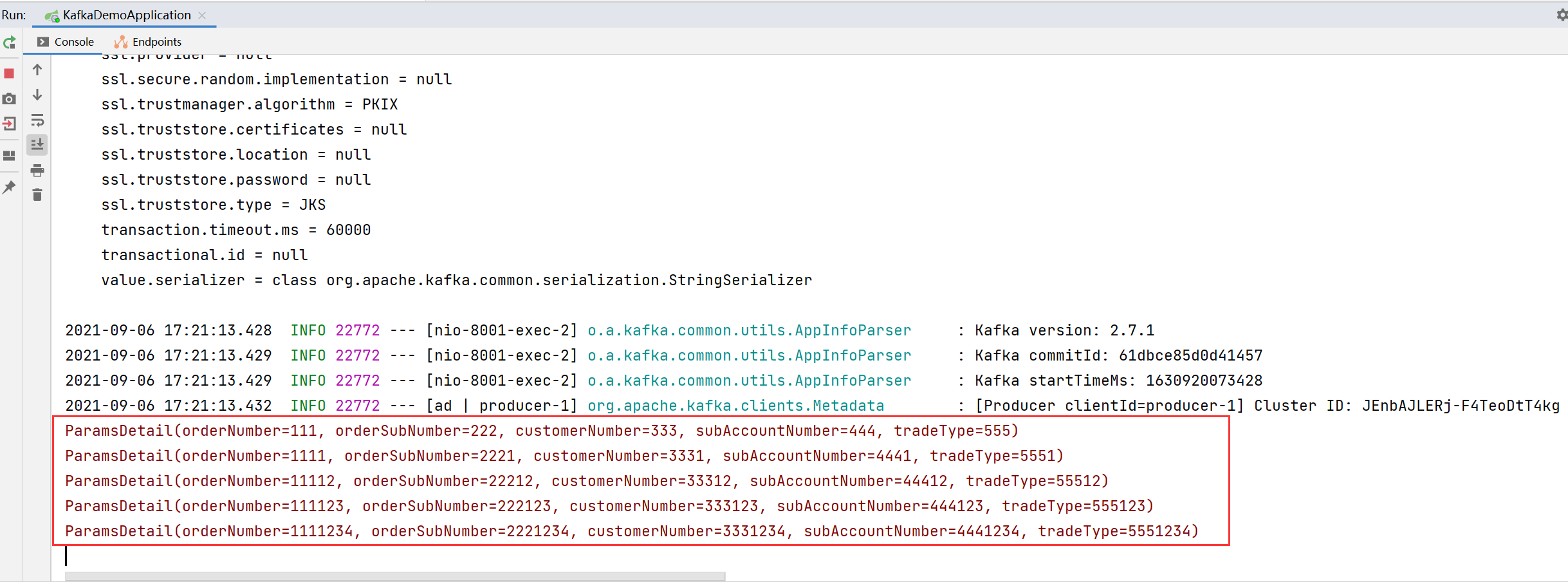

3.再次连续发几个不同的消息，发现消息即时存入即时消费：
![在这里插入图片描述](https://img-blog.csdnimg.cn/84d7c1ea4a3145be8feb7844d33120b5.png?x-oss-process=image/watermark,type_ZHJvaWRzYW5zZmFsbGJhY2s,shadow_50,text_Q1NETiBAS2Vzb24gWg==,size_20,color_FFFFFF,t_70,g_se,x_16)
