# RapidLayout-VPR

## Introduction

In the paper *RapidLayout: Fast Hard Block Placement for FPGA-optimized Systolic Arrays using Evolutionary Algorithms*, we compare evolutionary placement algorithms with VPR's annealer. This repo provides a complete guide of setting up the VPR experiment.

## Set up VPR

First, clone the repo on a Linux machine:

```
$ git clone https://github.com/zzzDavid/RapidLayout-VPR.git
$ cd RapidLayout-VPR/vpr
```

The vpr binary is already compiled. To run the placement experiments under the same settings, we defined an architecture file `my_arch.xml` and a netlist file `conv.blif`.

`my_arch.xml` reproduces the columnar hard block distribution of Xilinx VU11P device. It defines a resource region equivalent to half of a SLR of the VU11P FPGA.

`conv.blif` tries to capture the hard block connections of the original systolic array design. It defines a netlist containing 80 convolution units, which will be mapped to the resource region.

To run the placement design once with GUI, execute:

```
$  ./vpr my_arch.xml conv.blif -place
```
After the netlist and architecture file are parsed, it outputs the resource report:

```
The circuit will be mapped into a 200 x 96 array of clbs.

Resource usage...
	Netlist      0	blocks of type: <EMPTY>
	Architecture 4	blocks of type: <EMPTY>
	Netlist      962	blocks of type: io
	Architecture 4736	blocks of type: io
	Netlist      0	blocks of type: clb
	Architecture 14400	blocks of type: clb
	Netlist      1440	blocks of type: dsp
	Architecture 1488	blocks of type: dsp
	Netlist      640	blocks of type: block_ram
	Architecture 672	blocks of type: block_ram
	Netlist      160	blocks of type: ultra_ram
	Architecture 160	blocks of type: ultra_ram
```

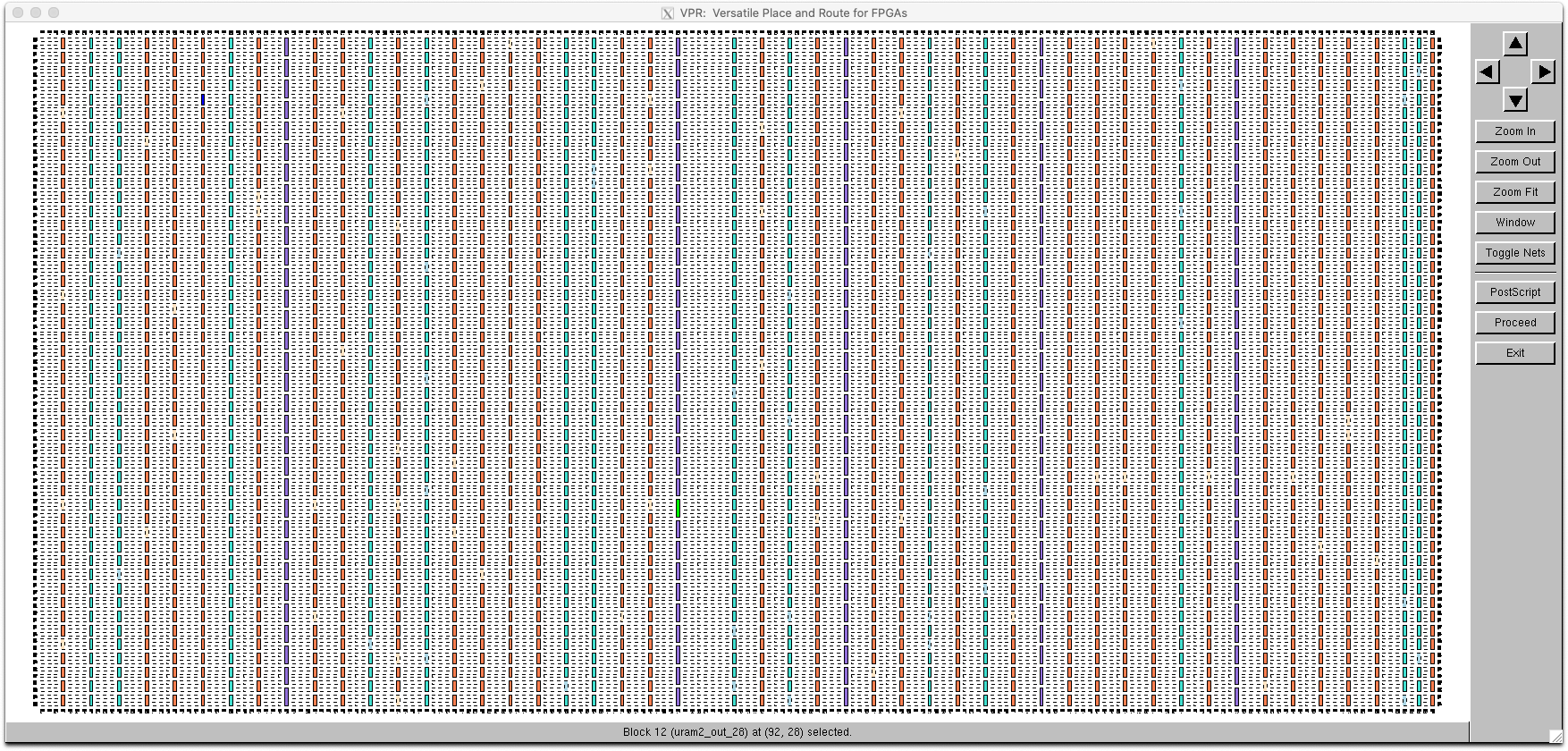

And the GUI displays the initial placement:

<div align="center">
  <img width="90%" height="50%"
  src="https://res.cloudinary.com/dxzx2bxch/image/upload/v1592905476/Screen_Shot_2020-06-23_at_17.34.37_hufvuv.png">
</div>

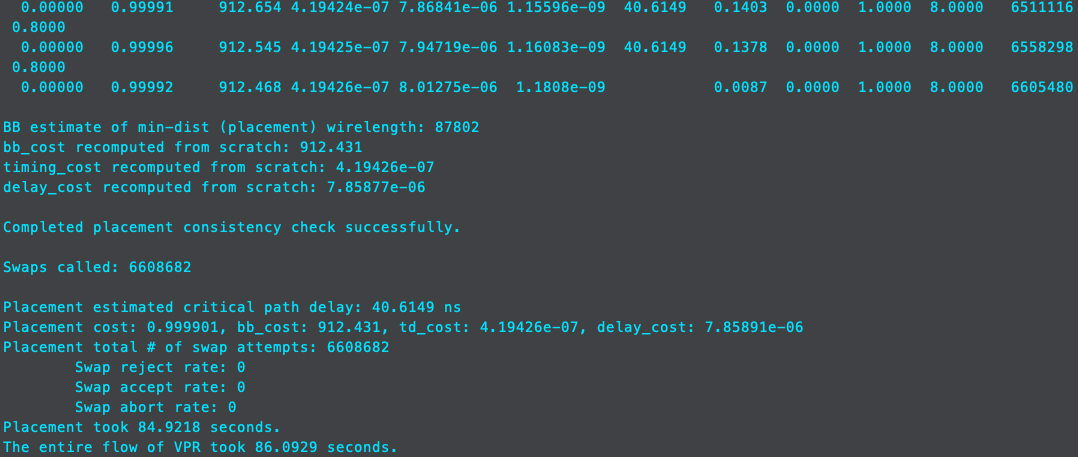

Then, click "Proceed", the tool will run the placement experiment and output the results as `conv.place` file:

<div align="center">
    <img width=70% height="50%"
    src="https://res.cloudinary.com/dxzx2bxch/image/upload/v1592905475/Screen_Shot_2020-06-23_at_17.36.58_evcd0s.png">
</div>


**Produce the results in the paper**:

In the RapidLayout repository, we provide tools to automatically run VPR without GUI and translate the results back for evaluation. Please refer to RapidLayout's documentation for details.
