# 车辆安全开发文档

## 一、项目介绍

为了提高司机发生事故时能够及时有效的得到诊治，也为医院诊断提供帮助，特此开发TransportSecurity系统。

本系统的用户主要分为以下两类：

1. 医院管理人员：接收事故信息，处理和委派外派医护人员
2. 外派医护人员：查看系统，根据指示到达事故地点展开诊治

**项目展示地址：http://106.52.60.176/ts/accident/warning**

## 二、环境搭建

#### 运行环境

1. 操作系统：Centos 7+
2. 数据库：MySQL8+
3. SDK：JDK1.8
4. 数据库连接池：Druid1.2.4

#### 开发环境

1. 操作系统：Windows10
2. 开发语言：前端。HTML，CSS，JavaScript，后台，Java
3. 开发环境：IntelliJ IDEA2020
4. 数据库：MySQl8.0+
5. SDK：maven3，JDK1.8

### Maven依赖

```xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.2</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.why</groupId>
    <artifactId>transportsecurity_finally</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>transportsecurity_finally</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.33</version>
        </dependency>

        <!-- easyexcel文件依赖 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>easyexcel</artifactId>
            <version>2.2.10</version>
        </dependency>

        <!-- SM3,4加密算法 -->
        <dependency>
            <groupId>org.bouncycastle</groupId>
            <artifactId>bcprov-jdk15on</artifactId>
            <version>1.56</version>
        </dependency>

        <!-- 音频播放 -->
        <dependency>
            <groupId>javazoom</groupId>
            <artifactId>jlayer</artifactId>
            <version>1.0.1</version>
        </dependency>

        <!-- 邮件依赖 -->
        <dependency>
            <groupId>javax.mail</groupId>
            <artifactId>mail</artifactId>
            <version>1.4.7</version>
        </dependency>

        <!-- 短信依赖 -->
        <dependency>
            <groupId>com.github.qcloudsms</groupId>
            <artifactId>qcloudsms</artifactId>
            <version>1.0.6</version>
        </dependency>

        <!-- 分页插件 -->
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>5.2.0</version>
        </dependency>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-autoconfigure</artifactId>
            <version>1.3.1</version>
        </dependency>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>1.3.1</version>
        </dependency>

        <!-- 整合swagger接口文档 -->
        <dependency>
            <groupId>com.spring4all</groupId>
            <artifactId>swagger-spring-boot-starter</artifactId>
            <version>1.9.1.RELEASE</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.alibaba/druid  Druid依赖-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.2.4</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <mainClass>com.why.transportsecurity_finally.TransportsecurityFinallyApplication</mainClass>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-resources-plugin</artifactId>
                <version>3.0.2</version>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.22.2</version>
                <configuration>
                    <skipTests>true</skipTests>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>
```

## 三、系统架构设计

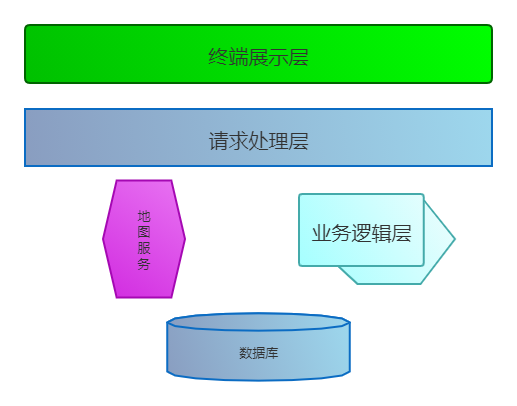

项目借鉴传统的三层架构（即数据访问层、业务逻辑层和界面层）。

![Untitled Diagram (19)](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210731112058709-909125533.png)

## 四、模块设计

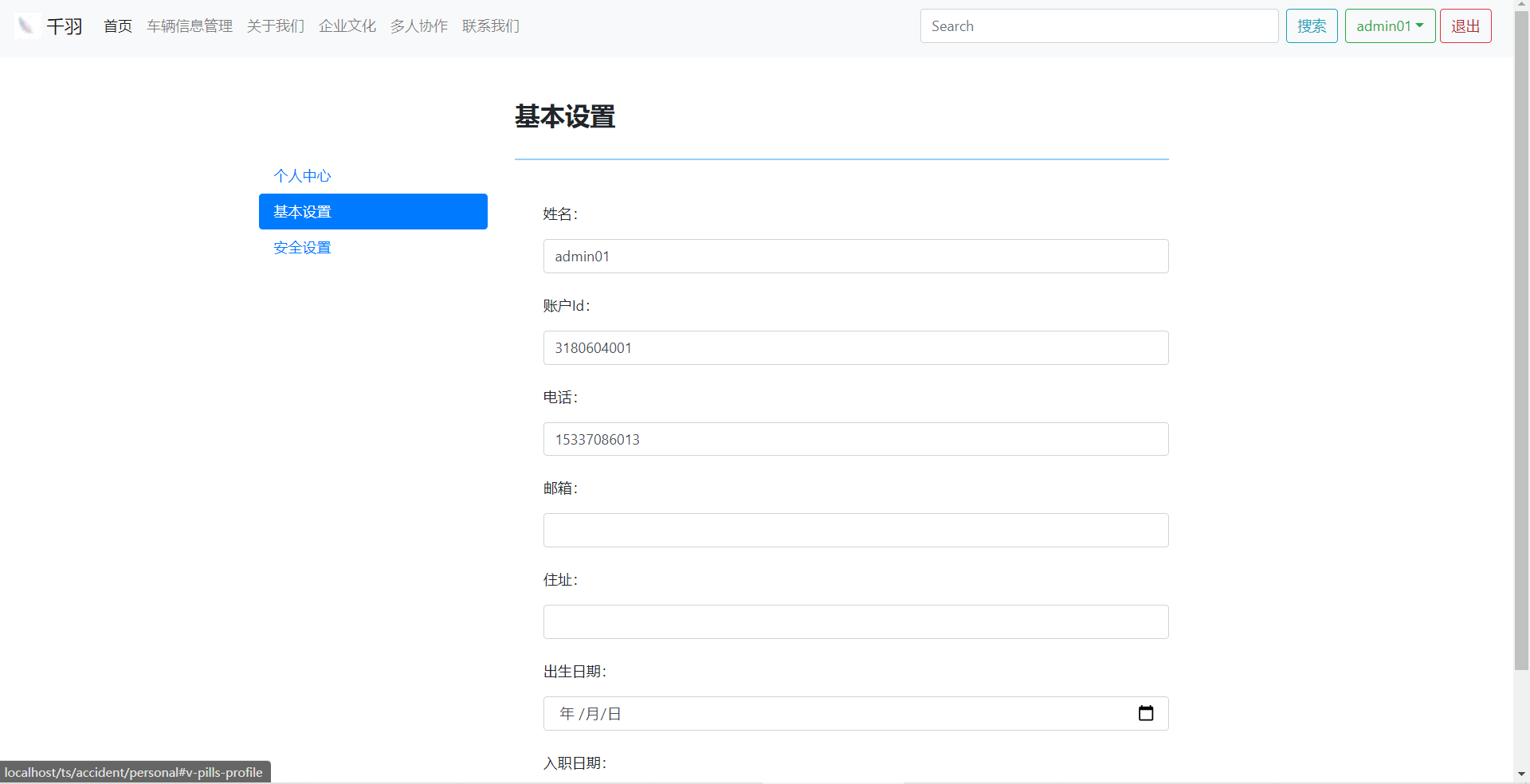

### 4.1 管理员信息处理模块

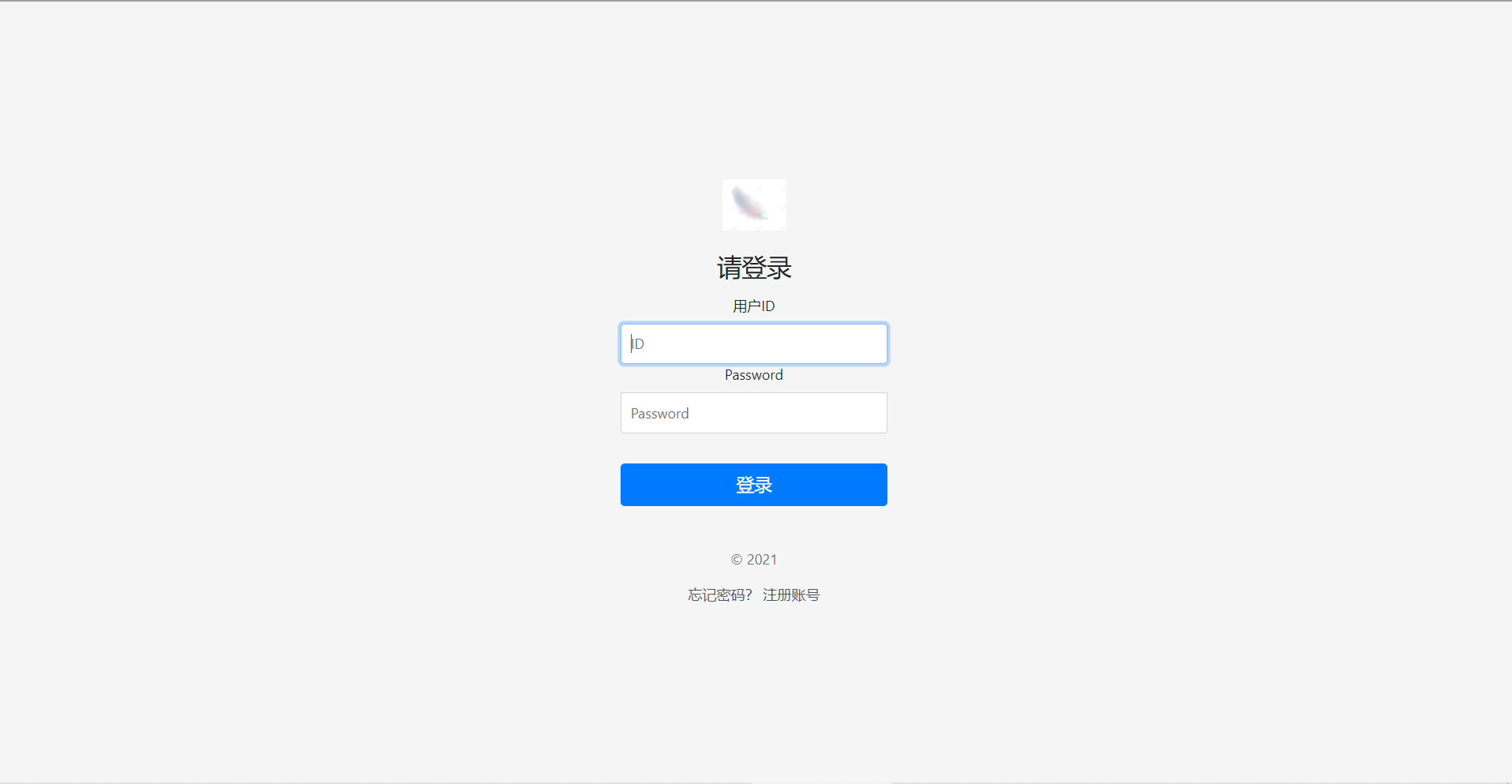

#### 4.1.1 登录、注册中的密码处理

在网站登陆时，密码一般采用加盐加密的形式来验证。其采用如下的一般过程：

  **注册阶段**

1. 用户输入用户名和密码等相关信息，提交给服务端

2. 服务端产生一个随机字符串，称为盐值

3. 加盐：将盐值加入到用户密码末尾

4. 加密：使用对称密码算法，如SM4，AES，3DES等密码算法对其加密

5. 哈希：使用hash算法（SM3，MD5等）对加密后的字符串进行hash，产生新密码

6. 保存：将新密码和盐值保存到数据库中

7. 完成注册阶段

**登录阶段**

1. 用户输入用户名、密码提交给服务端

2. 服务端根据用户的用户名查询字段，查询不到返回

3. 将用户密码+查询到的盐值进行合并

4. 使用注册阶段对此字符串加盐加密

5. 登录时提交处理后的字符串和查询到的密码比较

6. 相等登录成功，否则返回

在此过程中使用对称加密保证了数据的机密性，哈希算法保证了数据的完整性，保证黑客即使拿到数据库中的数据也无法恢复出用户的密码信息。

#### 4.1.2 Cookie + Session认证过程

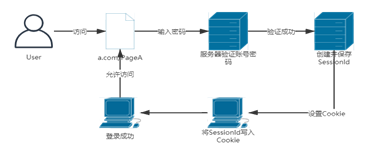

**用户第一次登录**

​                               ![image-20210730162015162](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210731112055670-2019169088.png)

1. 用户访问a.com/PageA，并输入登录

2. 服务器使用上述密码验证成功后，会创建SessionId

3. 设置Cookie，将SessionId写入Cookie中

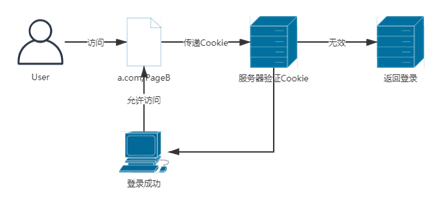

**后续访问**

  第一次登录完成后，后续的访问就可以直接使用Cookie进行身份验证

 ![image-20210730162038834](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210731112105452-255537471.png)

1. 用户访问其它页面a.com/PageB，将设置好的Cookie传递个服务端

2. 服务端验证Cookie是否和Session中SessionId相同

3. 不相同，返回登录

4. 相同登录成功

Session和Cookie的方式解决了服务器判断请求是否来自同一个人的问题，也解决了判断用户的登录状态问题。

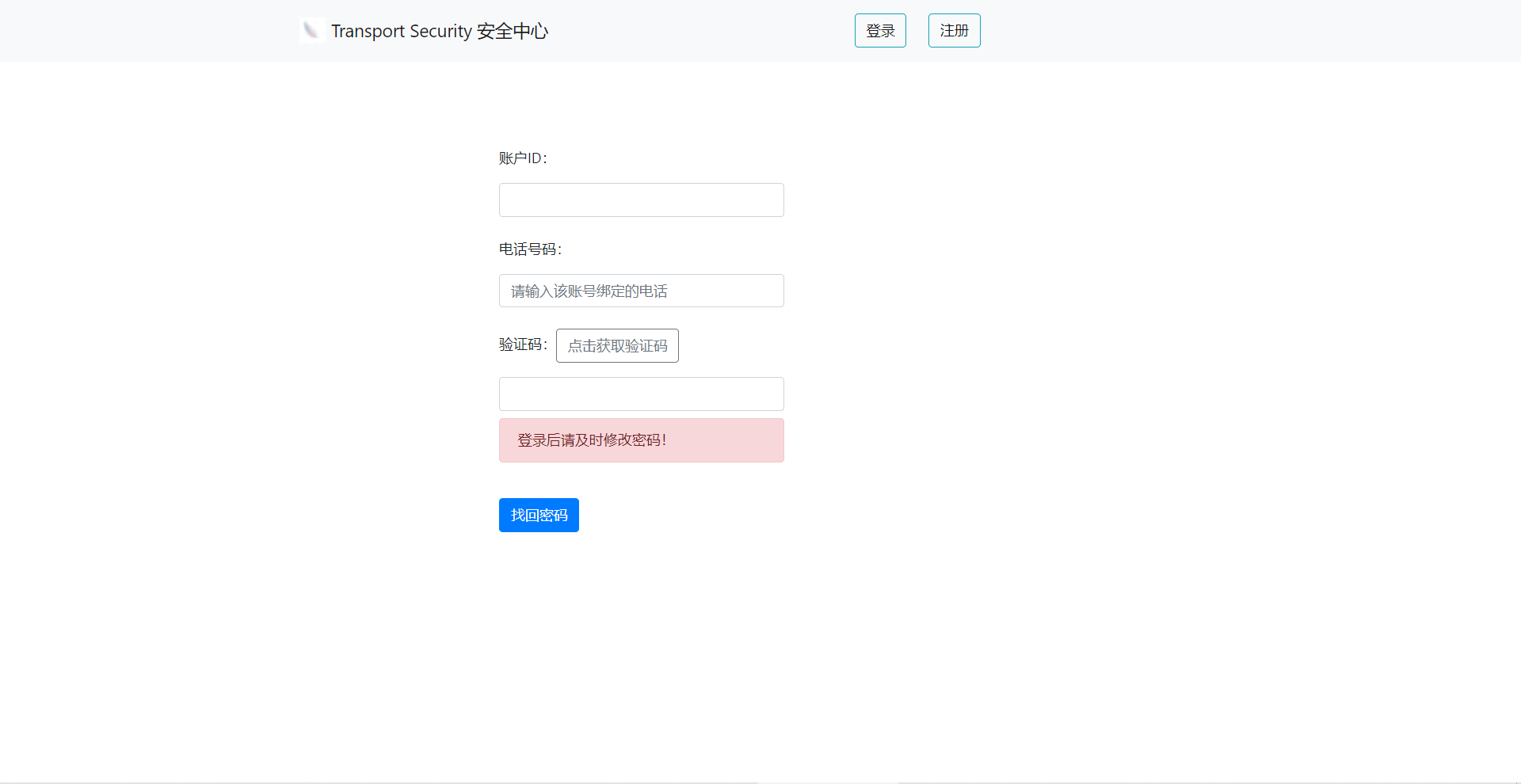

#### 4.1.3 密码找回模块

管理员可根据绑定的邮箱或手机号码进行密码找回

1. 用户输入手机号/密码
2. 后台比对手机号和密码是否绑定
3. 若以绑定，发送验证码到手机或邮箱
4. 用户输入验证码登录
5. 进入系统后用户进行密码修改

### 4.2 事故处理模块

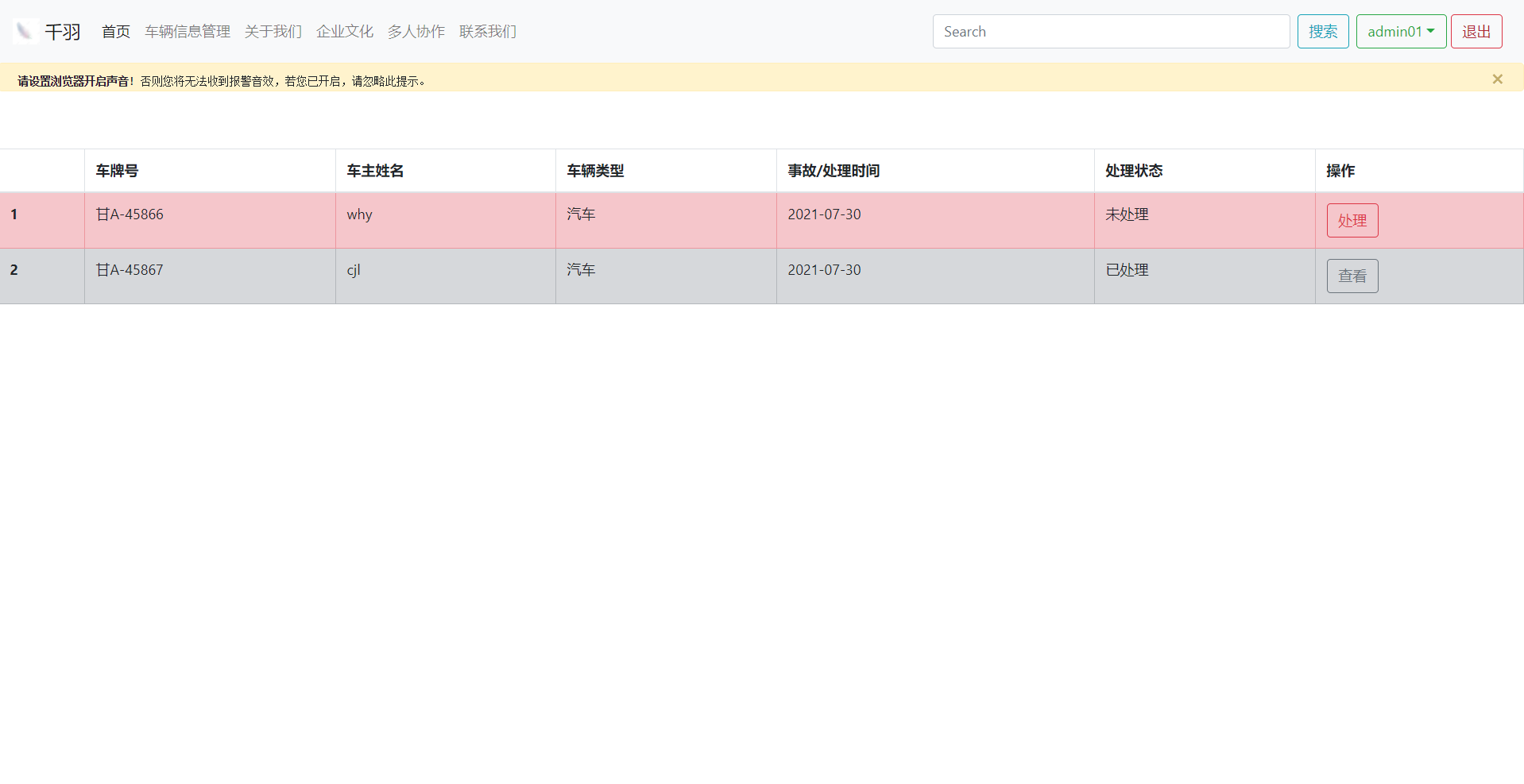

#### 4.2.1 事故统计展示模块

1. 查询数据库中所有accident
2. 查询所有事故的车辆信息和加速度信息
3. 封装展示warning界面

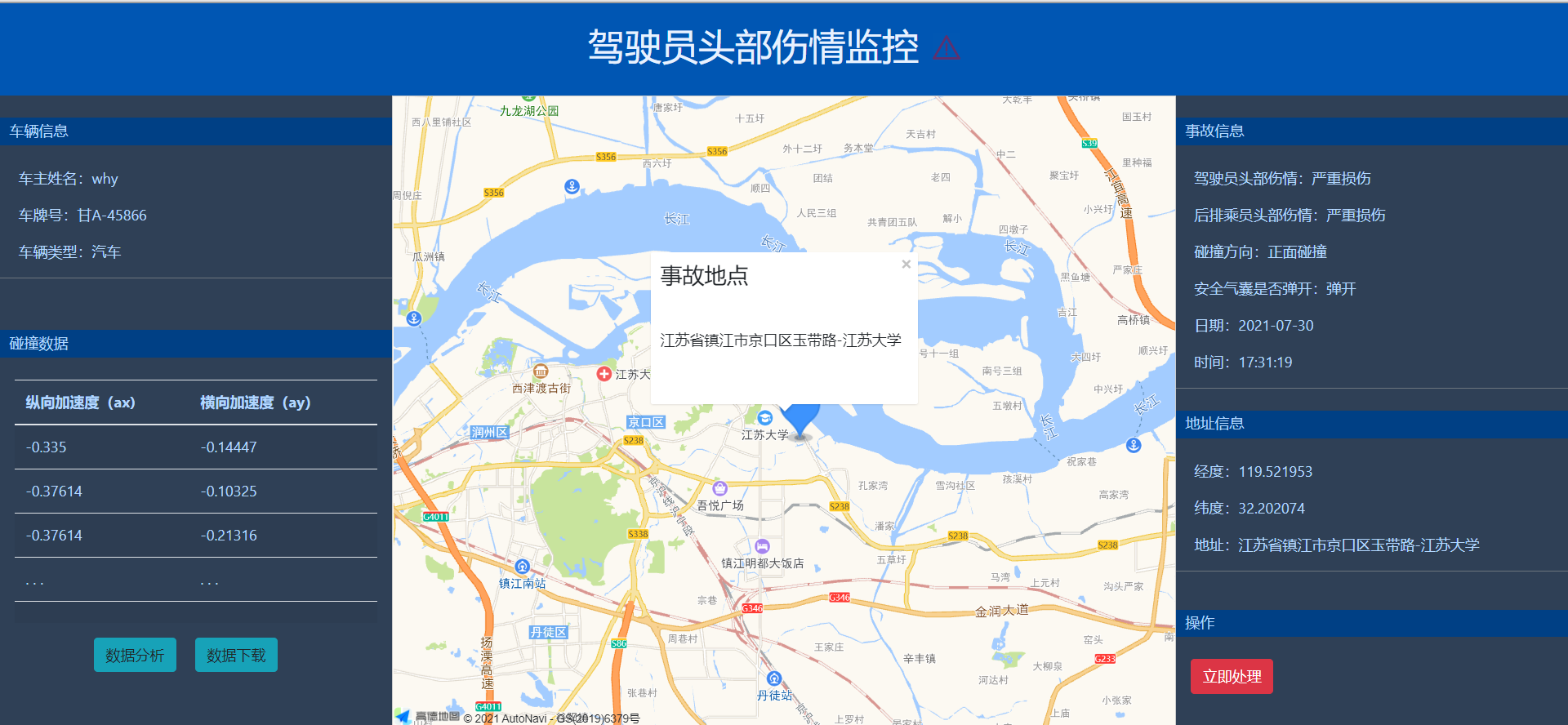

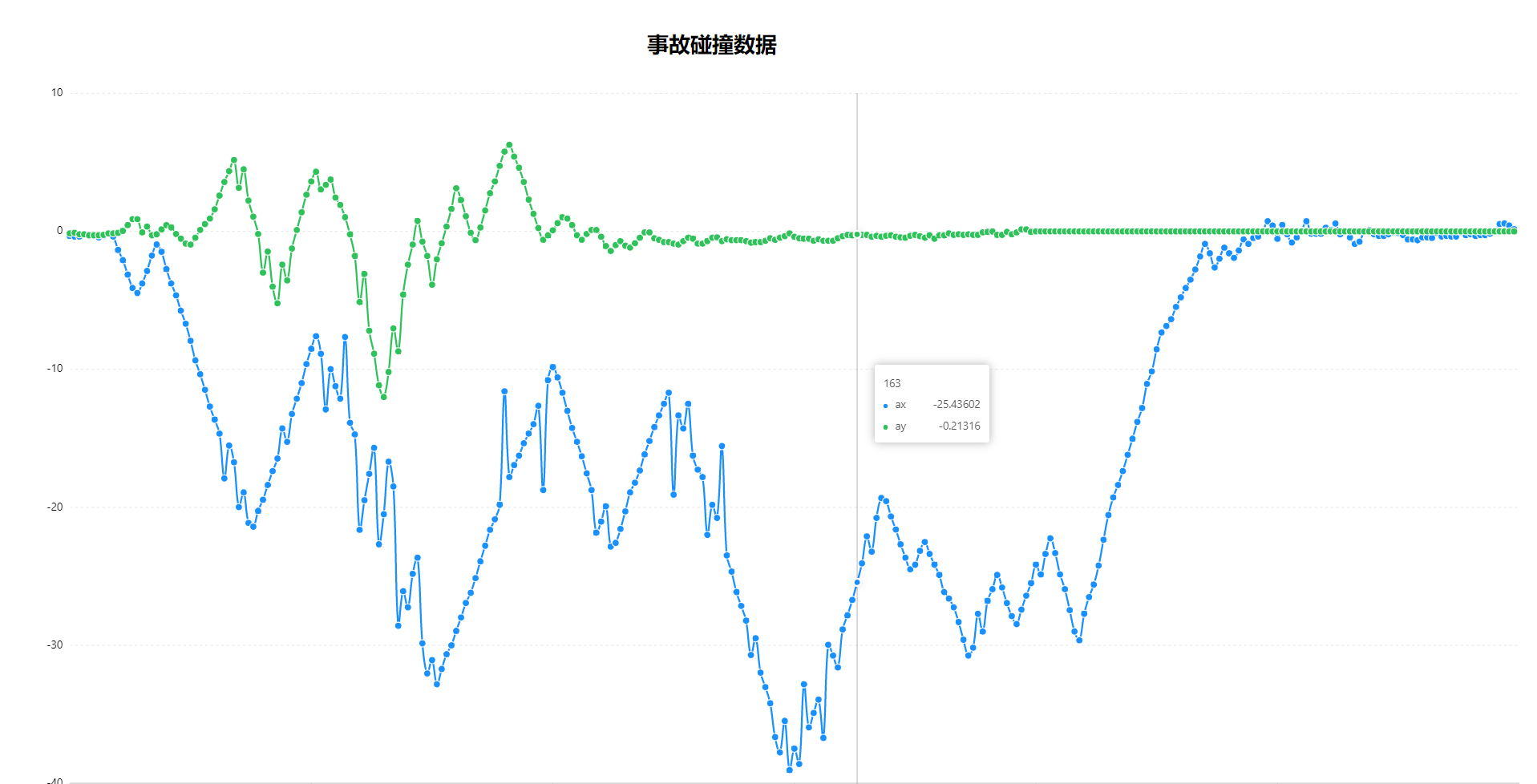

#### 4.2.2 碰撞数据处理

1. 接收前台传入的事故id参数
2. 查询事故信息、事故车辆信息、加速度信息
3. 根据经纬度进行逆地址解析
4. 封装碰撞数据返回到前台
5. view界面创建地图追踪，展示所有信息

### 4.3 车辆信息管理模块

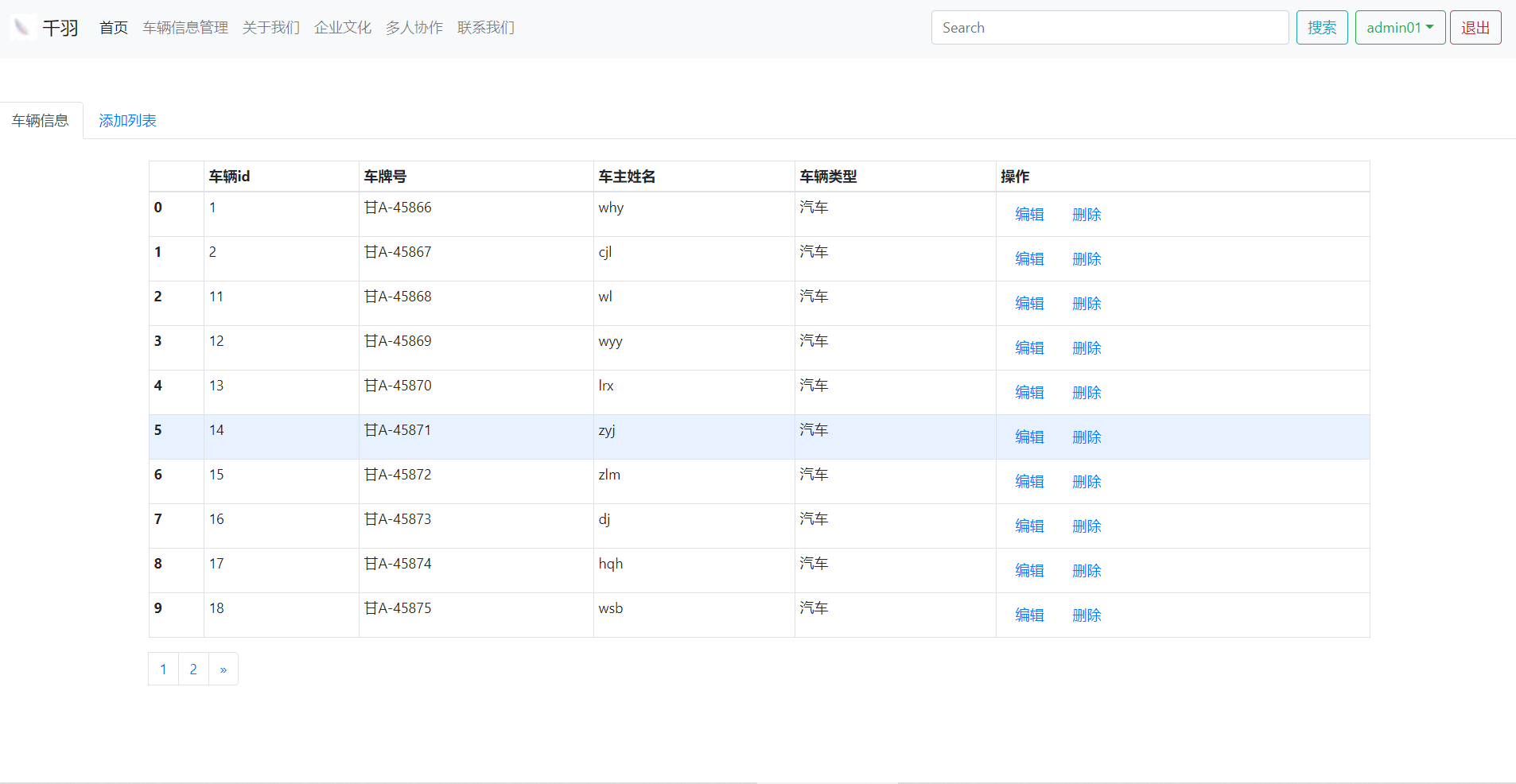

#### 4.3.1 所有车辆信息展示

查询所有车辆信息封装展示

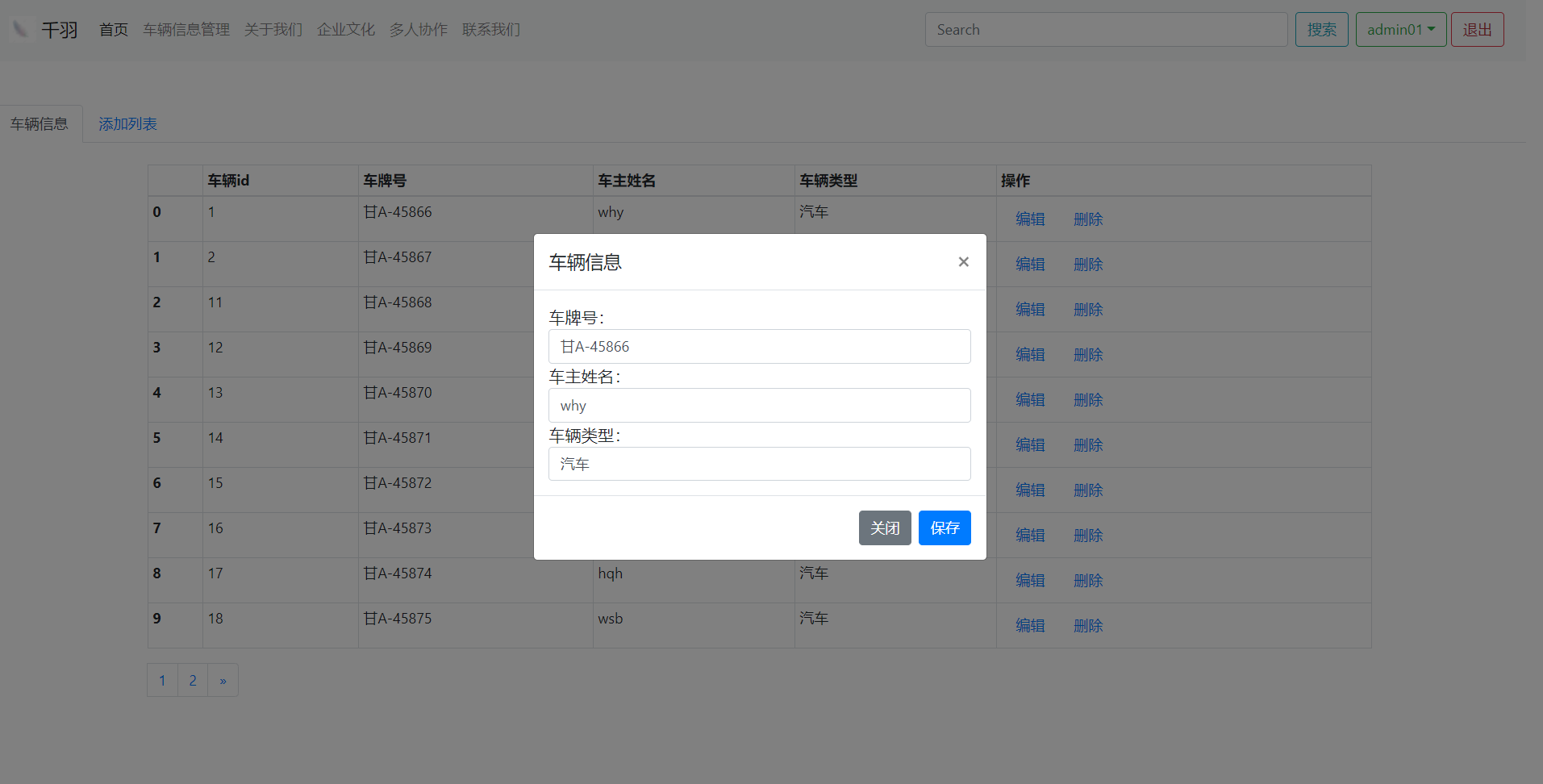

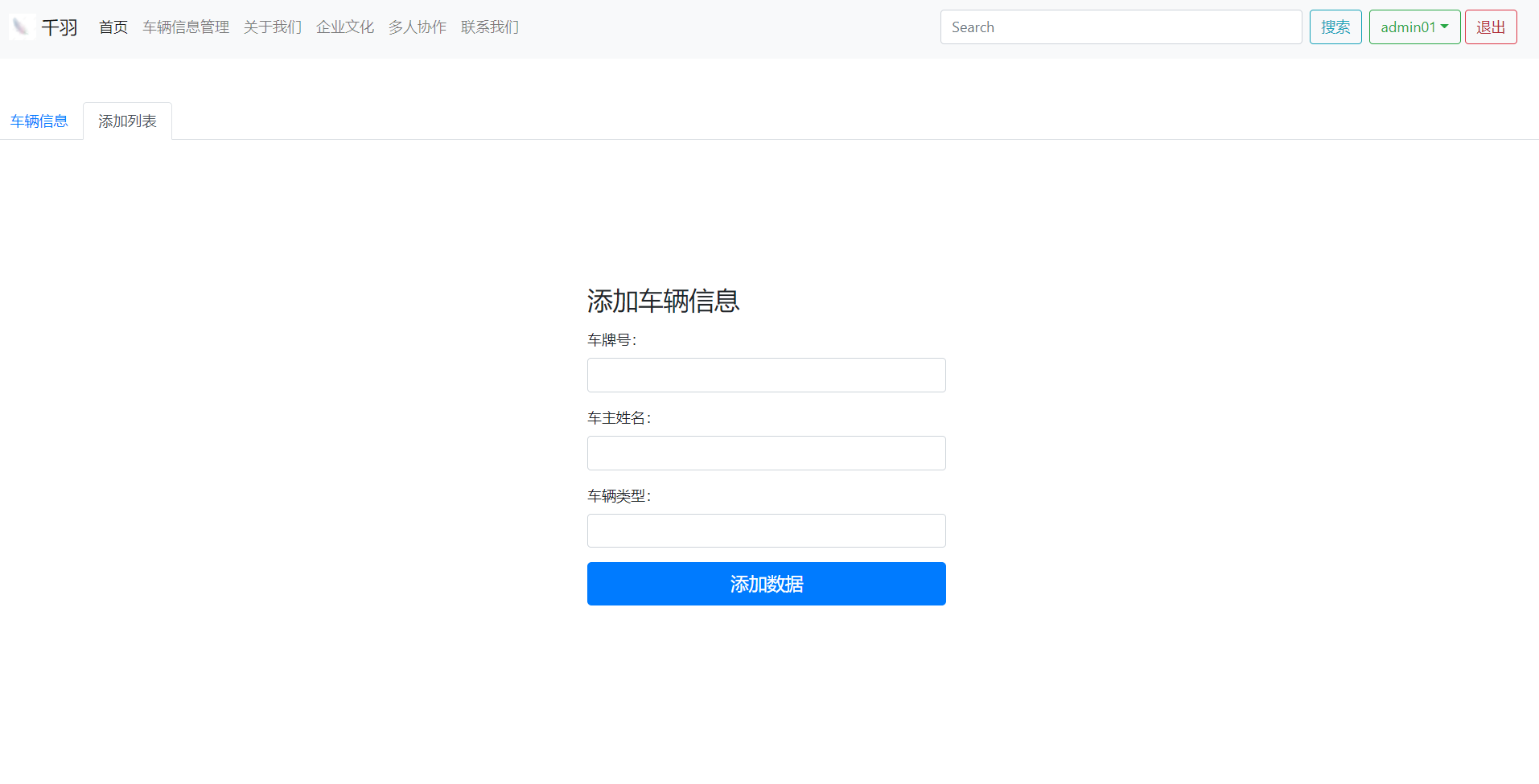

#### 4.3.2 车辆信息编辑模块

1. 管理员可对车辆信息进行编辑
2. 后台接受编辑后的数据进行保存
3. 管理员还可对不存在的车辆信息进行删除
4. 管理员可添加车辆信息

## 五、数据库设计

### 5.1 管理员模块

#### 5.1.1 管理员登录信息表

**表名**：tbl_admin

**字段名**：id（用户id，主键），u_name(用户名)，u_pwd(用户密码)

```sql
-- 管理员表设计
CREATE TABLE tbl_admin(
	id INT(10) PRIMARY KEY auto_increment,
	u_id VARCHAR(255) UNIQUE,
	u_name VARCHAR(255),
	u_pwd VARCHAR(255),
	u_salt VARCHAR(255)
);
```

#### 5.1.2 管理员身份信息表

**表名：**tbl_admin_info

**字段名：**id（主键），u_phone，u_email，u_address，u_birth，u_date，u_id(外键，关联tbl_admin)

```sql
CREATE TABLE tbl_admin_info(
	id INT(10) PRIMARY KEY auto_increment,
	u_phone VARCHAR(50),
	u_email VARCHAR(255),
	u_address VARCHAR(255),
	u_birth VARCHAR(255),
	u_date VARCHAR(255),
	u_id INT(10),
	CONSTRAINT fk_ad_id FOREIGN KEY(u_id) REFERENCES tbl_admin(id)
);
```

### 5.2 事故信息模块

#### 5.2.1 事故信息表

**表名：**tbl_accident_info

**字段名：**id（事故信息id，主键），a_date（事故日期，时间），lng（经度），lat（纬度），state（处理状态），v_id(车辆信息外键)

```sql
CREATE TABLE tbl_accident_info(
	id INT PRIMARY KEY auto_increment,
	a_date LONG NOT NULL,
	-- 经度
	lng DECIMAL(11,8) NOT NULL,
	lat DECIMAL(11,8) NOT NULL,
	-- 处理状态，0表示未处理，1表示已处理
	state INT DEFAULT(0) CHECK(state = 0 || state = 1),
	v_id INT,
	CONSTRAINT fk_vi_id FOREIGN KEY(v_id) REFERENCES tbl_vehicle_info(id)
);
```

#### 5.2.2 ax加速度表

**表名**：tbl_ax

**字段名**：id（ax主键），acceleration_x（加速度ax），a_id(事故信息表id，外键)

```sql
-- ax加速度表
CREATE TABLE tbl_ax(
	id INT PRIMARY KEY auto_increment,
	acceleration_x DECIMAL(10,7),
	a_id INT,
	CONSTRAINT fk_ai_idx FOREIGN KEY(a_id) REFERENCES tbl_accident_info(id)
);

```

#### 5.2.3 ay加速度表

**表名**：tbl_ay

**字段名：**id（主键），acceleration_y（加速度ay），a_id(事故信息表id，外键)

```sql
-- ay加速度表
CREATE TABLE tbl_ay(
	id INT PRIMARY KEY auto_increment,
	acceleration_y DECIMAL(10,7),
	a_id INT,
	CONSTRAINT fk_ai_idy FOREIGN KEY(a_id) REFERENCES tbl_accident_info(id)
);
```

### 5.3 车辆信息模块

#### 5.3.1 车辆基本信息表

**表名：**tbl_vehicle_info

**字段名：**id(车辆id，主键)，v_name(车主姓名)，v_num(车牌号)，v_type（车辆类型）

```sql
-- 车辆基本信息表
CREATE TABLE tbl_vehicle_info(
	id INT PRIMARY KEY auto_increment,
	v_name VARCHAR(50),
	v_num VARCHAR(50),
	v_type VARCHAR(50)
);
```

## 六、实体类设计

### 6.1 管理员信息相关

#### 6.1.1 Admin管理员登录注册信息

```java
package com.why.transportsecurity_finally.entity;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * @Description TODO 管理员实体类
 * @Author why
 * @Date 2021/7/24 16:09
 * Version 1.0
 **/
@Data
@NoArgsConstructor
@AllArgsConstructor
public class Admin {
    /**
     * id
     */
    private Integer id;
    /**
     * 用户id
     */
    private String uId;
    /**
     * 姓名
     */
    private String uName;
    /**
     * 密码
     */
    private String uPwd;
    /**
     * 盐值
     */
    private String uSalt;
}
```

#### 6.1.2 管理员身份信息实体类

```java
package com.why.transportsecurity_finally.entity;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;import java.sql.Date;/** * @Description TODO 管理员信息 * @Author why * @Date 2021/7/27 10:42 * Version 1.0 **/@Data@NoArgsConstructor@AllArgsConstructorpublic class AdminInfo {    /**     * id     */    private Integer id;    /**     * 电话号     */    private String uPhone;    /**     * 邮箱号     */    private String uEmail;    /**     * 地址     */    private String uAddress;    /**     * 出生日期     */    private String uBirth;    /**     * 入职日期     */    private String uDate;    /**     * 外键uId     */    private Integer uId;}
```

#### 6.1.3 管理员信息封装整合实体类

```java
package com.why.transportsecurity_finally.entity;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;import java.sql.Date;/** * @Description TODO 封装个人中心信息 * @Author why * @Date 2021/7/27 11:11 * Version 1.0 **/@Data@NoArgsConstructor@AllArgsConstructorpublic class AdminAll {    /**     * 用户id     */    private String uIds;    /**     * 姓名     */    private String uName;    /**     * id     */    private Integer id;    /**     * 电话号     */    private String uPhone;    /**     * 邮箱号     */    private String eMail;    /**     * 地址     */    private String uAddress;    /**     * 出生日期     */    private String uBirth;    /**     * 入职日期     */    private String uDate;    /**     * 外键uId     */    private Integer uId;}
```

### 6.2 事故信息相关

#### 6.2.1 事故信息

```java
package com.why.transportsecurity_finally.entity;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;/** * @Description TODO 车辆事故信息实体类 * @Author why * @Date 2021/7/21 10:27 * Version 1.0 **/@Data@AllArgsConstructor@NoArgsConstructorpublic class AccidentInfo {    /**     * id     */    private Integer id;    /**     * 时间     */    private long aDate;    /**     * 经度     */    private double lng;    /**     * 纬度     */    private double lat;    /**     * 处理状态，0表示未处理，1表示已处理     */    private int state;    /**     * 车辆基本信息id     */    private Integer vId;}
```

#### 6.2.2 加速度ax

```java
package com.why.transportsecurity_finally.entity;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;/** * @Description TODO 横向加速度实体类 * @Author why * @Date 2021/7/21 10:31 * Version 1.0 **/@Data@AllArgsConstructor@NoArgsConstructorpublic class Ax {    /**     * id     */    private Integer id;    /**     * 横向加速度ax     */    private double accelerationX;    /**     * 车辆事故信息id     */    private Integer aId;}
```

#### 6.2.3 加速度ay

```java
package com.why.transportsecurity_finally.entity;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;/** * @Description TODO 纵向加速的ay * @Author why * @Date 2021/7/21 10:33 * Version 1.0 **/@Data@AllArgsConstructor@NoArgsConstructorpublic class Ay {    /**     * id     */    private Integer id;    /**     * ay     */    private double accelerationY;    /**     * 事故信息id     */    private Integer aId;}
```

#### 6.2.4 加速度封装

```java
package com.why.transportsecurity_finally.entity;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;/** * @Description TODO 封装加速度信息 * @Author why * @Date 2021/7/22 10:50 * Version 1.0 **/@Data@NoArgsConstructor@AllArgsConstructorpublic class Acceleration {    private double ax;    private double ay;}
```

#### 6.2.5 封装统计展示信息

```java
package com.why.transportsecurity_finally.entity;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;/** * @Description TODO 封装统计事故信息 * @Author why * @Date 2021/7/21 11:43 * Version 1.0 **/@Data@AllArgsConstructor@NoArgsConstructorpublic class TotalInfo {    /**     * 车辆id     */    private Integer vId;    /**     * 事故id     */    private Integer aId;    /**     * 车牌号     */    private String vNum;    /**     * 车主姓名     */    private String vName;    /**     * 车辆类型     */    private String vType;    /**     * 日期     */    private String date;    /**     * 处理状态,true：已处理，false：未处理     */    private boolean status;}
```

#### 6.2.6 封装事故碰撞数据

```java
package com.why.transportsecurity_finally.entity;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;/** * @Description TODO 封装展示细节信息 * @Author why * @Date 2021/7/21 11:46 * Version 1.0 **/@Data@AllArgsConstructor@NoArgsConstructorpublic class DetailInfo {    /**     * 驾驶员损伤程度     */    private String driverDegreeOfDamage;    /**     * 后排乘客损伤程度     */    private String passengerDegreeOfDamage;    /**     * 日期     */    private String date;    /**     * 时间     */    private String time;    /**     * 经度     */    private double lng;    /**     * 纬度     */    private double lat;    /**     * 地址     */    private String address;    /**     * 碰撞方向     */    private String direction;    /**     * 安全气囊是否弹开     */    private String isBounce;    /**     * 处理状态，true，已处理，false未处理     */    private boolean state;}
```

#### 6.2.7 封装excel数据下载model

```java
package com.why.transportsecurity_finally.entity;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;import java.util.List;/** * @Description TODO 数据下载实体类 * @Author why * @Date 2021/7/22 11:07 * Version 1.0 **/@Data@NoArgsConstructor@AllArgsConstructorpublic class InfoExcelModel {    private String vName;    private String vNumber;    private String vType;    private String driverDegreeOfDamage;    private String passengerDegreeOfDamage;    private String date;    private String time;    private double lng;    private double lat;    private String address;    private String collisionDirection;    private String isBounce;    private List<Double> adRAcceleration;    private List<Double> adCAcceleration;}
```

### 6.3 车辆信息相关

#### 6.3.1 车辆信息

```java
package com.why.transportsecurity_finally.entity;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;/** * @Description TODO 车辆基本信息实体类 * @Author why * @Date 2021/7/21 10:23 * Version 1.0 **/@Data@AllArgsConstructor@NoArgsConstructorpublic class VehicleInfo {    /**     * id     */    private Integer id;    /**     * 车主姓名     */    private String vName;    /**     * 车牌号     */    private String vNum;    /**     * 车辆类型     */    private String vType;}
```

## 七、mapper层接口设计

### 7.1 管理员相关

#### 7.1.1 管理员AdminMapper接口

```java
package com.why.transportsecurity_finally.mapper;import com.why.transportsecurity_finally.entity.Admin;import com.why.transportsecurity_finally.entity.AdminInfo;import org.apache.ibatis.annotations.Mapper;/** * @Description TODO 管理员mapper * @Author why * @Date 2021/7/24 16:11 * Version 1.0 **/@Mapperpublic interface AdminMapper {    /*****************************************登录注册***********************************/    /**     * 根据uId查询管理员信息     * @param uId     * @return     */    public Admin getAdminById(String uId);    /**     * 根据id查询管理员     * @param id     * @return     */    public Admin getAdminByIdPre(Integer id);    /**     * 插入管理员信息     * @param admin     * @return     */    public void insertAdmin(Admin admin);    /**     * 更新数据     * @param admin     */    public void updateAdmin(Admin admin);    /**     * 更新密码     * @param admin     */    public void  updateAdminPwd(Admin admin);    /*****************************************个人信息***********************************/    /**     * 获取adminInfo     * @param uId     * @return     */    public AdminInfo getAdminInfoByUId(Integer uId);    /**     * 添加管理员信息     * @param adminInfo     * @return     */    public void insertAdminInfo(AdminInfo adminInfo);    /**     * 更新管理员数据     * @param adminInfo     */    public void updateAdminInfo(AdminInfo adminInfo);}
```

### 7.2 事故信息相关

#### 7.2.1 事故信息mapper接口

```java
package com.why.transportsecurity_finally.mapper;import com.why.transportsecurity_finally.entity.AccidentInfo;import com.why.transportsecurity_finally.entity.VehicleInfo;import org.apache.ibatis.annotations.Mapper;import java.util.List;/** * @Description TODO 事故信息mapper * @Author why * @Date 2021/7/21 10:52 * Version 1.0 **/@Mapperpublic interface AccidentInfoMapper {    /**     * 根据车辆事故信息id查询事故信息     * @param id 事故信息id     * @return     */    public AccidentInfo getAccidentInfoById(Integer id);    /**     * 根据车辆基本信息id，查询车辆事故信息     * @param vId 车辆基本信息id     * @return     */    public List<AccidentInfo> getAccidentInfoByVId(Integer vId);    /**     * 获得所有已处理数据     * @return     */    public List<AccidentInfo> getAllAccidentInfoSolve();    /**     * 获得所有未处理数据     * @return     */    public List<AccidentInfo> getAllAccidentInfoUnSolve();    /**     * 更新处理状态     * @param aID     */    public void updateState(Integer aID);    public void deleteAccident(Integer vId);}
```

#### 7.2.2 加速度AxMapper接口

```java
package com.why.transportsecurity_finally.mapper;import com.why.transportsecurity_finally.entity.Ax;import org.apache.ibatis.annotations.Mapper;import java.util.List;/** * @Description TODO ax加速度mapper * @Author why * @Date 2021/7/21 11:11 * Version 1.0 **/@Mapperpublic interface AxMapper {    /**     * 根据a_id查询加速度ax     * @param aId     * @return     */    public List<Double> getAx(Integer aId);    /**     * 插入ax加速度     * @param ax     */    public void insertAx(Ax ax);    /**     * 删除ax     * @param aId     */    public void deleteAx(Integer aId);}
```

#### 7.2.3 加速度AyMapper接口

```java
package com.why.transportsecurity_finally.mapper;import com.why.transportsecurity_finally.entity.Ay;import org.apache.ibatis.annotations.Mapper;import java.util.List;/** * @Description TODO ay加速度mapper * @Author why * @Date 2021/7/21 11:18 * Version 1.0 **/@Mapperpublic interface AyMapper {    /**     * 根据aID查询ay     * @param aID     * @return     */    public List<Double> getAy(Integer aID);    /**     * 插入ay     * @param ay     */    public void insertAy(Ay ay);    /**     * 删除ax     * @param aId     */    public void deleteAy(Integer aId);}
```

### 7.3 车辆信息相关

#### 7.3.1 车辆信息VehicleinfoMapper

```java
package com.why.transportsecurity_finally.mapper;import com.why.transportsecurity_finally.entity.VehicleInfo;import org.apache.ibatis.annotations.Mapper;import java.util.List;/** * @Description TODO 车辆基本信息mapper * @Author why * @Date 2021/7/21 11:22 * Version 1.0 **/@Mapperpublic interface VehicleInfoMapper {    /**     * 根据车辆id查询车辆信息     * @param id     * @return     */    public VehicleInfo getVehicle(Integer id);    /**     * 根据车牌号查询车辆信息     * @param vNum     * @return     */    public VehicleInfo getVehicleByVNum(String vNum);    /**     * 获取所有车辆信息     * @return     */    public List<VehicleInfo> getAll();    /**     * 添加司机信息     * @param vehicleInfo     */    public void insertVehicle(VehicleInfo vehicleInfo);    /**     * 根据id删除车辆信息     * @param id     */    public void deleteVehicle(Integer id);    /**     * 修改     * @param vehicleInfo     */    public void updateVehicle(VehicleInfo vehicleInfo);    /**     * 根据车主姓名检索     * @param vName     * @return     */    public VehicleInfo getVehicleByVName(String vName);    /**     * 返回总记录数     * @return     */    public Integer getCount();}
```

## 八、Service层接口设计

### 8.1 管理员相关

#### 8.1.1 AdminService接口设计

```java
package com.why.transportsecurity_finally.service;import com.why.transportsecurity_finally.entity.Admin;import com.why.transportsecurity_finally.entity.AdminAll;import com.why.transportsecurity_finally.entity.AdminInfo;/** * @Description TODO 管理员登录注册 * @Author why * @Date 2021/7/24 16:17 * Version 1.0 **/public interface AdminService {    /**     * 登录     * @param uId     * @param pwd     * @return     */    public boolean login(String uId,String pwd);    /**     * 返回用户姓名     * @param uId     * @return     */    public String loginName(String uId);    /**     * 注册     * @param admin     */    public int register(Admin admin);    /**     * 根据uId获取admin     * @param uId     * @return     */    public Admin getAdmin(String uId);    /**     * 找回密码     * @param uId     * @param toAddress     */    public void findPwd(String uId,String toAddress);    /*****************************************个人信息***********************************/    /**     * 根据管理员id获取管理员信息     * @param uId     * @return     */    public AdminAll getAdminInfo(Integer uId);    /**     * 添加管理员信息     * @param adminInfo     * @return     */    public boolean insertAdminInfo(AdminInfo adminInfo);    /**     * 更新数据     * @param adminAll     * @return     */    public boolean updateAdminInfo(AdminAll adminAll);    /**     * 修改密码     * @param uId     * @param pwdNew     * @param pwdOld     * @return     */    public boolean updatePwd(Integer uId,String pwdNew,String pwdOld);    /**     * 修改密码，找回     * @param uId     * @param pwdNew     * @return     */    public boolean updatePwdFind(String uId,String pwdNew);}
```

### 8.2 事故业务相关

#### 8.2.1 AccidentService接口设计

```java
package com.why.transportsecurity_finally.service;import com.why.transportsecurity_finally.entity.DetailInfo;import com.why.transportsecurity_finally.entity.TotalInfo;import com.why.transportsecurity_finally.entity.VehicleInfo;import org.springframework.stereotype.Service;import java.util.List;/** * @Description TODO 事故信息Service * @Author why * @Date 2021/7/21 11:42 * Version 1.0 **/@Servicepublic interface AccidentService {    /**     * 返回统计信息     *  1. 查询tbl_accident_info表     *  2. 根据v_id查询tbl_vehicle_info表     * @return     */    public List<TotalInfo> totalInfo();    /**     * 返回事故细节信息     * @param VId 车辆基础信息id     * @param aId 事故信息id     * @return     */    public DetailInfo detailInfo(Integer VId, Integer aId);    /**     * 查询车辆基本信息     * @param vId     * @return     */    public VehicleInfo vehicleInfo(Integer vId);    /**     * 查询加速度ax     * @param aId     * @return     */    public List<Double> ax(Integer aId);    /**     * 查询加速度ay     * @param aId     * @return     */    public List<Double> ay(Integer aId);    /**     * 处理事故     * @param aID     */    public void solveAccident(Integer aID);    /**     * 搜索功能     * @param search     * @return     */    public List<TotalInfo> search(String search);}
```

### 8.3 车辆信息相关

#### 8.3.1 VehicleInfoService接口设计

```java
package com.why.transportsecurity_finally.service;import com.github.pagehelper.PageInfo;import com.why.transportsecurity_finally.entity.VehicleInfo;import java.util.List;import java.util.Map;/** * @Description TODO 车辆信息管理 * @Author why * @Date 2021/7/26 14:39 * Version 1.0 **/public interface VehicleService {    /**     * 添加车辆信息     * @param vehicleInfo     */    public boolean insertVehicle(VehicleInfo vehicleInfo);    /**     * 删除车辆信息     * @param id     * @return     */    public boolean deleteVehicle(Integer id);    /**     * 获取所有车辆信息     * @return     */    public Map<Integer,List<VehicleInfo>> getAll(Integer pageNum);    /**     * 修改车辆信息     * @param vehicleInfo     * @return     */    public boolean updateVehicle(VehicleInfo vehicleInfo);    /**     * 搜索     * @param search     * @return     */    public VehicleInfo search(String search);}
```

## 九、Controller层控制转发设计

```java
package com.why.transportsecurity_finally.controller;import com.why.transportsecurity_finally.entity.*;import com.why.transportsecurity_finally.service.AccidentServiceImpl;import com.why.transportsecurity_finally.service.AdminServiceImpl;import com.why.transportsecurity_finally.service.VehicleServiceImpl;import com.why.transportsecurity_finally.utils.*;import io.swagger.annotations.Api;import io.swagger.annotations.ApiOperation;import lombok.extern.java.Log;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.ui.Model;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestMethod;import org.springframework.web.bind.annotation.RequestParam;import org.springframework.web.bind.annotation.ResponseBody;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import javax.servlet.http.HttpSession;import javax.websocket.server.PathParam;import java.util.ArrayList;import java.util.List;import java.util.Map;/** * @Description TODO 事故控制 * @Author why * @Date 2021/7/21 15:54 * Version 1.0 **/@Controller@Log@RequestMapping("/ts")@Api(tags = "事故管理后台")public class AccidentController {    /******************************************事故信息信息****************************/    @Autowired    AccidentServiceImpl accidentService;    @ApiOperation("事故列表")    @RequestMapping("/accident/warning")    public String warning(Model model){        List<TotalInfo> totalInfos = accidentService.totalInfo();        if (totalInfos.size() != 0){            if (!totalInfos.get(0).isStatus()){                model.addAttribute("flag",true);            }else {                model.addAttribute("flag",false);            }        }        model.addAttribute("infos",totalInfos);        return "accidentPage/warning";    }    @ApiOperation("事故数据展示，地址追踪")    @RequestMapping("/accident/info")    public String detailsInfo(HttpServletRequest request,Model model){        String aIds = request.getParameter("aId");        String vIds = request.getParameter("vId");        int aId = Integer.valueOf(aIds);        int vId = Integer.valueOf(vIds);        model.addAttribute("aId",aId);        model.addAttribute("vId",vId);        DetailInfo detailInfo = accidentService.detailInfo(vId,aId);        VehicleInfo vehicleInfo = accidentService.vehicleInfo(vId);        model.addAttribute("vehicle",vehicleInfo);        model.addAttribute("detailInfo",detailInfo);        model.addAttribute("lng",detailInfo.getLng());        model.addAttribute("lat",detailInfo.getLat());        model.addAttribute("address",detailInfo.getAddress());        return "accidentPage/detailsPage";    }    /**     * 右侧信息展示     * @param model     * @param vId     * @param aId     * @return     */    @RequestMapping(value = "/accident/infoRight",method = RequestMethod.GET)    public String showTask(Model model, @RequestParam("vId") Integer vId, @RequestParam("aId") Integer aId,HttpServletRequest request){        DetailInfo detailInfo = accidentService.detailInfo(vId, aId);        model.addAttribute("detailInfo",detailInfo);        VehicleInfo vehicleInfo = accidentService.vehicleInfo(vId);        model.addAttribute("vehicle",vehicleInfo);        List<Double> ax = accidentService.ax(aId);        List<Double> ay = accidentService.ay(aId);        List<Acceleration> axs = new ArrayList<>();        for (int i = 0; i < 3; i++) {            axs.add(new Acceleration(ax.get(i),ay.get(i)));        }        model.addAttribute("aId",aId);        model.addAttribute("vId",vId);        model.addAttribute("acceleration",axs);        return "accidentPage/infoRight";    }    /**     * 左侧信息展示     * @param model     * @param vId     * @param aId     * @return     */    @RequestMapping(value = "/accident/infoLeft",method = RequestMethod.GET)    public String showTaskLeft(Model model, @RequestParam("vId") Integer vId, @RequestParam("aId") Integer aId,HttpServletRequest request){        DetailInfo detailInfo = accidentService.detailInfo(vId, aId);        model.addAttribute("detailInfo",detailInfo);        VehicleInfo vehicleInfo = accidentService.vehicleInfo(vId);        model.addAttribute("vehicle",vehicleInfo);        List<Double> ax = accidentService.ax(aId);        List<Double> ay = accidentService.ay(aId);        List<Acceleration> axs = new ArrayList<>();        for (int i = 0; i < 3; i++) {            axs.add(new Acceleration(ax.get(i),ay.get(i)));        }        model.addAttribute("aId",aId);        model.addAttribute("vId",vId);        model.addAttribute("acceleration",axs);        return "accidentPage/infoLeft";    }    /**     * 数据下载     * @param response     * @param vId     * @param aId     */    @ApiOperation("碰撞数据下载")    @RequestMapping("/accident/download")    public void show(HttpServletResponse response, @RequestParam Integer vId, @RequestParam Integer aId){        //String vName, String vNumber, String vType, String degreeOfDamage, String date,        // String time, double lng, double lat, String address, String collisionDirection,        // String isBounce, double adRAcceleration, double adCAcceleration        List<InfoExcelModel> list = new ArrayList<>();        InfoExcelModel infoExcelModel = new InfoExcelModel();        /**         * 查出车辆基本信息         */        VehicleInfo vehicleInfo = accidentService.vehicleInfo(vId);        infoExcelModel.setVName(vehicleInfo.getVName());        infoExcelModel.setVNumber(vehicleInfo.getVNum());        infoExcelModel.setVType(vehicleInfo.getVType());        /**         * 根据aId查询加速度信息         */        List<Double> ay = accidentService.ay(aId);        List<Double> ax = accidentService.ax(aId);        infoExcelModel.setAdRAcceleration(ax);        infoExcelModel.setAdCAcceleration(ay);        /**         * 封装车辆事故基本信息         */        DetailInfo detailInfo = accidentService.detailInfo(vId, aId);        //String vName, String vNumber, String vType, String degreeOfDamage, String date,        // String time, double lng, double lat, String address, String collisionDirection,        // String isBounce, double adRAcceleration, double adCAcceleration        infoExcelModel.setDriverDegreeOfDamage(detailInfo.getDriverDegreeOfDamage());        infoExcelModel.setPassengerDegreeOfDamage(detailInfo.getPassengerDegreeOfDamage());        infoExcelModel.setDate(detailInfo.getDate());        infoExcelModel.setTime(detailInfo.getTime());        infoExcelModel.setLng(detailInfo.getLng());        infoExcelModel.setLat(detailInfo.getLat());        infoExcelModel.setAddress(detailInfo.getAddress());        infoExcelModel.setCollisionDirection(detailInfo.getDirection());        infoExcelModel.setIsBounce(detailInfo.getIsBounce());        list.add(infoExcelModel);        OutputFileUtils.outputFile(list,response);    }    /**     * 分装加速度信息 备注：需要修改     * 将所有数据封装     * @param model     * @param aId     * @return     */    @ApiOperation("数据分析，图表展示")    @RequestMapping(value = "/accident/tu",method = RequestMethod.GET)    public String axAndAy(Model model,@RequestParam("aId") Integer aId){        List<Double> ax = accidentService.ax(aId);        List<Double> ay = accidentService.ay(aId);        model.addAttribute("ax",ax);        model.addAttribute("ay",ay);        return "accidentPage/tu";    }    @ApiOperation("处理事故")    @RequestMapping(value = "/accident/solve")    public String solveAccident(HttpServletRequest request,Model model){        String aIds = request.getParameter("aId");        String vIds = request.getParameter("vId");        int aId = Integer.valueOf(aIds);        int vId = Integer.valueOf(vIds);        model.addAttribute("aId",aId);        model.addAttribute("vId",vId);        accidentService.solveAccident(Integer.valueOf(aId));        DetailInfo detailInfo = accidentService.detailInfo(vId,aId);        VehicleInfo vehicleInfo = accidentService.vehicleInfo(vId);        model.addAttribute("vehicle",vehicleInfo);        model.addAttribute("detailInfo",detailInfo);        model.addAttribute("lng",detailInfo.getLng());        model.addAttribute("lat",detailInfo.getLat());        model.addAttribute("address",detailInfo.getAddress());        System.out.println(detailInfo.isState());        return "accidentPage/detailsPage";    }    /**     * 搜寻事故信息     * @param request     * @param model     * @return     */    @ApiOperation("搜索事故信息")    @RequestMapping("/accident/totalSearch")    public String search(HttpServletRequest request,Model model){        String search = request.getParameter("search");        if (search == null || search == ""){            log.warning("搜索输入为空");            return "redirect:/ts/accident/warning";        }        List<TotalInfo> totalInfos = accidentService.search(search);        if (totalInfos.size() != 0){            if (!totalInfos.get(0).isStatus()){                model.addAttribute("flag",true);            }else {                model.addAttribute("flag",false);            }        }        model.addAttribute("infos",totalInfos);        return "accidentPage/warning";    }    /******************************************管理员信息****************************/    @Autowired    AdminServiceImpl adminService;    @RequestMapping("/accident/showLogin")    public String showLogin(){        return "adminPage/signIn";    }    @RequestMapping("/accident/showRegister")    public String showRegister(){        return "adminPage/register";    }    @ApiOperation("登录")    @RequestMapping("/accident/login")    public String login(Model model, HttpServletRequest request, HttpServletResponse response){        String uId = request.getParameter("userId");        String pwd = request.getParameter("pwd");        boolean login = adminService.login(uId, pwd);        if (!login){            model.addAttribute("loginError","用户名或密码输入错误");            return "adminPage/signIn";        }        CookieSessionUtils.cookieAndSession(request,response,uId);        HttpSession session = request.getSession();        session.setAttribute("login",adminService.loginName(uId));        session.setAttribute("loginAdmin",uId);        return "redirect:/ts/accident/warning";    }    @ApiOperation("注册")    @RequestMapping("/accident/register")    public String register(Model model,HttpServletRequest request){        Admin admin = new Admin();        String uId = request.getParameter("uId");        String uName = request.getParameter("uName");        String uPhone = request.getParameter("uPhone");        String pwd = request.getParameter("pwd");        admin.setUId(uId);        admin.setUName(uName);        admin.setUPwd(pwd);        int register = adminService.register(admin);        if (register == 1){            model.addAttribute("registerError","输入不能为空");            return "adminPage/register";        }        if (register == 2){            model.addAttribute("registerError","用户名已存在");            return "adminPage/register";        }        Admin admin1 = adminService.getAdmin(uId);        AdminInfo adminInfo = new AdminInfo();        adminInfo.setUId(admin1.getId());        adminInfo.setUPhone(uPhone);        adminService.insertAdminInfo(adminInfo);        return "redirect:/ts/accident/showLogin";    }    @ApiOperation("注销账号")    @RequestMapping("/accident/logOut")    public String logOut(HttpServletRequest request,HttpServletResponse response){        log.info("正在登出...");        CookieSessionUtils.deleteCookiesAndSession(request,response);        return "redirect:/ts/accident/showLogin";    }    /**     *个人中心     * @return     */    @ApiOperation("个人中心")    @RequestMapping("/accident/personal")    public String showPerson(HttpServletRequest request,Model model){        String uIds = (String) request.getSession().getAttribute("loginAdmin");        Admin admin = adminService.getAdmin(uIds);        if (admin == null){            log.warning("未登录，请重新登录！");            return "redirect:/ts/accident/showLogin";        }        AdminAll adminInfo = adminService.getAdminInfo(admin.getId());        model.addAttribute("adminAll",adminInfo);        return "adminPage/personalCenter";    }    /**     * 基本信息修改     * @param request     * @return     */    @ApiOperation("管理员基本信息修改")    @RequestMapping("/accident/personalUpdate")    public String updateInfo(HttpServletRequest request){        String uName = request.getParameter("uName");        String uIds = request.getParameter("uIds");        String uPhone = request.getParameter("uPhone");        String uEmail = request.getParameter("uEmail");        String uAddress = request.getParameter("uAddress");        String uBirth = request.getParameter("uBirth");        String uDate = request.getParameter("uDate");        String id = request.getParameter("id");        String uId = request.getParameter("uId");        AdminAll adminAll = new AdminAll(uIds, uName, Integer.valueOf(id), uPhone, uEmail, uAddress, uBirth, uDate, Integer.valueOf(uId));        boolean b = adminService.updateAdminInfo(adminAll);        if (!b){            return "redirect:/ts/accident/personal";        }        return "redirect:/ts/accident/personal";    }    @ApiOperation("管理员设置新密码")    @RequestMapping("/accident/newPwd")    public String updatePwd(HttpServletRequest request){        String uId = request.getParameter("uId");        String oldPwd = request.getParameter("uOldPwd");        String pwdNew = request.getParameter("uNewPwdPre");        boolean b = adminService.updatePwd(Integer.valueOf(uId), pwdNew, oldPwd);        if (!b){            return "redirect:/ts/accident/personal";        }        return "redirect:/ts/accident/personal";    }    @RequestMapping("/accident/showFindPre")    public String findPwdPre(){        return "adminPage/findPwd";    }    /**     * 发送验证码     * @param phone     * @param uId     */    @ApiOperation("密码找回发送验证码")    @RequestMapping(value = "/accident/sendPhone",method = RequestMethod.GET)    @ResponseBody    public void add(@PathParam("phone") String phone, @PathParam("uId") String uId){        if (phone == null){            log.warning("电话号码输入为空！");            return;        }        if (uId == null) {            log.warning("uId输入为空");            return;        }        //查询是否存在用户        Admin admin = adminService.getAdmin(uId);        if (admin == null){            log.warning("密码找回，用户不存在");            return;        }        AdminAll adminInfo = adminService.getAdminInfo(admin.getId());        if (!adminInfo.getUPhone().equals(phone)){            log.warning("输入电话未绑定");            return;        }        //存在用户，修改密码，发送短信        String newPwd = RandomUtils.getRandom();        boolean b = adminService.updatePwdFind(uId, newPwd);        if (!b){            log.warning("找回密码，修改密码失败");            return;        }        String[] phoneNum = {phone};        String[] params = {newPwd};        PhoneUtils.sendPhoneMail(phoneNum,params);    }    /**     * 根据验证码登录     * @param request     * @param model     * @return     */    @ApiOperation("验证码登录")    @RequestMapping("/accident/findPwd")    public String findPwd(HttpServletRequest request,Model model,HttpServletResponse response){        String uId = request.getParameter("uId");        String toAddress = request.getParameter("toPwd");        boolean login = adminService.login(uId, toAddress);        if (!login){            log.warning("验证码错误");            model.addAttribute("msg","验证码错误");            return "adminPage/findPwd";        }        CookieSessionUtils.cookieAndSession(request,response,uId);        HttpSession session = request.getSession();        session.setAttribute("login",adminService.loginName(uId));        session.setAttribute("loginAdmin",uId);        return "redirect:/ts/accident/warning";    }    /******************************************车辆信息****************************/    @Autowired    VehicleServiceImpl vehicleService;    /**     * 展示所有车辆信息     * @param model     * @return     */    @ApiOperation("车辆信息统计")    @RequestMapping("/accident/vehicles")    public String vehicles(Model model,@PathParam("pageNum") Integer pageNum){        Map<Integer, List<VehicleInfo>> serviceAll = vehicleService.getAll(pageNum);        Integer count = null;        List<VehicleInfo> vehicles = null;        for (Map.Entry entry : serviceAll.entrySet()) {            count = (Integer) entry.getKey();            vehicles = (List<VehicleInfo>) entry.getValue();        }        model.addAttribute("vehicles",vehicles);        model.addAttribute("pageNum",pageNum);        if ((count % 10) == 0){            count = count / 10;        }else {            count = count / 10 +1;        }        if (count >= pageNum + 1){            model.addAttribute("next1",true);        }        if (count >= pageNum + 2){            model.addAttribute("next2",true);        }        return "vehiclePage/vehicleInfo";    }    /**     * 修改车辆信息     * @param request     * @return     */    @ApiOperation("修改车辆信息")    @RequestMapping("/accident/updateVehicle")    public String updateVehicle(HttpServletRequest request){        String id = request.getParameter("id");        String vNum = request.getParameter("vNum");        String vName = request.getParameter("vName");        String vType = request.getParameter("vType");        VehicleInfo vehicleInfo = new VehicleInfo(Integer.valueOf(id), vName, vNum, vType);        boolean b = vehicleService.updateVehicle(vehicleInfo);        if (!b){            log.warning(vNum + "信息更新失败");            return "redirect:/ts/accident/vehicles";        }        log.info(vNum + "信息更新成功");        return "redirect:/ts/accident/vehicles?pageNum=1";    }    /**     * 删除车辆信息     * @param request     * @return     */    @ApiOperation("删除车辆信息")    @RequestMapping("/accident/deleteVehicle")    public String deleteVehicle(HttpServletRequest request){        String id = request.getParameter("id");        String vNum = request.getParameter("vNum");        boolean b = vehicleService.deleteVehicle(Integer.valueOf(id));        if (!b){            log.warning(vNum + "车辆信息删除失败");            return "redirect:/ts/accident/vehicles";        }        log.warning(vNum + "车辆信息删除成功");        return "redirect:/ts/accident/vehicles?pageNum=1";    }    @ApiOperation("添加车辆信息")    @RequestMapping("/accident/insertVehicle")    public String insertVehicle(HttpServletRequest request){        String vName = request.getParameter("vName");        String vNum = request.getParameter("vNum");        String vType = request.getParameter("vType");        boolean b = vehicleService.insertVehicle(new VehicleInfo(1, vName, vNum, vType));        if (!b){            log.warning(vNum + "车辆信息添加失败");            return "redirect:/ts/accident/vehicles";        }        log.warning(vNum + "车辆信息添加成功");        return "redirect:/ts/accident/vehicles?pageNum=1";    }    @ApiOperation("搜索车辆信息")    @RequestMapping("/accident/searchVehicle")    public String searchvehicle(HttpServletRequest request,Model model){        String search = request.getParameter("search");        if (search == null || search == ""){            return "redirect:/ts/accident/vehicles";        }        VehicleInfo vehicleInfo = vehicleService.search(search);        List<VehicleInfo> vehicles = new ArrayList<>();        vehicles.add(vehicleInfo);        model.addAttribute("vehicles",vehicles);        return "vehiclePage/vehicleInfo";    }}
```

## 十、Filter拦截器设计

### 10.1 登录认证Filter

```java
package com.why.transportsecurity_finally.filter;import com.why.transportsecurity_finally.utils.CookieSessionUtils;import lombok.extern.java.Log;import org.springframework.web.servlet.HandlerInterceptor;import org.springframework.web.servlet.ModelAndView;import javax.servlet.http.Cookie;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import javax.servlet.http.HttpSession;import java.util.Arrays;import java.util.Enumeration;/** * @Description TODO 拦截器，登录检查 * @Author why * @Date 2021/7/24 17:16 * Version 1.0 **/@Logpublic class LoginFilter implements HandlerInterceptor {    /**     * 目标方法执行前，登录检查     *  1. 配置好拦截器拦截的请求     *  2. 把拦截器配置放在容器中     * @param request     * @param response     * @param handler     * @return     * @throws Exception     */    @Override    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {        log.info("LoginFilter拦截的请求："+request.getRequestURI());        /**         * 登录检查逻辑         */        HttpSession session = request.getSession();        Cookie[] cookies = request.getCookies();        if (cookies==null){            log.info("首次登录");            response.sendRedirect("/ts/accident/showLogin");            return false;        }        String ssid = null;        for (Cookie cookie : cookies) {            if (cookie.getName().equals("name") && session.getAttribute(cookie.getValue()) != null){               ssid = (String) session.getAttribute(cookie.getValue());            }            if (cookie.getName().equals("val") && cookie.getValue().equals(ssid)){                log.info(request.getRequestURL() + "登录验证成功");                //验证成功放行                return true;            }        }        log.warning("未登录或session已失效");        response.sendRedirect("/ts/accident/showLogin");        return false;    }    /**     * 目标方法执行后     * @param request     * @param response     * @param handler     * @param modelAndView     * @throws Exception     */    @Override    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {    }    /**     * 页面渲染后     * @param request     * @param response     * @param handler     * @param ex     * @throws Exception     */    @Override    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {    }}
```

### 10.2 日志打印Filter

```java
package com.why.transportsecurity_finally.filter;import com.why.transportsecurity_finally.utils.IpUtils;import lombok.extern.java.Log;import org.springframework.web.servlet.HandlerInterceptor;import org.springframework.web.servlet.ModelAndView;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;/** * @Description TODO 日志监控 * @Author why * @Date 2021/7/25 10:38 * Version 1.0 **/@Logpublic class LogFilter implements HandlerInterceptor {    @Override    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {        log.info(IpUtils.getIP(request) + "正在访问："+request.getRequestURL());        return true;    }    @Override    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {    }    @Override    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {    }}
```

## 十一、相关配置类

### 11.1 向Spring容器中添加filter组件

```java
package com.why.transportsecurity_finally.config;import com.why.transportsecurity_finally.filter.LogFilter;import com.why.transportsecurity_finally.filter.LoginFilter;import org.springframework.context.annotation.Configuration;import org.springframework.web.servlet.config.annotation.InterceptorRegistry;import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;/** * @Description TODO 登陆检查filter配置 * @Author why * @Date 2021/7/24 17:21 * Version 1.0 **/@Configurationpublic class AdminWebConfig implements WebMvcConfigurer {    /**     * 登陆检查filter配置     * @param registry     */    @Override    public void addInterceptors(InterceptorRegistry registry) {        registry.addInterceptor(new LoginFilter())                .addPathPatterns("/**") //拦截的请求                .excludePathPatterns("/ts/accident/showLogin","/ts/accident/login","/ts/accident/showRegister"                        ,"/ts/accident/register","/ts/accident/showFindPre","/ts/accident/findPwd","/ts/accident/sendPhone"                        ,"/css/**","/img/**","/mapper/**","/js/**","/music/**","/favicon.ico","/error/**","/druid/login.html");//放行的请求        registry.addInterceptor(new LogFilter()).addPathPatterns("/**");    }}
```

### 11.2 Druid数据库连接池配置

```java
package com.why.transportsecurity_finally.config;import com.alibaba.druid.pool.DruidDataSource;import com.alibaba.druid.support.http.StatViewServlet;import com.alibaba.druid.support.http.WebStatFilter;import org.springframework.boot.context.properties.ConfigurationProperties;import org.springframework.boot.web.servlet.FilterRegistrationBean;import org.springframework.boot.web.servlet.ServletRegistrationBean;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import javax.sql.DataSource;import java.util.Arrays;import java.util.HashMap;import java.util.Map;/** * @Description TODO Druid配置使其他druid属性生效 * @Author why * @Date 2021/7/30 14:58 * Version 1.0 **/@Configurationpublic class DruidConfig {    @ConfigurationProperties(prefix = "spring.datasource")//将以spring.datasource为前缀的属性绑定至容器    @Bean    public DataSource druid(){        return new DruidDataSource();    }    /**     * 配置druid监控     */    //1.配置管理后台的Servlet    @Bean    public ServletRegistrationBean statViewServlet(){        ServletRegistrationBean bean = new ServletRegistrationBean(new StatViewServlet(), "/druid/*");        //配置初始化参数        //配置的参数可在StatViewServlet()和StatViewServlet()的ResourceServlet父类中查看        Map<String,String> initParams = new HashMap<>();        //登录后台系统用户名        initParams.put("loginUsername","admin");        //登录后台系统密码        initParams.put("loginPassword","123456");        //允许谁访问        initParams.put("allow","");//第二个参数不写或者为null时默认允许所有访问        //配置拒绝谁访问        initParams.put("deny","");        bean.setInitParameters(initParams);        return bean;    }    //2.配置一个监控的filter    @Bean    public FilterRegistrationBean webStatFilter(){        FilterRegistrationBean bean = new FilterRegistrationBean();        bean.setFilter(new WebStatFilter());        //设置初始化参数        //配置的参数可在WebStatFilter()中查看        Map<String,String> initParams = new HashMap<>();        //排除拦截的请求        initParams.put("exclusions","*.js,*.css,/druid/*");        bean.setInitParameters(initParams);        //设置拦截的请求        bean.setUrlPatterns(Arrays.asList("/*"));        return bean;    }}
```

## 十二、配置文件

### 12.1 application.properties

```properties
#数据库spring.datasource.username=root#spring.datasource.password=Why190810#spring.datasource.url=jdbc:mysql://10.0.8.2:3306/transportsecurity_latestspring.datasource.password=rootspring.datasource.url=jdbc:mysql://localhost:3306/transportsecurity_latest?zeroDateTimeBehavior=convertToNull&useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC&autoReconnect=truespring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver#mybatismybatis.mapper-locations=classpath:mapper/*.xmlmybatis.type-aliases-package=com.why.transportsecurity_finally.entity#开启驼峰命名mybatis.configuration.map-underscore-to-camel-case=true#日志的相关配置logging.file.name=transportSecurity.loglogging.pattern.console=%d{yyyy-MM-dd HH:mm:SSS} [%thread] %-5level %logger{50} - %msg%n#指定文件中日志的输出格式logging.pattern.file=%d{yyyy-MM-dd HH:mm:SSS} === [%thread] === %-5level === %logger{50} === %msg%n#禁用模板引擎缓存spring.thymeleaf.cache=false#项目设置server.port=80#Swagger接口文档配置swagger.base-path=/**swagger.base-package=com.whyswagger.title=transport_security_newswagger.description=基于Swagger构建的SpringBoot RESTApi文档swagger.version=1.0swagger.contact.name=whyswagger.contact.url=http://www.tsn.cnswagger.contact.email=why_enterprise@163.com
```

### 12.1 application.yaml

```yaml
spring:  datasource:    #   数据源基本配置    username: root    password: root    driver-class-name: com.mysql.cj.jdbc.Driver    url: jdbc:mysql://localhost:3306/transportsecurity_latest    type: com.alibaba.druid.pool.DruidDataSource    #   数据源其他配置    initialSize: 5    minIdle: 5    maxActive: 20    maxWait: 60000    timeBetweenEvictionRunsMillis: 60000    minEvictableIdleTimeMillis: 300000    validationQuery: SELECT 1 FROM DUAL    testWhileIdle: true    testOnBorrow: false    testOnReturn: false    poolPreparedStatements: true    #   配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙    filters: stat,wall    maxPoolPreparedStatementPerConnectionSize: 20    useGlobalDataSourceStat: true    connectionProperties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500
```

## 十三、工具类设计

### 13.1 事故相关

#### 13.11 AccidentUtils

计算碰撞方向，损伤程度等

```java
package com.why.transportsecurity_finally.utils;import java.util.Iterator;import java.util.List;/** * @Description TODO 事故处理工具类 * @Author why * @Date 2021/7/21 14:20 * Version 1.0 **/public class AccidentUtils {    /**     * 计算vx     * @param ax     * @return     */    public static double vx(List<Double> ax){        double vx = 0.00;        Iterator<Double> iterator = ax.iterator();        while (iterator.hasNext()) {            Double next = iterator.next();            vx = vx + next;        }        return vx * 0.011;    }    /**     * 计算vy     * @param ay     * @return     */    public static double vy(List<Double> ay){        double vy = 0.00;        Iterator<Double> iterator = ay.iterator();        while (iterator.hasNext()) {            Double next = iterator.next();            vy = vy + next;        }        return vy * 0.021;    }    /**     * 计算pdof     * @param vx     * @param vy     * @return     */    public static double pdof(double vx,double vy){        if (vx == 0.00){            throw new RuntimeException("分母不能为零");        }        double pdof = 0.00;        double temp = Math.toDegrees(Math.atan(vy/vx));        if (vx >= 0 && vy <=0){            pdof = temp + 180;        }else if (vx >= 0 && vy >= 0){            pdof = temp - 180;        }else if (vx < 0){            pdof = temp;        }        return pdof;    }    /**     * 计算碰撞方向     * 1：正面碰撞，2：左侧碰撞，3：追尾碰撞，4：右侧碰撞     * @param pdof     * @return     */    public static int direction(double pdof){        int flag = 0;        if (pdof >= -45 && pdof < 45){            flag = 1;        }else if (pdof >= -135 && pdof <-45){            flag = 2;        }else if (pdof >= -135 && pdof < 135){            flag = 3;        }else {            flag = 4;        }        return flag;    }    /**     * 计算驾驶员损伤程度     * @param direction 碰撞方向     * @param isBounce 安全气囊是否弹开，true：弹开，false：未弹开     * @return true：严重损伤，false：一般损伤     */    public static boolean driverDegreeOfDamage(int direction,boolean isBounce,double vx){        double p = 0.00;        if (direction == 1){//正面碰撞            if (isBounce){//安全气囊弹开                p = 1.000/(1.000 + Math.exp(7.91+0.145*vx));            }else {//安全气囊未弹开                p = 1.000 / (1.000 + Math.exp(5.43+0.145*vx));            }        }else if (direction == 2){            if (isBounce){//安全气囊弹开                p = 1.000/(1.000 + Math.exp(5.134+0.145*vx));            }else {//安全气囊未弹开                p = 1.000 / (1.000 + Math.exp(2.654+0.145*vx));            }        }        return p > 0.189;    }    /**     * 后排乘客损伤程度     * @param vx     * @return true：严重损伤，false：一般损伤     */    public static boolean passengerDegreeOfDamage(double vx){        if (vx == 0.000){            throw new RuntimeException("分母不能为0");        }        double p = 1.000 / (1.000 + Math.exp(10.614-3.477 * (1.000/vx) + 0.2128*vx));        return p > 0.29;    }}
```

#### 13.1.2 DateFormatUtis

日期格式化工具类

```java
package com.why.transportsecurity_finally.utils;import java.text.ParseException;import java.text.SimpleDateFormat;import java.util.Date;/** * @Description TODO 时间格式化处理 * @Author why * @Date 2021/6/4 13:32 * Version 1.0 **/public class DateFormatUtils {    /**     * 返回当前时间的long值     * @return     */    public static long dateLong(){        return new Date().getTime();    }    /**     * 时间戳long值转换为yyyy-MM-dd HH:mm:ss时间     * @param time     * @return     */    public static String myFormatTime(long time){        SimpleDateFormat df = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");        return df.format(time);    }    public static java.sql.Date stringToDate(String dateStr){        SimpleDateFormat format = new SimpleDateFormat("yyyy-MM-dd");        Date date = null;        try {            date = format.parse(dateStr);        } catch (ParseException e) {            e.printStackTrace();        }        java.sql.Date date1 = new java.sql.Date(date.getTime());        return date1;    }}
```

#### 13.1.3 OutputFileUtis

输出数据到excel文件工具类

```java
package com.why.transportsecurity_finally.utils;import com.why.transportsecurity_finally.entity.InfoExcelModel;import org.apache.poi.ss.usermodel.*;import org.apache.poi.xssf.usermodel.XSSFCellStyle;import org.apache.poi.xssf.usermodel.XSSFSheet;import org.apache.poi.xssf.usermodel.XSSFWorkbook;import javax.servlet.http.HttpServletResponse;import java.io.IOException;import java.io.OutputStream;import java.io.UnsupportedEncodingException;import java.net.URLEncoder;import java.util.List;/** * @Description TODO 文件下载 * @Author why * @Date 2021/7/22 11:06 * Version 1.0 **/public class OutputFileUtils {    public static void outputFile(List<InfoExcelModel> list, HttpServletResponse response){        //新建工作簿        XSSFWorkbook workbook = new XSSFWorkbook();        //列名数组        String[] columnNames = {"车主","车牌号","车辆类型","驾驶员损伤情况","后排乘员损伤情况","日期","时间","经度","纬度","地址","碰撞方向","安全气囊是否弹开","横向加速度","纵向加速度"};        //新建sheet        XSSFSheet sheet = workbook.createSheet();        //新建字体        Font font = workbook.createFont();        font.setFontName("simsun");        font.setBold(true);        font.setColor(IndexedColors.BLACK.index);        //新建样式        XSSFCellStyle titleStyle = workbook.createCellStyle();        titleStyle.setAlignment(HorizontalAlignment.CENTER);        titleStyle.setVerticalAlignment(VerticalAlignment.CENTER);        titleStyle.setFillPattern(FillPatternType.SOLID_FOREGROUND);        titleStyle.setFillForegroundColor(IndexedColors.YELLOW.index);        titleStyle.setFont(font);        //创建一行        Row titleRow = sheet.createRow(0);        //设置一行的单元格的值        for (int i = 0; i < columnNames.length; i++) {            Cell cell = titleRow.createCell(i);            cell.setCellValue(columnNames[i]);            cell.setCellStyle(titleStyle);        }        String number = null;        //添加数据        int lastRowNum = 0;        for (int i = 0; i < list.size(); i++) {            InfoExcelModel infoExcelModel = list.get(i);            lastRowNum = lastRowNum + 1;            //创建新行            Row dataRow = sheet.createRow(lastRowNum);            //创建单元格添加数据            //"车主","车牌号","车辆类型","损伤情况","日期","时间","经度","纬度","地址","碰撞方向","安全气囊是否弹开","横向加速度","纵向加速度"            dataRow.createCell(0).setCellValue(infoExcelModel.getVName());            number = infoExcelModel.getVNumber();            dataRow.createCell(1).setCellValue(infoExcelModel.getVNumber());            dataRow.createCell(2).setCellValue(infoExcelModel.getVType());            dataRow.createCell(3).setCellValue(infoExcelModel.getDriverDegreeOfDamage());            dataRow.createCell(4).setCellValue(infoExcelModel.getPassengerDegreeOfDamage());            dataRow.createCell(5).setCellValue(infoExcelModel.getDate());            dataRow.createCell(6).setCellValue(infoExcelModel.getTime());            dataRow.createCell(7).setCellValue(infoExcelModel.getLng());            dataRow.createCell(8).setCellValue(infoExcelModel.getLat());            dataRow.createCell(9).setCellValue(infoExcelModel.getAddress());            dataRow.createCell(10).setCellValue(infoExcelModel.getCollisionDirection());            dataRow.createCell(11).setCellValue(infoExcelModel.getIsBounce());            dataRow.createCell(12).setCellValue(infoExcelModel.getAdRAcceleration().get(0));            dataRow.createCell(13).setCellValue(infoExcelModel.getAdCAcceleration().get(0));        }        if (list != null && list.size() > 0 ){            InfoExcelModel infoExcelModel = list.get(0);            int max = 0;            boolean flag = true;            if (infoExcelModel.getAdRAcceleration().size() >= infoExcelModel.getAdCAcceleration().size()){                max = infoExcelModel.getAdRAcceleration().size();                flag = true;            }else {                max = infoExcelModel.getAdCAcceleration().size();                flag = false;            }            int lastRowNumR = 1;            for (int i = 0; i < max-1; i++) {                Row dataRow = sheet.createRow(lastRowNumR + 1);                double ax = 0.000;                double ay = 0.000;                if (flag){                    if (i > infoExcelModel.getAdCAcceleration().size() - 2){                        ay = 0.000;                    }else {                        ay = infoExcelModel.getAdCAcceleration().get(i+1);                    }                    ax = ax = infoExcelModel.getAdRAcceleration().get(i+1);                }else {                    if (i > infoExcelModel.getAdRAcceleration().size() -2){                        ax = 0.000;                    }else {                        ax = infoExcelModel.getAdRAcceleration().get(i+1);                    }                    ay = infoExcelModel.getAdCAcceleration().get(i+1);                }                dataRow.createCell(12).setCellValue(ax);                dataRow.createCell(13).setCellValue(ay);                lastRowNumR++;            }        }        try {            response.setContentType("application/vnd.ms-excel");            if (number != null){                response.setHeader("content-Disposition", "attachment;filename=" + URLEncoder.encode(number+".xlsx", "utf-8"));            }else {                response.setHeader("content-Disposition", "attachment;filename=" + URLEncoder.encode("data.xlsx", "utf-8"));            }            response.setHeader("Access-Control-Expose-Headers", "content-Disposition");            OutputStream outputStream = response.getOutputStream();            workbook.write(outputStream);            outputStream.flush();            outputStream.close();        } catch (UnsupportedEncodingException e) {            e.printStackTrace();        } catch (IOException e) {            e.printStackTrace();        }    }}
```

#### 13.1.4 BaiduMapUtils

百度地图正\逆地址解析

```java
package com.why.transportsecurity_finally.utils;import com.alibaba.fastjson.JSONObject;import lombok.extern.slf4j.Slf4j;import java.io.BufferedReader;import java.io.InputStreamReader;import java.net.URL;import java.net.URLConnection;/** * @Description TODO 百度地图逆地址解析 * @Author why * @Date 2021/6/5 16:32 * Version 1.0 **/@Slf4jpublic class BaiduMapUtils {    //应用ak    private static final String MAP_AK = "pEW1fFdsLBZdKFhUUtmtSgtL4cyAdcxe";    //接口地址    public static String MAP_URL = "http://api.map.baidu.com/reverse_geocoding/v3/?ak=" + MAP_AK+"&output=json&coordtype=bd09ll$addressComponent=street_number&level=门址";    /**     * 将经纬度获取解析成详细地址     *     * @param lng     *            经度     * @param lat     *            纬度     * @return     */    public static String getAddress(double lng, double lat) {        String address = "";        String location = lat + "," + lng;        BufferedReader in = null;        URL url = null;        URLConnection connection = null;        try {            url = new URL(MAP_URL + "&location=" + location);            connection = url.openConnection();            connection.setDoOutput(true);            in = new BufferedReader(new InputStreamReader(url.openStream(), "UTF-8"));            String line;            StringBuilder text = new StringBuilder("");            while ((line = in.readLine()) != null) {                text.append(line.trim());            }            JSONObject result = JSONObject.parseObject(text.toString());            if (result != null && result.getIntValue("status") == 0) {                log.debug(String.valueOf(result.getJSONObject("result")));                address = result.getJSONObject("result").getString("formatted_address") + "-" + result.getJSONObject("result").getString("business");            }        } catch (Exception e) {            e.printStackTrace();        }        return address;    }    /**     * 将地址解析成经纬度     *     * @param address     *            地址，例：浙江省杭州市西湖区     * @return 返回经纬度数据。例：{"lng":120.08899292561351,"lat":30.207036169515438}     */    public static JSONObject getPosition(String address) {        BufferedReader in = null;        URL url = null;        URLConnection connection = null;        try {            url = new URL("http://api.map.baidu.com/geocoding/v3/?address="+address+"&output=json&ak="+MAP_AK+"&callback=showLocation&confidence=100&comprehension=100&level=道路");            connection = url.openConnection();            connection.setDoOutput(true);            in = new BufferedReader(new InputStreamReader(url.openStream(), "UTF-8"));            String line;            StringBuilder text = new StringBuilder("");            while ((line = in.readLine()) != null) {                text.append(line.trim());            }            JSONObject result = JSONObject.parseObject(text.toString());            if (result != null && result.getIntValue("status") == 0) {                return result.getJSONObject("result").getJSONObject("location");            }        } catch (Exception e) {            e.printStackTrace();        }        return null;    }}
```

### 13.2 管理员相关

#### 13.2.1 CookieSessionUtils

添加\移除Cookie和Session

```java
package com.why.transportsecurity_finally.utils;import lombok.extern.java.Log;import javax.servlet.http.Cookie;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import javax.servlet.http.HttpSession;import java.util.Collections;import java.util.Enumeration;import java.util.UUID;/** * @Description TODO cookie + session登录认证 * @Author why * @Date 2021/7/24 17:07 * Version 1.0 **/@Logpublic class CookieSessionUtils {    /**     * 1.创建session     * 2.创建cookie     * @param request     */    public static void cookieAndSession(HttpServletRequest request, HttpServletResponse response, String uId){        String uuid = UUID.randomUUID().toString();        HttpSession session = request.getSession();        byte[] key = Sm4Util.getBytes("whylovewyy", 16);        byte[] bytes = null;        try {            bytes = Sm4Util.encryptEcbPkcs5Padding(uId.getBytes(), key);        } catch (Exception e) {            e.printStackTrace();        }        session.setAttribute(uuid,bytes.toString());        Cookie cookieName = new Cookie("name",uuid);        Cookie cookieVal = new Cookie("val",bytes.toString());        response.addCookie(cookieName);        response.addCookie(cookieVal);    }    public static void deleteCookiesAndSession(HttpServletRequest request, HttpServletResponse response){        Cookie[] cookies = request.getCookies();        for (Cookie cookie : cookies) {            if (cookie.getName().equals("name")){                cookie.setValue(null);                response.addCookie(cookie);            }            if (cookie.getName().equals("val")){                cookie.setValue(null);                response.addCookie(cookie);            }        }        HttpSession session = request.getSession();        session.invalidate();    }}
```

#### 13.2.2 IpUtis

获取访问用户的IP

```java
package com.why.transportsecurity_finally.utils;import javax.servlet.http.HttpServletRequest;import java.net.InetAddress;import java.net.UnknownHostException;/** * @Description TODO 获取真实IP * @Author why * @Date 2021/7/25 10:43 * Version 1.0 **/public class IpUtils {    /**     * 获取客户端IP地址，针对Nginx等反代作处理     * @param request     * @return     */    public static String getIP(HttpServletRequest request){        String ip = request.getHeader("x-forwarded-for");        if(ip == null || ip.length() == 0 ||     "unknown".equalsIgnoreCase(ip)) {            ip = request.getHeader("Proxy-Client-IP");        }        if(ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {            ip = request.getHeader("WL-Proxy-Client-IP");        }        if(ip==null || ip.length()==0 || "unknown".equalsIgnoreCase(ip)){            ip=request.getHeader("X-Real-IP");        }        if(ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {            ip = request.getRemoteAddr();            if(ip.equals("127.0.0.1") || ip.equals("0:0:0:0:0:0:0:1")){                //根据网卡取本机配置的IP                InetAddress inet=null;                try {                    inet = InetAddress.getLocalHost();                } catch (UnknownHostException e) {                    e.printStackTrace();                }                ip= inet.getHostAddress();            }        }        //对于通过多个代理的情况，第一个IP为客户端真实IP,多个IP按照','分割        if(ip!=null && ip.length()>15){ //"***.***.***.***".length() = 15            if(ip.indexOf(",")>0){                ip = ip.substring(0,ip.indexOf(","));            }        }        return ip;    }}
```

#### 13.2.3 MailUtils

发送email进行密码找回

```java
package com.why.transportsecurity_finally.utils;import com.sun.mail.util.MailSSLSocketFactory;import javax.mail.Address;import javax.mail.Message;import javax.mail.Session;import javax.mail.Transport;import javax.mail.internet.InternetAddress;import javax.mail.internet.MimeMessage;import java.io.FileOutputStream;import java.io.OutputStream;import java.util.Date;import java.util.Properties;/** * @Description TODO 发送邮件依赖 * @Author why * @Date 2021/7/27 16:55 * Version 1.0 **/public class MailUtils {    //邮件服务器主机名    // QQ邮箱的 SMTP 服务器地址为: smtp.qq.com    private static String myEmailSMTPHost = "smtp.qq.com";    //发件人邮箱    private static String myEmailAccount = "488009667@qq.com";    //发件人邮箱密码（授权码）    //在开启SMTP服务时会获取到一个授权码，把授权码填在这里    private static String myEmailPassword = "vffphffvdvhgcaii";    /**     * 邮件单发（自由编辑短信，并发送，适用于私信）     *     * @param toEmailAddress 收件箱地址     * @param emailTitle 邮件主题     * @param emailContent 邮件内容     * @throws Exception     */    public static void sEmail(String toEmailAddress, String emailTitle, String emailContent) throws Exception{        Properties props = new Properties();        // 开启debug调试        props.setProperty("mail.debug", "true");        // 发送服务器需要身份验证        props.setProperty("mail.smtp.auth", "true");        // 端口号        props.put("mail.smtp.port", 465);        // 设置邮件服务器主机名        props.setProperty("mail.smtp.host", myEmailSMTPHost);        // 发送邮件协议名称        props.setProperty("mail.transport.protocol", "smtp");        /**SSL认证，注意腾讯邮箱是基于SSL加密的，所以需要开启才可以使用**/        MailSSLSocketFactory sf = new MailSSLSocketFactory();        sf.setTrustAllHosts(true);        //设置是否使用ssl安全连接（一般都使用）        props.put("mail.smtp.ssl.enable", "true");        props.put("mail.smtp.ssl.socketFactory", sf);        //创建会话        Session session = Session.getInstance(props);        //获取邮件对象        //发送的消息，基于观察者模式进行设计的        Message msg = new MimeMessage(session);        //设置邮件标题        msg.setSubject(emailTitle);        //设置邮件内容        //使用StringBuilder，因为StringBuilder加载速度会比String快，而且线程安全性也不错        StringBuilder builder = new StringBuilder();        //写入内容        builder.append("\n" + emailContent);        //设置显示的发件时间        msg.setSentDate(new Date());        //设置邮件内容        msg.setText(builder.toString());        //设置发件人邮箱        // InternetAddress 的三个参数分别为: 发件人邮箱, 显示的昵称(只用于显示, 没有特别的要求), 昵称的字符集编码        msg.setFrom(new InternetAddress(myEmailAccount,"我的工作站", "UTF-8"));        //得到邮差对象        Transport transport = session.getTransport();        //连接自己的邮箱账户        //密码不是自己QQ邮箱的密码，而是在开启SMTP服务时所获取到的授权码        //connect(host, user, password)        transport.connect( myEmailSMTPHost, myEmailAccount, myEmailPassword);        //发送邮件        transport.sendMessage(msg, new Address[] { new InternetAddress(toEmailAddress) });        //将该邮件保存到本地        OutputStream out = new FileOutputStream("MyEmail.eml");        msg.writeTo(out);        out.flush();        out.close();        transport.close();    }    public static void sendMail(String toAddress){        //邮件主题        String emailTitle = "邮箱验证";        //邮件内容        String emailContent = "transport security\r\n" +                "\r\n" +                "date：" + DateFormatUtils.myFormatTime(DateFormatUtils.dateLong()) + "\r\n" +                "\r\n" +                "您正在进行找回密码，我们将您的密码暂时更改为：" + 123456 + "，请于5分钟内完成验证！\r\n" +                "\r\n" +                "不要将此密码告知于他人，并在登陆后及时更改密码！\r\n" +                "\r\n" +                "登录地址：http:106.52.60.176/ts/accident/showLogin";        //发送邮件        try {            MailUtils.sEmail(toAddress,emailTitle,emailContent);        } catch (Exception e) {            e.printStackTrace();        }    }}
```

#### 13.2.4 PhoneUtils

发送短信验证码

```java
package com.why.transportsecurity_finally.utils;import com.github.qcloudsms.SmsSingleSender;import com.github.qcloudsms.SmsSingleSenderResult;import com.github.qcloudsms.httpclient.HTTPException;import lombok.extern.java.Log;import org.json.JSONException;import java.io.IOException;/** * @Description TODO 发送短信 * @Author why * @Date 2021/7/28 9:43 * Version 1.0 **/@Logpublic class PhoneUtils {    /**     * 返送短信     * @param phoneNumbers 电话号码     * @param params 短信内容     */    public static void sendPhoneMail(String[] phoneNumbers,String[] params){        // 短信应用 SDK AppID        int appid = 1400553539; // SDK AppID 以1400开头// 短信应用 SDK AppKey        String appkey = "9ae23a3768079d6c637375eb9351a57d";// 短信模板 ID，需要在短信应用中申请        int templateId = 1053503; // NOTE: 这里的模板 ID`7839`只是示例，真实的模板 ID 需要在短信控制台中申请// 签名        String smsSign = "风雪踏梦行"; // NOTE: 签名参数使用的是`签名内容`，而不是`签名ID`。这里的签名"腾讯云"只是示例，真实的签名需要在短信控制台申请        try {            SmsSingleSender ssender = new SmsSingleSender(appid, appkey);            SmsSingleSenderResult result = ssender.sendWithParam("86", phoneNumbers[0],                    templateId, params, smsSign, "", "");            System.out.println(result);        }  catch (JSONException e) {            // JSON 解析错误            log.warning("json解析错误");            e.printStackTrace();        } catch (IOException e) {            // 网络 IO 错误            log.warning("网络IO错误");            e.printStackTrace();        } catch (HTTPException e) {            log.warning("错误");            e.printStackTrace();        }    }    public static void main(String[] args) {        String[] phone = {"15337086013"};//        String[] phone = {"18694336926"};        String random = RandomUtils.getRandom();        String[] params = {random};        sendPhoneMail(phone,params);    }}
```

#### 13.2.5 RandomUtils

产生随机数

```java
package com.why.transportsecurity_finally.utils;import java.util.Date;import java.util.Random;import java.util.UUID;/** * @Description TODO 随机数工具类 * @Author why * @Date 2021/7/28 11:53 * Version 1.0 **/public class RandomUtils {    public static String getRandom(){        Date date = new Date();        Random random = new Random(date.getTime());        int i = random.nextInt(1000000);        return i+"";    }}
```

#### 13.2.6 SaltUtis

数据加盐加密Hash

```java
package com.why.transportsecurity_finally.utils;import java.security.MessageDigest;import java.util.Random;/** * @Description TODO 加盐 * @Author why * @Date 2021/6/15 13:56 * Version 1.0 **/public class SaltUtil {    /**     * 加盐加密     * @param psd     * @return     */    public static String merge(String psd,String salt) {        //加盐        String str = Sm3Util.addSalt(psd, salt);        //Sm4加密        byte[] key = Sm4Util.getBytes("whylovewyy", 16);        try {            byte[] bytes = Sm4Util.encryptEcbPkcs5Padding(str.getBytes(),key);            //hash            String pwdNew = Sm3Util.hashStr(new String(bytes));            return pwdNew;        } catch (Exception e) {            e.printStackTrace();        }        return null;    }}
```

#### 13.2.7  SM3Utils

SM3哈希密码算法

```java
package com.why.transportsecurity_finally.utils;import org.bouncycastle.jce.provider.BouncyCastleProvider;import org.bouncycastle.util.encoders.Hex;import java.nio.charset.StandardCharsets;import java.security.MessageDigest;import java.security.NoSuchAlgorithmException;import java.util.Random;/** * @Description TODO SM3哈希算法 * @Author why * @Date 2021/6/15 13:44 * Version 1.0 **/public class Sm3Util {    public static String addSalt(String str,String salt){        String newStr = str + salt;        BouncyCastleProvider provider = new BouncyCastleProvider();        try {            MessageDigest digest = MessageDigest.getInstance("SM3",provider);            byte[] encode = Hex.encode(digest.digest(newStr.getBytes(StandardCharsets.UTF_8)));            String s = new String(encode);            return s;        } catch (NoSuchAlgorithmException e) {            e.printStackTrace();        }        return new String();    }    /**     * 随机生成10位字符串返回     * @return     */    public static String creatSalt() {        String str = "abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789";        Random random = new Random();        StringBuffer stringBuffer = new StringBuffer();        for (int i = 0; i < 10; i++) {            int number = random.nextInt(62);            stringBuffer.append(str.charAt(number));        }        return stringBuffer.toString();    }    /**     * 对字符串进行hash     * @param str     * @return     */    public static String hashStr(String str){        BouncyCastleProvider provider = new BouncyCastleProvider();        try {            MessageDigest digest = MessageDigest.getInstance("SM3",provider);            byte[] encode = Hex.encode(digest.digest(str.getBytes(StandardCharsets.UTF_8)));            String s = new String(encode);            return s;        } catch (NoSuchAlgorithmException e) {            e.printStackTrace();        }        return new String();    }}
```

#### 13.2.8 SM4Utils

SM4对称加密算法

```java
package com.why.transportsecurity_finally.utils;import org.bouncycastle.jce.provider.BouncyCastleProvider;import javax.crypto.Cipher;import javax.crypto.spec.IvParameterSpec;import javax.crypto.spec.SecretKeySpec;import java.security.Security;/** * @Description TODO SM4对称加密 * @Author why * @Date 2021/6/15 13:55 * Version 1.0 **/public class Sm4Util {    private static final String ALGORITHM_NAME = "SM4";    private static final String ALGORITHM_ECB_PKCS5PADDING = "SM4/ECB/PKCS5Padding";    /**     * SM4算法目前只支持128位（即密钥16字节）     */    private static final int DEFAULT_KEY_SIZE = 128;    static {        // 防止内存中出现多次BouncyCastleProvider的实例        if (null == Security.getProvider(BouncyCastleProvider.PROVIDER_NAME)) {            Security.addProvider(new BouncyCastleProvider());        }    }    private Sm4Util() {    }    /**     * 获取指定长的的字符串对应的16进制字节码，如果长度不够，末位自动补0     * @param s     * @return     */    public static byte[] getBytes(String s, int length) {        int fixLength = length - s.getBytes().length;        if (s.getBytes().length < length) {            byte[] S_bytes = new byte[length];            System.arraycopy(s.getBytes(), 0, S_bytes, 0, s.getBytes().length);            for (int x = length-fixLength; x < length; x++) {                S_bytes[x] = 0x00;            }            return S_bytes;        }        return s.getBytes();    }    /**     * 加密，SM4-ECB-PKCS5Padding     *     * @param data 要加密的明文     * @param key  密钥16字节，使用Sm4Util.generateKey()生成     * @return 加密后的密文     * @throws Exception 加密异常     */    public static byte[] encryptEcbPkcs5Padding(byte[] data, byte[] key) throws Exception {        return sm4(data, key, ALGORITHM_ECB_PKCS5PADDING, null, Cipher.ENCRYPT_MODE);    }    /**     * 解密，SM4-ECB-PKCS5Padding     *     * @param data 要解密的密文     * @param key  密钥16字节，使用Sm4Util.generateKey()生成     * @return 解密后的明文     * @throws Exception 解密异常     */    public static byte[] decryptEcbPkcs5Padding(byte[] data, byte[] key) throws Exception {        return sm4(data, key, ALGORITHM_ECB_PKCS5PADDING, null, Cipher.DECRYPT_MODE);    }    /**     * SM4对称加解密     *     * @param input   明文（加密模式）或密文（解密模式）     * @param key     密钥     * @param sm4mode sm4加密模式     * @param iv      初始向量(ECB模式下传NULL)     * @param mode    Cipher.ENCRYPT_MODE - 加密；Cipher.DECRYPT_MODE - 解密     * @return 密文（加密模式）或明文（解密模式）     * @throws Exception 加解密异常     */    private static byte[] sm4(byte[] input, byte[] key, String sm4mode, byte[] iv, int mode)            throws Exception {        IvParameterSpec ivParameterSpec = null;        if (null != iv) {            ivParameterSpec = new IvParameterSpec(iv);        }        SecretKeySpec sm4Key = new SecretKeySpec(key, ALGORITHM_NAME);        Cipher cipher = Cipher.getInstance(sm4mode, BouncyCastleProvider.PROVIDER_NAME);        if (null == ivParameterSpec) {            cipher.init(mode, sm4Key);        } else {            cipher.init(mode, sm4Key, ivParameterSpec);        }        return cipher.doFinal(input);    }}
```

## 十四、 产品展示

### 14.1 管理员模块

**登录**

![image-20210730172705272](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210731112117501-1444752445.png)

**注册**

![image-20210730172726505](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210731112055226-1627239448.png)

**找回密码**

![image-20210730172825801](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210730172826337-783174320.png)

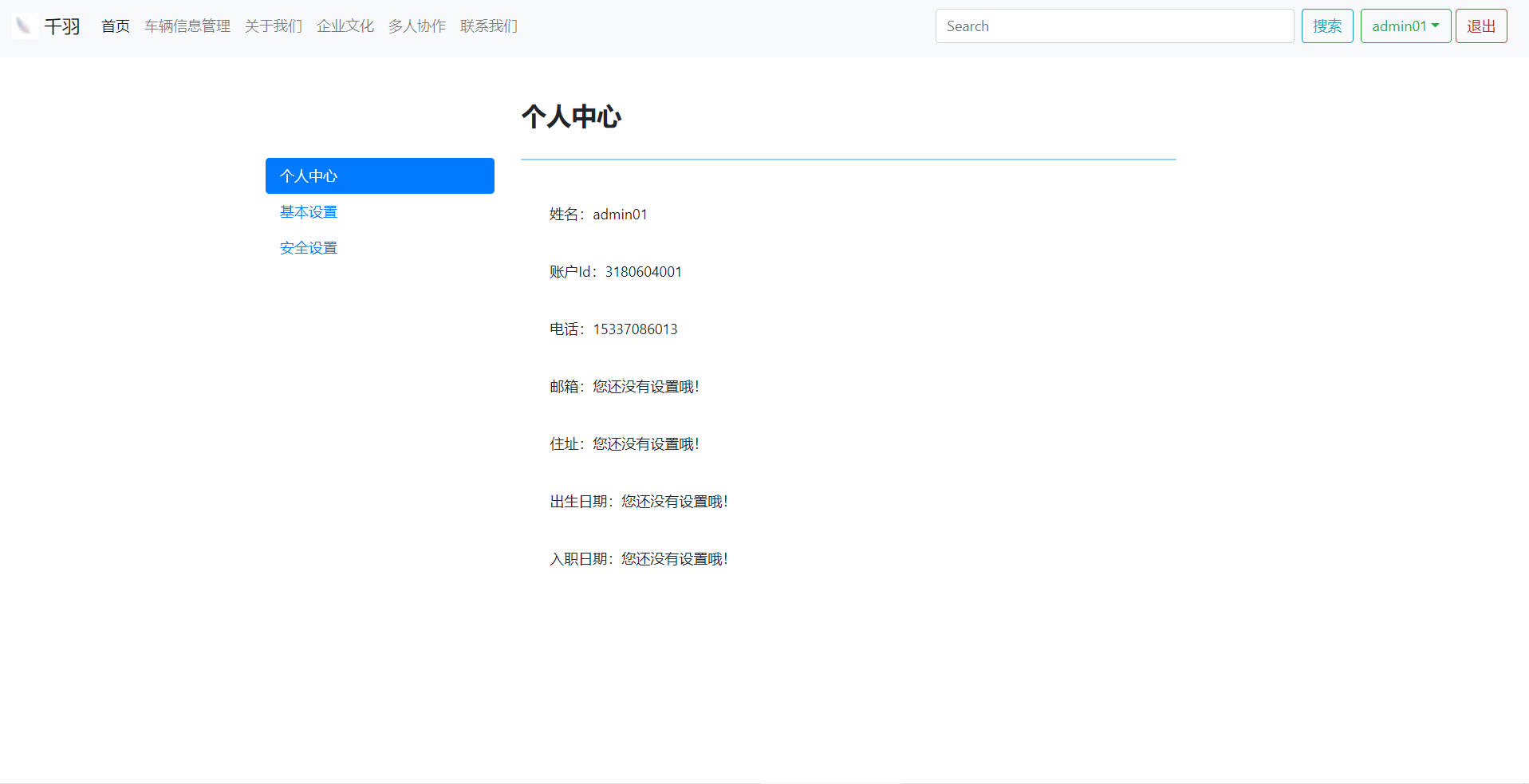

**个人中心**

![image-20210730173451852](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210730173451332-825790558.png)

**基本信息管理**

![image-20210730173514846](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210730173514335-527313038.png)

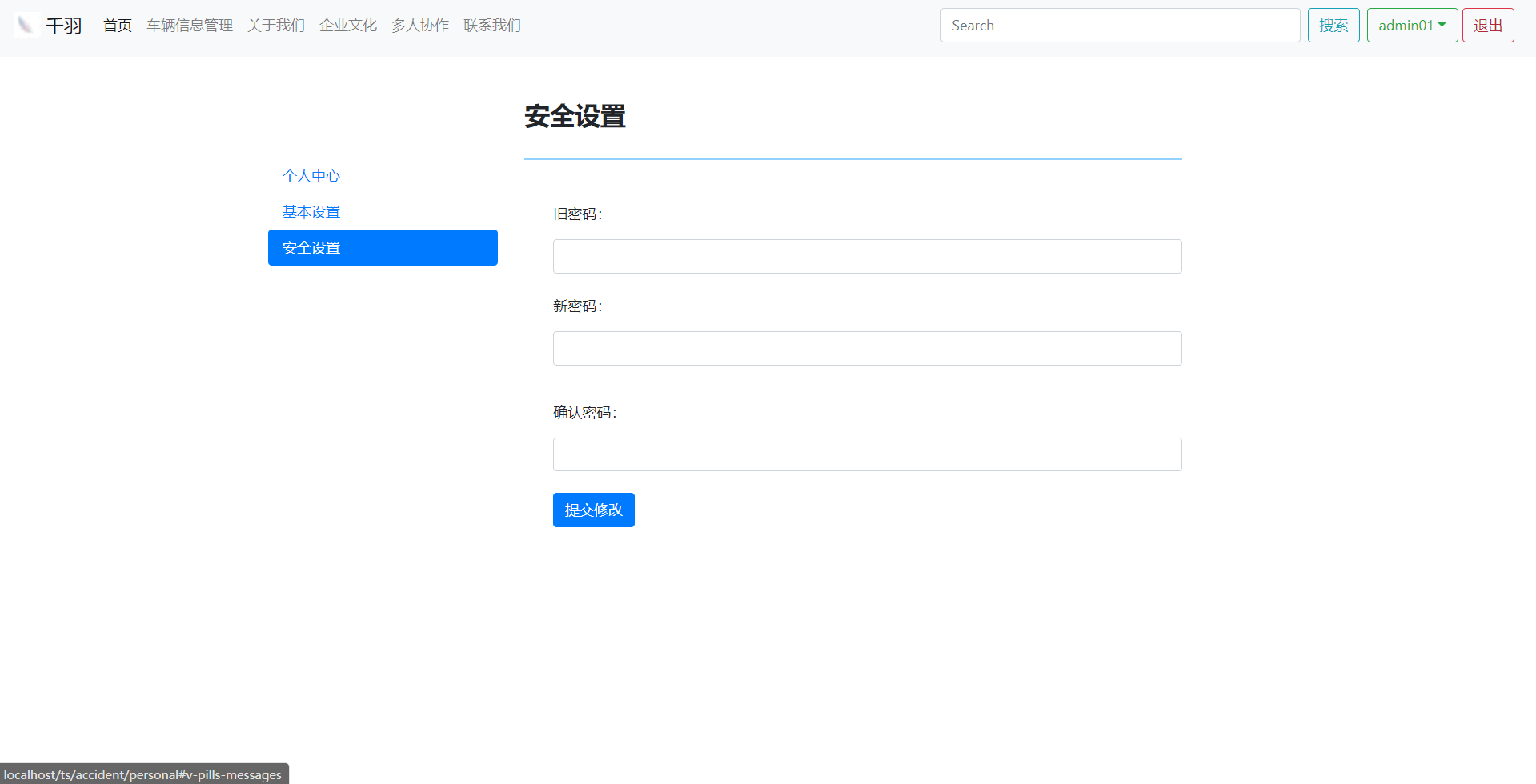

**修改密码**

![image-20210730173533850](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210730173535015-2030408704.png)

### 14.2 事故信息模块

**事故统计页面**

![image-20210730173057562](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210731112056787-1546259605.png)

**碰撞数据页面**

![image-20210730173132015](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210731112106835-1171912041.png)

**数据分析页面**

![image-20210730173214525](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210731112059600-2101385282.png)

### 14.3 车辆信息模块

**车辆信息展示页面**

![image-20210730173323608](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210731112101700-546291659.png)

**车辆信息编辑页面**

![image-20210730173357290](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210731112055140-174525283.png)

**车辆信息添加页面**

![image-20210730173420446](https://img2020.cnblogs.com/blog/2211066/202107/2211066-20210730173420820-804106185.png)
