# TSOC_WaterSensor - Passive Water Sensor Module :


The TSOC_WaterSensor is a simple passive water sensor with Grove Connectors,
in an Embedded Module format for the new thingSoC, Internet of Things open standard.
It includes a secondl breakout connector for an additional sensor (Temperature/Humidity) or actuator (Relay/Mosfet).
It is designed to be used as a basement/sump water detector that engages a pump or alarm when water is present.
The addiitional connector can be used to add a humidity/temperature sensor (ie. basement too hot or too moist),
or for a an actuator, like a Relay (to turn on the sump pump when water is detected, etc.).

The TSOC_WaterSensor is a low cost, embeddable module featuring :

* Simple, Passive Water Sensor
* Additional Breakout connector
* Mounting holes
* [thingSoC Compliant Module](http://www.thingsoc.com)
* [Mikrobus Compatible Module](http://www.mikroe.com/mikrobus/)

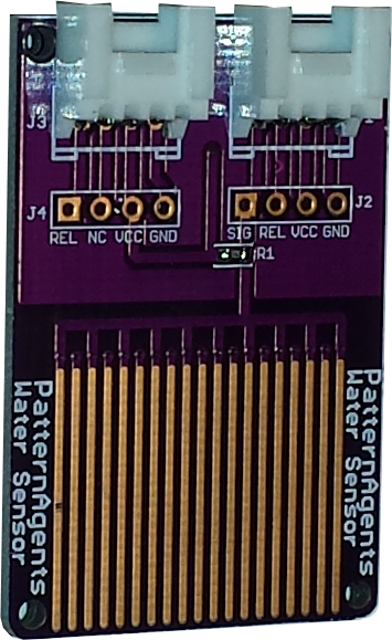

[![thingSoC TSOC_WaterSensor](https://raw.githubusercontent.com/thingSoC/TSOC_WaterSensor/master/TSOC_WaterSensor/images/product/TSOC_WaterSensor.png?raw=true)TSOC_WaterSensor](https://github.com/thingSoC/TSOC_WaterSensor)

**thingSoC Reference Designs** are example thingSoC implementations that implement
various reference and testing circuits for demonstrating the use of the thingSoC libraries.
These reference designs can serve as starting templates for user designs.

---------------------------------------

## TSOC_WaterSensor Instructions

The TSOC_WaterSensor can use either digital or analog inputs for water detection.
The additional breakout connector can be used for an additional sensor (Temperature/Humidity) or actuator (Relay/Mosfet).

---------------------------------------

## TSOC_WaterSensor Status <a name="TSOC_WaterSensor_status"/>

**11/06/2016:**
Revision 1.0 - Initial Layout released to OSHpark

---------------------------------------

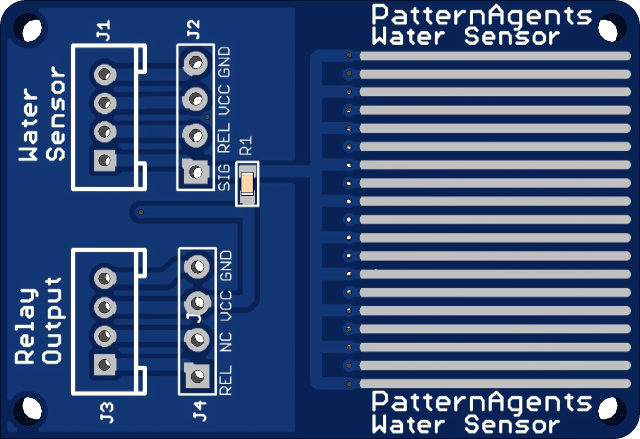

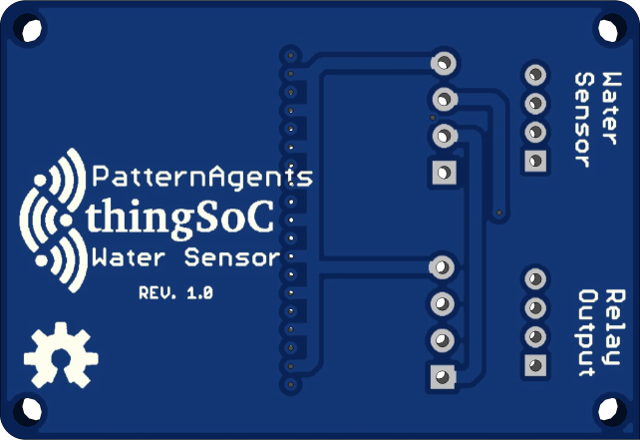

## TSOC_WaterSensor Model Images


[![thingSoC TSOC_WaterSensor](https://raw.githubusercontent.com/thingSoC/TSOC_WaterSensor/master/TSOC_WaterSensor/images/TSOC_WaterSensor_top.png?raw=true)TSOC_WaterSensor](https://github.com/thingSoC/TSOC_WaterSensor)


[![thingSoC TSOC_WaterSensor](https://raw.githubusercontent.com/thingSoC/TSOC_WaterSensor/master/TSOC_WaterSensor/images/TSOC_WaterSensor_bot.png?raw=true)TSOC_WaterSensor](https://github.com/thingSoC/TSOC_WaterSensor)


---------------------------------------

## TSOC_WaterSensor Documentation Index <a name="TSOC_WaterSensor_documentation_index"/>

[TSOC_WaterSensor Project](http://thingsoc.github.io/projects/TSOC_WaterSensor.html)

[TSOC_WaterSensor Hardware](https://github.com/thingSoC/TSOC_WaterSensor/tree/master/TSOC_WaterSensor/hardware)


---------------------------------------
