# dynamic-schedule
**Repository Path**: zoomLee/dynamic-schedule
## Basic Information
- **Project Name**: dynamic-schedule
- **Description**: springboot 动态定时任务
- **Primary Language**: Java
- **License**: Not specified
- **Default Branch**: master
- **Homepage**: None
- **GVP Project**: No
## Statistics
- **Stars**: 0
- **Forks**: 8
- **Created**: 2022-06-15
- **Last Updated**: 2022-06-15
## Categories & Tags
**Categories**: Uncategorized
**Tags**: None
## README
写在前面：本文采取的环境 1.docker下的mysql (对于用户使用的数据库版本 请引用对应的数据库驱动版本)，2.springboot(该demo采用mysql数据库，druid连接池，mybatis持久层)
项目地址：
码云： https://gitee.com/belonghuang/dynamic-schedule
github： https://github.com/Blankwhiter/dynamic-schedule
前端配套界面：https://github.com/Blankwhiter/vue-admin-template
更新日志：
1.加入定时器 给定时间 得出下次执行时间点
参照 https://gitee.com/xxssyyyyssxx/cron-hms
# 第一步 MySQL环境准备（可跳过）
### 1.在centos窗口中，拉取mysql镜像，并且创建该容器：
```bash
docker pull mysql:5.7
docker run --name test-mysql -p 3306:3306 -e MYSQL_ROOT_PASSWORD=123456 -d mysql:5.7
```
*注：等容器启动成功后，读者可以尝试用Navicat连接 ：账号root， 密码123456.*
### 2.数据库表准备，以及测试数据
本人创建了名为**test**的数据库，并执行了下方语句创建表以及测试数据。
```mysql
-- 定时任务
CREATE TABLE `schedule_job` (
`job_id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '任务id',
`bean_name` varchar(200) DEFAULT NULL COMMENT 'spring bean名称',
`method_name` varchar(100) DEFAULT NULL COMMENT '方法名',
`params` varchar(2000) DEFAULT NULL COMMENT '参数',
`cron_expression` varchar(100) DEFAULT NULL COMMENT 'cron表达式',
`status` tinyint(4) DEFAULT NULL COMMENT '任务状态 0：正常 1：暂停',
`remark` varchar(255) DEFAULT NULL COMMENT '备注',
`create_time` datetime DEFAULT NULL COMMENT '创建时间',
PRIMARY KEY (`job_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT='定时任务';
-- 定时任务日志
CREATE TABLE `schedule_job_log` (
`log_id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '任务日志id',
`job_id` bigint(20) NOT NULL COMMENT '任务id',
`bean_name` varchar(200) DEFAULT NULL COMMENT 'spring bean名称',
`method_name` varchar(100) DEFAULT NULL COMMENT '方法名',
`params` varchar(2000) DEFAULT NULL COMMENT '参数',
`status` tinyint(4) NOT NULL COMMENT '任务状态 0：成功 1：失败',
`error` varchar(2000) DEFAULT NULL COMMENT '失败信息',
`times` int(11) NOT NULL COMMENT '耗时(单位：毫秒)',
`create_time` datetime DEFAULT NULL COMMENT '创建时间',
PRIMARY KEY (`log_id`),
KEY `job_id` (`job_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT='定时任务日志';
INSERT INTO `schedule_job` (`bean_name`, `method_name`, `params`, `cron_expression`, `status`, `remark`, `create_time`) VALUES ('testTask', 'test', 'my-test', '0/10 * * * * ? *', '0', '有参数测试', '2018-12-01 13:15:11');
INSERT INTO `schedule_job` (`bean_name`, `method_name`, `params`, `cron_expression`, `status`, `remark`, `create_time`) VALUES ('testTask', 'test2', NULL, '0/15 * * * * ? *', '1', '无参数测试', '2018-12-03 14:45:12');
```
*注：上方语句分别创建了定时任务表，以及定时任务日志表，并且加入两条有参数（每隔10秒），无参数（每隔15秒）的两个定时器*
# 第二步 编写项目

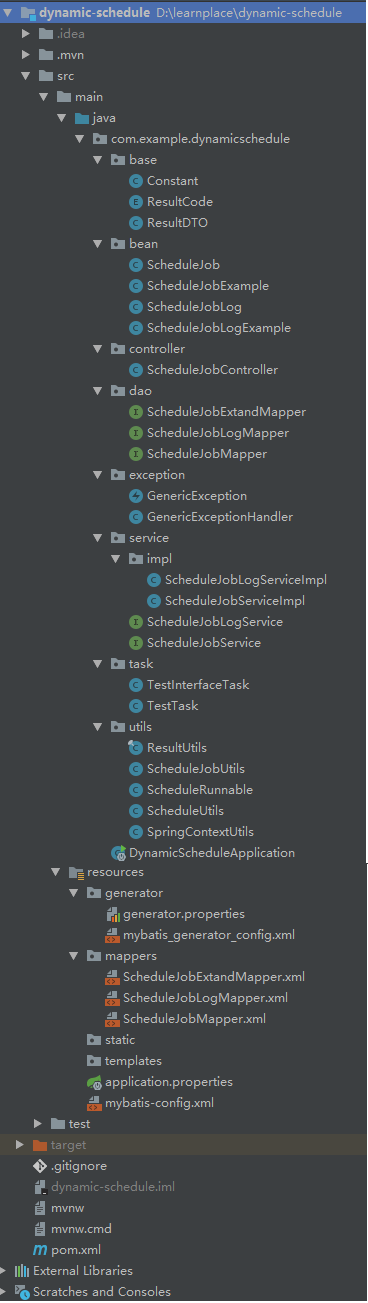

项目结构一览：
### 1.引入项目所需jar，pom.xml
```xml
4.0.0
org.springframework.boot
spring-boot-starter-parent
2.1.1.RELEASE
com.example
dynamic-schedule
0.0.1-SNAPSHOT
dynamic-schedule
Demo project for Spring Boot
1.8
org.springframework.boot
spring-boot-starter-web
org.springframework.boot
spring-boot-starter-quartz
org.mybatis.spring.boot
mybatis-spring-boot-starter
1.3.2
mysql
mysql-connector-java
runtime
com.alibaba
druid-spring-boot-starter
1.1.10
org.projectlombok
lombok
true
org.apache.commons
commons-lang3
3.0
org.quartz-scheduler
quartz
2.3.0
com.mchange
c3p0
com.github.pagehelper
pagehelper
4.1.5
org.springframework.boot
spring-boot-starter-test
test
org.mybatis.generator
mybatis-generator-maven-plugin
1.3.5
src/main/resources/generator/mybatis_generator_config.xml
true
true
Generate MyBatis Artifacts
generate
mysql
mysql-connector-java
5.1.43
org.mybatis
mybatis
3.4.4
org.mybatis.generator
mybatis-generator-core
1.3.5
org.springframework.boot
spring-boot-maven-plugin
```
### 2.配置项目环境 application.properties
```xml
server.port=8888
#数据库设置
spring.datasource.driverClassName=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/test?allowMultiQueries=true&useUnicode=true&characterEncoding=utf8&autoReconnect=true&useSSL=true
spring.datasource.username=root
spring.datasource.password=123456
#--------------------------
# 下面为连接池的补充设置，应用到上面所有数据源中
# 初始化大小，最小，最大
spring.datasource.initialSize=5
spring.datasource.minIdle=1
spring.datasource.maxActive=50
# 配置获取连接等待超时的时间
spring.datasource.maxWait=60000
# 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
spring.datasource.timeBetweenEvictionRunsMillis=60000
# 配置一个连接在池中最小生存的时间，单位是毫秒
spring.datasource.minEvictableIdleTimeMillis=300000
spring.datasource.validationQuery=SELECT 1 FROM DUAL
spring.datasource.testWhileIdle=true
spring.datasource.testOnBorrow=false
spring.datasource.testOnReturn=false
# 打开PSCache，并且指定每个连接上PSCache的大小
spring.datasource.poolPreparedStatements=false
#spring.datasource.maxPoolPreparedStatementPerConnectionSize=20
# 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
spring.datasource.filters=stat,wall,log4j
# 通过connectProperties属性来打开mergeSql功能；慢SQL记录
spring.datasource.connectionProperties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000
# 合并多个DruidDataSource的监控数据
#spring.datasource.useGlobalDataSourceStat=true
mybatis.mapper-locations=classpath:mappers/*Mapper.xml
mybatis.type-aliases-package=com.example.dynamicschedule.bean
mybatis.check-config-location=true
mybatis.config-location=classpath:mybatis-config.xml
```
### 3.启动上配置**MapperScan**注解,以及编写mybatis-config.xml
1.DynamicScheduleApplication.java
```java
package com.example.dynamicschedule;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
@MapperScan(basePackages = "com.example.dynamicschedule.dao")
public class DynamicScheduleApplication {
public static void main(String[] args) {
SpringApplication.run(DynamicScheduleApplication.class, args);
}
}
```
2.mybatis-config.xml
```xml
```
### 4.由项目的**resources**的**generator**配置文件，通过pom下配置的工具**mybatis-generator-maven-plugin**生成对应
bean目录下：
ScheduleJobExample
ScheduleJob
ScheduleJobLog
ScheduleJobLogExample
dao目录下：
ScheduleJobLogMapper
ScheduleJobMapper
mapper目录下：
ScheduleJobLogMapper.xml
ScheduleJobMapper.xml
*注：由于此步骤已经有本人实现，不再过多赘述，如有疑问请留言评论，晚间本人将进行解答*
### 5.编写基础的返回信息类，异常捕捉，工具类
**base**目录下：
1.Constant.java
```java
package com.example.dynamicschedule.base;
/**
* 常量
*/
public class Constant {
/**
* 任务调度参数key
*/
public static final String JOB_PARAM_KEY = "JOB_PARAM_KEY";
/**
* 定时任务状态
*
*/
/**
* 正常
*/
public static final int NORMAL = 0;
/**
* 暂停
*/
public static final int PAUSE =1;
}
```
2.ResultCode.java
```java
package com.example.dynamicschedule.base;
/**
* 返回信息码
*/
public enum ResultCode {
SUCCESS(0, "操作成功"),
FAIL(1, "操作失败,请联系管理员"),
PARAM_ERROR(2, "参数值格式有误"),
RESOURCE_INVALID(3, "资源无效"),
TOKEN_INVALID(11, "授权码无效"),
CUSTOM_ERRORDESC(99);
ResultCode(int code, String errorDesc) {
Code = code;
ErrorDesc = errorDesc;
}
ResultCode(int code) {
Code = code;
}
private int Code;
private String ErrorDesc;
public int getCode() {
return Code;
}
public void setCode(int code) {
Code = code;
}
public String getErrorDesc() {
return ErrorDesc;
}
public void setErrorDesc(String errorDesc) {
ErrorDesc = errorDesc;
}
}
```
3.ResultDTO.java
```java
package com.example.dynamicschedule.base;
import java.io.Serializable;
/**
* 返回数据格式
*
*/
public class ResultDTO implements Serializable {
private int code;
private String msg;
private Object data;
private int count;
public ResultDTO(ResultCode code, Object result) {
this.code = code.getCode();
this.msg = code.getErrorDesc();
this.data = result;
}
public ResultDTO(ResultCode code, String errorDesc, Object result) {
this.code = code.getCode();
this.msg = errorDesc;
this.data = result;
}
public ResultDTO(int code, String errorDesc, Object result) {
this.code = code;
this.msg = errorDesc;
this.data = result;
}
}
```
**exception**目录下：
4.GenericException.java
```java
package com.example.dynamicschedule.exception;
/**
* 自定义异常
*
*/
public class GenericException extends RuntimeException {
private static final long serialVersionUID = 1L;
private String msg;
private int code = 500;
public GenericException(String msg) {
super(msg);
this.msg = msg;
}
public GenericException(String msg, Throwable e) {
super(msg, e);
this.msg = msg;
}
public GenericException(String msg, int code) {
super(msg);
this.msg = msg;
this.code = code;
}
public GenericException(String msg, int code, Throwable e) {
super(msg, e);
this.msg = msg;
this.code = code;
}
public String getMsg() {
return msg;
}
public void setMsg(String msg) {
this.msg = msg;
}
public int getCode() {
return code;
}
public void setCode(int code) {
this.code = code;
}
}
```
5.GenericExceptionHandler.java
```java
package com.example.dynamicschedule.exception;
import com.example.dynamicschedule.base.ResultDTO;
import com.example.dynamicschedule.utils.ResultUtils;
import lombok.extern.slf4j.Slf4j;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.dao.DuplicateKeyException;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;
import org.springframework.web.servlet.NoHandlerFoundException;
/**
* 异常处理器
*
*/
@RestControllerAdvice
@Slf4j
public class GenericExceptionHandler {
/**
* 处理自定义异常
*/
@ExceptionHandler(GenericException.class)
public ResultDTO handleRRException(GenericException e){
if (e instanceof GenericException) {
GenericException e1 = (GenericException) e;
log.error(e1.getCode()+"");
return ResultUtils.getResultDTO(e1.getCode(), e1.getMessage(), null);
}
log.error(e.getCause().getMessage());
log.error(e.getMessage());
return ResultUtils.getFail(null);
}
@ExceptionHandler(NoHandlerFoundException.class)
public ResultDTO handlerNoFoundException(java.lang.Exception e) {
log.error(e.getMessage(), e);
return ResultUtils.getResultDTO(404, "路径不存在，请检查路径是否正确",null);
}
@ExceptionHandler(DuplicateKeyException.class)
public ResultDTO handleDuplicateKeyException(DuplicateKeyException e){
log.error(e.getMessage(), e);
return ResultUtils.getResultDTO(99,"数据库中已存在该记录",null);
}
@ExceptionHandler(java.lang.Exception.class)
public ResultDTO handleException(java.lang.Exception e){
log.error(e.getMessage(), e);
return ResultUtils.getFail(null);
}
}
```
**utils**目录下：
6.ResultUtils.java
```java
package com.example.dynamicschedule.utils;
import com.example.dynamicschedule.base.ResultCode;
import com.example.dynamicschedule.base.ResultDTO;
/**
*返回信息工具
*/
public final class ResultUtils {
private ResultUtils() {
}
public static ResultDTO getSuccess(Object result) {
return new ResultDTO(ResultCode.SUCCESS, result);
}
public static ResultDTO getFail(Object result) {
return new ResultDTO(ResultCode.FAIL, result);
}
public static ResultDTO getParamError(Object result) {
return new ResultDTO(ResultCode.PARAM_ERROR, result);
}
public static ResultDTO getResourceInvalid(Object result) {
return new ResultDTO(ResultCode.RESOURCE_INVALID, result);
}
public static ResultDTO getTokenInvalid(Object result) {
return new ResultDTO(ResultCode.TOKEN_INVALID, result);
}
public static ResultDTO getCustomErrordesc(String errorDesc, Object result) {
return new ResultDTO(ResultCode.CUSTOM_ERRORDESC, errorDesc, result);
}
public static ResultDTO getResultDTO(int code, String errorDesc, Object result) {
return new ResultDTO(code, errorDesc, result);
}
}
```
7.ScheduleJobUtils.java
```java
package com.example.dynamicschedule.utils;
import com.example.dynamicschedule.base.Constant;
import com.example.dynamicschedule.bean.ScheduleJob;
import com.example.dynamicschedule.bean.ScheduleJobLog;
import com.example.dynamicschedule.dao.ScheduleJobLogMapper;
import com.example.dynamicschedule.service.ScheduleJobLogService;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.quartz.QuartzJobBean;
import org.springframework.stereotype.Component;
import java.util.Date;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.Future;
/**
* 定时任务工具
*
*/
@Slf4j
@Component
public class ScheduleJobUtils extends QuartzJobBean {
private ExecutorService service = Executors.newSingleThreadExecutor();
@Autowired
private ScheduleJobLogMapper scheduleJobLogMapper;
@Override
protected void executeInternal(JobExecutionContext context) throws JobExecutionException {
ScheduleJob scheduleJob = (ScheduleJob ) context.getMergedJobDataMap()
.get(Constant.JOB_PARAM_KEY);
//获取spring bean
// ScheduleJobLogService scheduleJobLogService = (ScheduleJobLogService) SpringContextUtils.getBean("scheduleJobLogService");
//数据库保存执行记录
ScheduleJobLog jobLog = new ScheduleJobLog();
jobLog.setJobId(scheduleJob.getJobId());
jobLog.setBeanName(scheduleJob.getBeanName());
jobLog.setMethodName(scheduleJob.getMethodName());
jobLog.setParams(scheduleJob.getParams());
jobLog.setCreateTime(new Date());
//任务开始时间
long startTime = System.currentTimeMillis();
Byte zero = 0;
Byte one=1;
try {
//执行任务
log.info("任务准备执行，任务ID：" + scheduleJob.getJobId());
ScheduleRunnable task = new ScheduleRunnable(scheduleJob.getBeanName(),
scheduleJob.getMethodName(), scheduleJob.getParams());
Future future = service.submit(task);
future.get();
//任务执行总时长
long times = System.currentTimeMillis() - startTime;
jobLog.setTimes((int)times);
//任务状态 0：成功 1：失败
jobLog.setStatus(zero);
log.info("任务执行完毕，任务ID：" + scheduleJob.getJobId() + " 总共耗时：" + times + "毫秒");
} catch (Exception e) {
log.error("任务执行失败，任务ID：" + scheduleJob.getJobId(), e);
//任务执行总时长
long times = System.currentTimeMillis() - startTime;
jobLog.setTimes((int)times);
//任务状态 0：成功 1：失败
jobLog.setStatus(one);
jobLog.setError(StringUtils.substring(e.toString(), 0, 2000));
}finally {
scheduleJobLogMapper.insertSelective(jobLog);
}
}
}
```
8.ScheduleRunnable.java
```java
package com.example.dynamicschedule.utils;
import com.example.dynamicschedule.exception.GenericException;
import org.apache.commons.lang3.StringUtils;
import org.springframework.util.ReflectionUtils;
import java.lang.reflect.Method;
/**
* 执行定时任务实现
*
*/
public class ScheduleRunnable implements Runnable {
private Object target;
private Method method;
private String params;
public ScheduleRunnable(String beanName, String methodName, String params) throws NoSuchMethodException, SecurityException {
this.target = SpringContextUtils.getBean(beanName);
this.params = params;
if(StringUtils.isNotBlank(params)){
this.method = target.getClass().getDeclaredMethod(methodName, String.class);
}else{
this.method = target.getClass().getDeclaredMethod(methodName);
}
}
@Override
public void run() {
try {
ReflectionUtils.makeAccessible(method);
if(StringUtils.isNotBlank(params)){
method.invoke(target, params);
}else{
method.invoke(target);
}
}catch (java.lang.Exception e) {
throw new GenericException("执行定时任务失败", e);
}
}
}
```
9.ScheduleUtils.java
```java
package com.example.dynamicschedule.utils;
import com.example.dynamicschedule.base.Constant;
import com.example.dynamicschedule.bean.ScheduleJob;
import com.example.dynamicschedule.exception.GenericException;
import org.quartz.*;
/**
* 定时任务工具类
*
*/
public class ScheduleUtils {
private final static String JOB_NAME = "TASK_";
/**
* 获取触发器key
*/
public static TriggerKey getTriggerKey(Long jobId) {
return TriggerKey.triggerKey(JOB_NAME + jobId);
}
/**
* 获取jobKey
*/
public static JobKey getJobKey(Long jobId) {
return JobKey.jobKey(JOB_NAME + jobId);
}
/**
* 获取表达式触发器
*/
public static CronTrigger getCronTrigger(Scheduler scheduler, Long jobId) {
try {
return (CronTrigger) scheduler.getTrigger(getTriggerKey(jobId));
} catch (SchedulerException e) {
throw new GenericException("获取定时任务CronTrigger出现异常", e);
}
}
/**
* 创建定时任务
*/
public static void createScheduleJob(Scheduler scheduler, ScheduleJob scheduleJob) {
try {
//构建job信息
JobDetail jobDetail = JobBuilder.newJob(ScheduleJobUtils.class).withIdentity(getJobKey(scheduleJob.getJobId())).build();
//表达式调度构建器
CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(scheduleJob.getCronExpression())
.withMisfireHandlingInstructionDoNothing();
//按新的cronExpression表达式构建一个新的trigger
CronTrigger trigger = TriggerBuilder.newTrigger().withIdentity(getTriggerKey(scheduleJob.getJobId())).withSchedule(scheduleBuilder).build();
//放入参数，运行时的方法可以获取
jobDetail.getJobDataMap().put(Constant.JOB_PARAM_KEY, scheduleJob);
scheduler.scheduleJob(jobDetail, trigger);
//暂停任务
if(scheduleJob.getStatus() == Constant.PAUSE){
pauseJob(scheduler, scheduleJob.getJobId());
}
} catch (SchedulerException e) {
throw new GenericException("创建定时任务失败", e);
}
}
/**
* 更新定时任务
*/
public static void updateScheduleJob(Scheduler scheduler, ScheduleJob scheduleJob) {
try {
TriggerKey triggerKey = getTriggerKey(scheduleJob.getJobId());
//表达式调度构建器
CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(scheduleJob.getCronExpression())
.withMisfireHandlingInstructionDoNothing();
CronTrigger trigger = getCronTrigger(scheduler, scheduleJob.getJobId());
//按新的cronExpression表达式重新构建trigger
trigger = trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(scheduleBuilder).build();
//参数
trigger.getJobDataMap().put(Constant.JOB_PARAM_KEY, scheduleJob);
scheduler.rescheduleJob(triggerKey, trigger);
//暂停任务
if(scheduleJob.getStatus() == Constant.PAUSE){
pauseJob(scheduler, scheduleJob.getJobId());
}
} catch (SchedulerException e) {
throw new GenericException("更新定时任务失败", e);
}
}
/**
* 立即执行任务
*/
public static void run(Scheduler scheduler, ScheduleJob scheduleJob) {
try {
//参数
JobDataMap dataMap = new JobDataMap();
dataMap.put(Constant.JOB_PARAM_KEY, scheduleJob);
scheduler.triggerJob(getJobKey(scheduleJob.getJobId()), dataMap);
} catch (SchedulerException e) {
throw new GenericException("立即执行定时任务失败", e);
}
}
/**
* 暂停任务
*/
public static void pauseJob(Scheduler scheduler, Long jobId) {
try {
scheduler.pauseJob(getJobKey(jobId));
} catch (SchedulerException e) {
throw new GenericException("暂停定时任务失败", e);
}
}
/**
* 恢复任务
*/
public static void resumeJob(Scheduler scheduler, Long jobId) {
try {
scheduler.resumeJob(getJobKey(jobId));
} catch (SchedulerException e) {
throw new GenericException("暂停定时任务失败", e);
}
}
/**
* 删除定时任务
*/
public static void deleteScheduleJob(Scheduler scheduler, Long jobId) {
try {
scheduler.deleteJob(getJobKey(jobId));
} catch (SchedulerException e) {
throw new GenericException("删除定时任务失败", e);
}
}
}
```
10.SpringContextUtils.java
```java
package com.example.dynamicschedule.utils;
import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;
/**
* Spring Context 工具类
*
*/
@Component
public class SpringContextUtils implements ApplicationContextAware {
public static ApplicationContext applicationContext;
@Override
public void setApplicationContext(ApplicationContext applicationContext)
throws BeansException {
SpringContextUtils.applicationContext = applicationContext;
}
public static Object getBean(String name) {
return applicationContext.getBean(name);
}
public static T getBean(String name, Class requiredType) {
return applicationContext.getBean(name, requiredType);
}
public static boolean containsBean(String name) {
return applicationContext.containsBean(name);
}
public static boolean isSingleton(String name) {
return applicationContext.isSingleton(name);
}
public static Class getType(String name) {
return applicationContext.getType(name);
}
}
```
### 6.编写mapper，dao，service，service实现，控制层，定时任务测试bean
**mappers**目录下：
1.ScheduleJobExtandMapper.xml（包含了批量更新，批量删除）
```xml
update schedule_job set status =#{status} where job_id in
#{id,jdbcType=INTEGER}
delete from schedule_job where job_id in
#{id,jdbcType=INTEGER}
```
**dao**目录下：
2.ScheduleJobExtandMapper.java
```java
package com.example.dynamicschedule.dao;
import org.apache.ibatis.annotations.Param;
import java.util.List;
public interface ScheduleJobExtandMapper {
int updateBatch(@Param("ids") List ids,@Param("status") int status);
int deleteBatch(@Param("ids") List ids);
}
```
**service**目录下：
3.ScheduleJobService.java
```java
package com.example.dynamicschedule.service;
import com.example.dynamicschedule.bean.ScheduleJob;
import com.github.pagehelper.PageInfo;
import java.util.List;
import java.util.Map;
/**
* 定时任务
*
*/
public interface ScheduleJobService {
PageInfo queryPage(Map params);
/**
* 保存定时任务
*/
void save(ScheduleJob scheduleJob);
/**
* 更新定时任务
*/
void update(ScheduleJob scheduleJob);
/**
* 批量删除定时任务
*/
void deleteBatch(List jobIds);
/**
* 批量更新定时任务状态
*/
int updateBatch(List jobIds, int status);
/**
* 立即执行
*/
void run(List jobIds);
/**
* 暂停运行
*/
void pause(List jobIds);
/**
* 恢复运行
*/
void resume(List jobIds);
}
```
4.ScheduleJobLogService.java
```java
package com.example.dynamicschedule.service;
import com.github.pagehelper.PageInfo;
import java.util.Map;
/**
* 定时任务日志
*
*/
public interface ScheduleJobLogService {
PageInfo queryPage(Map params);
}
```
**impl**目录下：
5.ScheduleJobServiceImpl.java
```java
package com.example.dynamicschedule.service.impl;
import com.example.dynamicschedule.base.Constant;
import com.example.dynamicschedule.bean.ScheduleJob;
import com.example.dynamicschedule.bean.ScheduleJobExample;
import com.example.dynamicschedule.dao.ScheduleJobExtandMapper;
import com.example.dynamicschedule.dao.ScheduleJobMapper;
import com.example.dynamicschedule.service.ScheduleJobService;
import com.example.dynamicschedule.utils.ScheduleUtils;
import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import org.quartz.CronTrigger;
import org.quartz.Scheduler;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import javax.annotation.PostConstruct;
import java.util.*;
@Service("scheduleJobService")
public class ScheduleJobServiceImpl implements ScheduleJobService {
@Autowired
private Scheduler scheduler;
@Autowired
private ScheduleJobMapper scheduleJobMapper;
@Autowired
private ScheduleJobExtandMapper scheduleJobExtandMapper;
/**
* 项目启动时，初始化定时器
*/
@PostConstruct
public void init(){
ScheduleJobExample scheduleJobExample = new ScheduleJobExample();
List scheduleJobList = scheduleJobMapper.selectByExample(scheduleJobExample);
for(ScheduleJob scheduleJob : scheduleJobList){
CronTrigger cronTrigger = ScheduleUtils.getCronTrigger(scheduler, scheduleJob.getJobId());
//如果不存在，则创建
if(cronTrigger == null) {
ScheduleUtils.createScheduleJob(scheduler, scheduleJob);
}else {
ScheduleUtils.updateScheduleJob(scheduler, scheduleJob);
}
}
}
@Override
public PageInfo queryPage(Map params) {
String beanName = (String)params.get("beanName");
int page = Integer.parseInt(params.getOrDefault("page", "1").toString());
int pageSize = Integer.parseInt(params.getOrDefault("pageSize", "10").toString());
PageHelper.startPage(page,pageSize);
ScheduleJobExample scheduleJobExample = new ScheduleJobExample();
scheduleJobExample.createCriteria().andBeanNameLike(beanName);
List scheduleJobs = scheduleJobMapper.selectByExample(scheduleJobExample);
PageInfo pageInfo = new PageInfo<>(scheduleJobs);
return pageInfo;
}
@Override
@Transactional(rollbackFor = Exception.class)
public void save(ScheduleJob scheduleJob) {
scheduleJob.setCreateTime(new Date());
scheduleJob.setStatus(Byte.parseByte(Constant.NORMAL+""));
scheduleJobMapper.insertSelective(scheduleJob);
ScheduleUtils.createScheduleJob(scheduler, scheduleJob);
}
@Override
@Transactional(rollbackFor = Exception.class)
public void update(ScheduleJob scheduleJob) {
ScheduleUtils.updateScheduleJob(scheduler, scheduleJob);
scheduleJobMapper.updateByPrimaryKeySelective(scheduleJob);
}
@Override
@Transactional(rollbackFor = Exception.class)
public void deleteBatch(List jobIds) {
for(Long jobId : jobIds){
ScheduleUtils.deleteScheduleJob(scheduler, jobId);
}
//删除数据
scheduleJobExtandMapper.deleteBatch(jobIds);
}
@Override
public int updateBatch(List jobIds, int status){
return scheduleJobExtandMapper.updateBatch(jobIds,status);
}
@Override
@Transactional(rollbackFor = Exception.class)
public void run(List jobIds) {
for(Long jobId : jobIds){
ScheduleUtils.run(scheduler, scheduleJobMapper.selectByPrimaryKey(jobId));
}
}
@Override
@Transactional(rollbackFor = Exception.class)
public void pause(List jobIds) {
for(Long jobId : jobIds){
ScheduleUtils.pauseJob(scheduler, jobId);
}
updateBatch(jobIds, Constant.PAUSE);
}
@Override
@Transactional(rollbackFor = Exception.class)
public void resume(List jobIds) {
for(Long jobId : jobIds){
ScheduleUtils.resumeJob(scheduler, jobId);
}
updateBatch(jobIds, Constant.NORMAL);
}
}
```
6.ScheduleJobLogServiceImpl.java
```java
package com.example.dynamicschedule.service.impl;
import com.example.dynamicschedule.bean.ScheduleJobLog;
import com.example.dynamicschedule.bean.ScheduleJobLogExample;
import com.example.dynamicschedule.dao.ScheduleJobLogMapper;
import com.example.dynamicschedule.service.ScheduleJobLogService;
import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.List;
import java.util.Map;
@Service("scheduleJobLogService")
public class ScheduleJobLogServiceImpl implements ScheduleJobLogService {
@Autowired
private ScheduleJobLogMapper scheduleJobLogMapper;
@Override
public PageInfo queryPage(Map params) {
Long jobId = Long.parseLong(params.get("jobId").toString());
Integer page = Integer.parseInt(params.get("page").toString());
Integer pageSize = Integer.parseInt(params.get("pageSize").toString());
PageHelper.startPage(page,pageSize);
ScheduleJobLogExample scheduleJobLogExample = new ScheduleJobLogExample();
scheduleJobLogExample.createCriteria().andJobIdEqualTo(jobId);
List scheduleJobLogs = scheduleJobLogMapper.selectByExample(scheduleJobLogExample);
PageInfo pageInfo = new PageInfo<>(scheduleJobLogs);
return pageInfo;
}
}
```
**task**目录下：
7.TestTask.java
```java
package com.example.dynamicschedule.task;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;
/**
* 测试定时任务(演示Demo，可删除)
*
* testTask为spring bean的名称
*
*/
@Component("testTask")
@Slf4j
public class TestTask {
public void test(String params){
log.info("我是带参数的test方法，正在被执行，参数为：" + params);
try {
Thread.sleep(1000L);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
public void test2(){
log.info("我是不带参数的test2方法，正在被执行");
}
}
```
8.TestInterfaceTask.java
```java
package com.example.dynamicschedule.task;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;
@Component("test2task")
@Slf4j
public class TestInterfaceTask {
public void consoleLog(){
log.info("通过测试接口 来控制定时任务");
}
}
```
# 第三步 测试

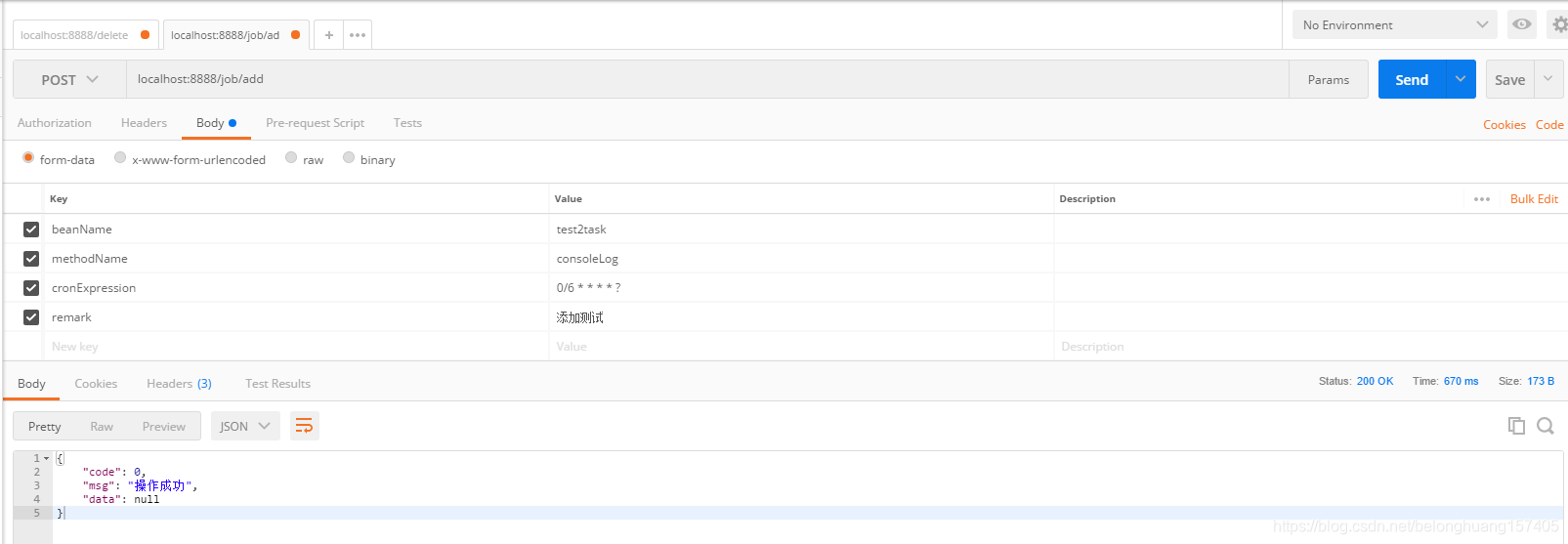

### 1、测试添加
创建成功 后台日志：
```java
Creating a new SqlSession
Registering transaction synchronization for SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@23e1c137]
JDBC Connection [com.alibaba.druid.proxy.jdbc.ConnectionProxyImpl@286090c] will be managed by Spring
==> Preparing: insert into schedule_job ( bean_name, method_name, cron_expression, status, remark, create_time ) values ( ?, ?, ?, ?, ?, ? )
==> Parameters: test2task(String), consoleLog(String), 0/6 * * * * ?(String), 0(Byte), 添加测试(String), 2019-01-02 09:47:58.141(Timestamp)
<== Updates: 1
Releasing transactional SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@23e1c137]
Transaction synchronization committing SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@23e1c137]
Transaction synchronization deregistering SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@23e1c137]
Transaction synchronization closing SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@23e1c137]
2019-01-02 09:48:00.033 INFO 3200 --- [eduler_Worker-1] c.e.d.utils.ScheduleJobUtils : 任务准备执行，任务ID：7
2019-01-02 09:48:00.047 INFO 3200 --- [pool-2-thread-1] c.e.d.task.TestInterfaceTask : 通过测试接口 来控制定时任务
2019-01-02 09:48:00.048 INFO 3200 --- [eduler_Worker-1] c.e.d.utils.ScheduleJobUtils : 任务执行完毕，任务ID：7 总共耗时：15毫秒
```

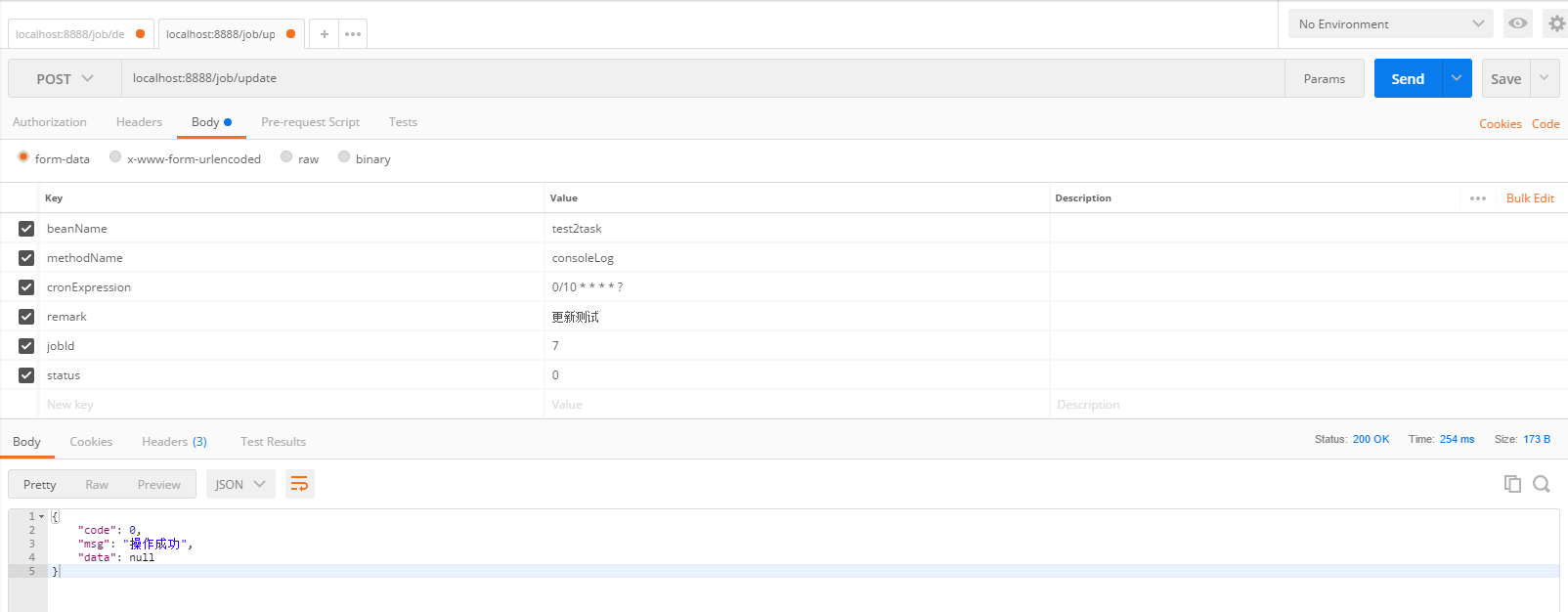

### 2、测试更新
更新成功 后台日志：
```java
Creating a new SqlSession
Registering transaction synchronization for SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@24cbeb4d]
JDBC Connection [com.alibaba.druid.proxy.jdbc.ConnectionProxyImpl@286090c] will be managed by Spring
==> Preparing: update schedule_job SET bean_name = ?, method_name = ?, cron_expression = ?, status = ?, remark = ? where job_id = ?
==> Parameters: test2task(String), consoleLog(String), 0/10 * * * * ?(String), 0(Byte), 更新测试(String), 7(Long)
<== Updates: 1
Releasing transactional SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@24cbeb4d]
Transaction synchronization committing SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@24cbeb4d]
Transaction synchronization deregistering SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@24cbeb4d]
Transaction synchronization closing SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@24cbeb4d]
```

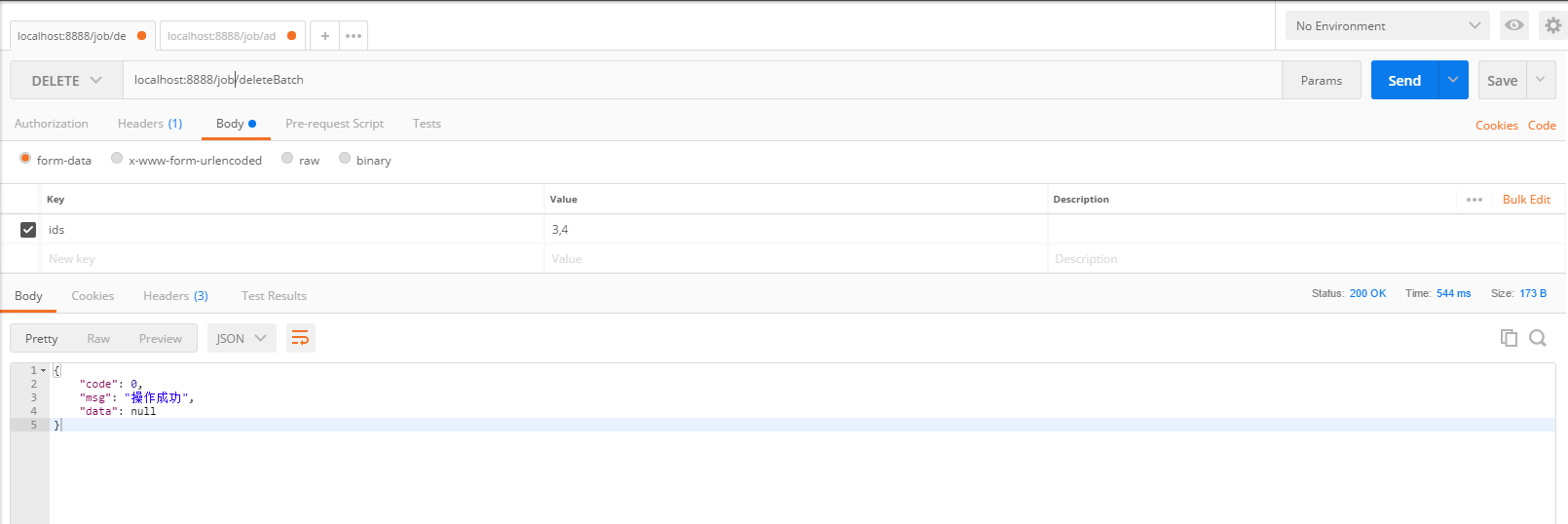

### 3、测试删除
删除成功 后台日志：
```java
Creating a new SqlSession
Registering transaction synchronization for SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@5e717c5a]
JDBC Connection [com.alibaba.druid.proxy.jdbc.ConnectionProxyImpl@286090c] will be managed by Spring
==> Preparing: delete from schedule_job where job_id in ( ? )
==> Parameters: 6(Long)
<== Updates: 0
Releasing transactional SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@5e717c5a]
Transaction synchronization committing SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@5e717c5a]
Transaction synchronization deregistering SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@5e717c5a]
Transaction synchronization closing SqlSession [org.apache.ibatis.session.defaults.DefaultSqlSession@5e717c5a]
```
**ScheduleJobController**类中还有列表、批量删除，启动定时器，暂停定时器，激活定时器等等方法在本文中不再一一测试，请读者自行测试。
### 附录：
附录内容为 （4.由项目的**resources**的**generator**配置文件，通过pom下配置的工具**mybatis-generator-maven-plugin**生成） 的内容补充：对应生成文件，以及该配置文件
1.ScheduleJobMapper.xml
```xml
and ${criterion.condition}
and ${criterion.condition} #{criterion.value}
and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
and ${criterion.condition}
#{listItem}
and ${criterion.condition}
and ${criterion.condition} #{criterion.value}
and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
and ${criterion.condition}
#{listItem}
job_id, bean_name, method_name, params, cron_expression, status, remark, create_time
delete from schedule_job
where job_id = #{jobId,jdbcType=BIGINT}
delete from schedule_job
insert into schedule_job (bean_name, method_name, params,
cron_expression, status, remark,
create_time)
values (#{beanName,jdbcType=VARCHAR}, #{methodName,jdbcType=VARCHAR}, #{params,jdbcType=VARCHAR},
#{cronExpression,jdbcType=VARCHAR}, #{status,jdbcType=TINYINT}, #{remark,jdbcType=VARCHAR},
#{createTime,jdbcType=TIMESTAMP})
insert into schedule_job
bean_name,
method_name,
params,
cron_expression,
status,
remark,
create_time,
#{beanName,jdbcType=VARCHAR},
#{methodName,jdbcType=VARCHAR},
#{params,jdbcType=VARCHAR},
#{cronExpression,jdbcType=VARCHAR},
#{status,jdbcType=TINYINT},
#{remark,jdbcType=VARCHAR},
#{createTime,jdbcType=TIMESTAMP},
update schedule_job
job_id = #{record.jobId,jdbcType=BIGINT},
bean_name = #{record.beanName,jdbcType=VARCHAR},
method_name = #{record.methodName,jdbcType=VARCHAR},
params = #{record.params,jdbcType=VARCHAR},
cron_expression = #{record.cronExpression,jdbcType=VARCHAR},
status = #{record.status,jdbcType=TINYINT},
remark = #{record.remark,jdbcType=VARCHAR},
create_time = #{record.createTime,jdbcType=TIMESTAMP},
update schedule_job
set job_id = #{record.jobId,jdbcType=BIGINT},
bean_name = #{record.beanName,jdbcType=VARCHAR},
method_name = #{record.methodName,jdbcType=VARCHAR},
params = #{record.params,jdbcType=VARCHAR},
cron_expression = #{record.cronExpression,jdbcType=VARCHAR},
status = #{record.status,jdbcType=TINYINT},
remark = #{record.remark,jdbcType=VARCHAR},
create_time = #{record.createTime,jdbcType=TIMESTAMP}
update schedule_job
bean_name = #{beanName,jdbcType=VARCHAR},
method_name = #{methodName,jdbcType=VARCHAR},
params = #{params,jdbcType=VARCHAR},
cron_expression = #{cronExpression,jdbcType=VARCHAR},
status = #{status,jdbcType=TINYINT},
remark = #{remark,jdbcType=VARCHAR},
create_time = #{createTime,jdbcType=TIMESTAMP},
where job_id = #{jobId,jdbcType=BIGINT}
update schedule_job
set bean_name = #{beanName,jdbcType=VARCHAR},
method_name = #{methodName,jdbcType=VARCHAR},
params = #{params,jdbcType=VARCHAR},
cron_expression = #{cronExpression,jdbcType=VARCHAR},
status = #{status,jdbcType=TINYINT},
remark = #{remark,jdbcType=VARCHAR},
create_time = #{createTime,jdbcType=TIMESTAMP}
where job_id = #{jobId,jdbcType=BIGINT}
```
2.ScheduleJobLogMapper.xml
```xml
and ${criterion.condition}
and ${criterion.condition} #{criterion.value}
and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
and ${criterion.condition}
#{listItem}
and ${criterion.condition}
and ${criterion.condition} #{criterion.value}
and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
and ${criterion.condition}
#{listItem}
log_id, job_id, bean_name, method_name, params, status, error, times, create_time
delete from schedule_job_log
where log_id = #{logId,jdbcType=BIGINT}
delete from schedule_job_log
insert into schedule_job_log (job_id, bean_name, method_name,
params, status, error,
times, create_time)
values (#{jobId,jdbcType=BIGINT}, #{beanName,jdbcType=VARCHAR}, #{methodName,jdbcType=VARCHAR},
#{params,jdbcType=VARCHAR}, #{status,jdbcType=TINYINT}, #{error,jdbcType=VARCHAR},
#{times,jdbcType=INTEGER}, #{createTime,jdbcType=TIMESTAMP})
insert into schedule_job_log
job_id,
bean_name,
method_name,
params,
status,
error,
times,
create_time,
#{jobId,jdbcType=BIGINT},
#{beanName,jdbcType=VARCHAR},
#{methodName,jdbcType=VARCHAR},
#{params,jdbcType=VARCHAR},
#{status,jdbcType=TINYINT},
#{error,jdbcType=VARCHAR},
#{times,jdbcType=INTEGER},
#{createTime,jdbcType=TIMESTAMP},
update schedule_job_log
log_id = #{record.logId,jdbcType=BIGINT},
job_id = #{record.jobId,jdbcType=BIGINT},
bean_name = #{record.beanName,jdbcType=VARCHAR},
method_name = #{record.methodName,jdbcType=VARCHAR},
params = #{record.params,jdbcType=VARCHAR},
status = #{record.status,jdbcType=TINYINT},
error = #{record.error,jdbcType=VARCHAR},
times = #{record.times,jdbcType=INTEGER},
create_time = #{record.createTime,jdbcType=TIMESTAMP},
update schedule_job_log
set log_id = #{record.logId,jdbcType=BIGINT},
job_id = #{record.jobId,jdbcType=BIGINT},
bean_name = #{record.beanName,jdbcType=VARCHAR},
method_name = #{record.methodName,jdbcType=VARCHAR},
params = #{record.params,jdbcType=VARCHAR},
status = #{record.status,jdbcType=TINYINT},
error = #{record.error,jdbcType=VARCHAR},
times = #{record.times,jdbcType=INTEGER},
create_time = #{record.createTime,jdbcType=TIMESTAMP}
update schedule_job_log
job_id = #{jobId,jdbcType=BIGINT},
bean_name = #{beanName,jdbcType=VARCHAR},
method_name = #{methodName,jdbcType=VARCHAR},
params = #{params,jdbcType=VARCHAR},
status = #{status,jdbcType=TINYINT},
error = #{error,jdbcType=VARCHAR},
times = #{times,jdbcType=INTEGER},
create_time = #{createTime,jdbcType=TIMESTAMP},
where log_id = #{logId,jdbcType=BIGINT}
update schedule_job_log
set job_id = #{jobId,jdbcType=BIGINT},
bean_name = #{beanName,jdbcType=VARCHAR},
method_name = #{methodName,jdbcType=VARCHAR},
params = #{params,jdbcType=VARCHAR},
status = #{status,jdbcType=TINYINT},
error = #{error,jdbcType=VARCHAR},
times = #{times,jdbcType=INTEGER},
create_time = #{createTime,jdbcType=TIMESTAMP}
where log_id = #{logId,jdbcType=BIGINT}
```
3.ScheduleJobMapper.java
```java
and ${criterion.condition}
and ${criterion.condition} #{criterion.value}
and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
and ${criterion.condition}
#{listItem}
and ${criterion.condition}
and ${criterion.condition} #{criterion.value}
and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
and ${criterion.condition}
#{listItem}
log_id, job_id, bean_name, method_name, params, status, error, times, create_time
delete from schedule_job_log
where log_id = #{logId,jdbcType=BIGINT}
delete from schedule_job_log
insert into schedule_job_log (job_id, bean_name, method_name,
params, status, error,
times, create_time)
values (#{jobId,jdbcType=BIGINT}, #{beanName,jdbcType=VARCHAR}, #{methodName,jdbcType=VARCHAR},
#{params,jdbcType=VARCHAR}, #{status,jdbcType=TINYINT}, #{error,jdbcType=VARCHAR},
#{times,jdbcType=INTEGER}, #{createTime,jdbcType=TIMESTAMP})
insert into schedule_job_log
job_id,
bean_name,
method_name,
params,
status,
error,
times,
create_time,
#{jobId,jdbcType=BIGINT},
#{beanName,jdbcType=VARCHAR},
#{methodName,jdbcType=VARCHAR},
#{params,jdbcType=VARCHAR},
#{status,jdbcType=TINYINT},
#{error,jdbcType=VARCHAR},
#{times,jdbcType=INTEGER},
#{createTime,jdbcType=TIMESTAMP},
update schedule_job_log
log_id = #{record.logId,jdbcType=BIGINT},
job_id = #{record.jobId,jdbcType=BIGINT},
bean_name = #{record.beanName,jdbcType=VARCHAR},
method_name = #{record.methodName,jdbcType=VARCHAR},
params = #{record.params,jdbcType=VARCHAR},
status = #{record.status,jdbcType=TINYINT},
error = #{record.error,jdbcType=VARCHAR},
times = #{record.times,jdbcType=INTEGER},
create_time = #{record.createTime,jdbcType=TIMESTAMP},
update schedule_job_log
set log_id = #{record.logId,jdbcType=BIGINT},
job_id = #{record.jobId,jdbcType=BIGINT},
bean_name = #{record.beanName,jdbcType=VARCHAR},
method_name = #{record.methodName,jdbcType=VARCHAR},
params = #{record.params,jdbcType=VARCHAR},
status = #{record.status,jdbcType=TINYINT},
error = #{record.error,jdbcType=VARCHAR},
times = #{record.times,jdbcType=INTEGER},
create_time = #{record.createTime,jdbcType=TIMESTAMP}
update schedule_job_log
job_id = #{jobId,jdbcType=BIGINT},
bean_name = #{beanName,jdbcType=VARCHAR},
method_name = #{methodName,jdbcType=VARCHAR},
params = #{params,jdbcType=VARCHAR},
status = #{status,jdbcType=TINYINT},
error = #{error,jdbcType=VARCHAR},
times = #{times,jdbcType=INTEGER},
create_time = #{createTime,jdbcType=TIMESTAMP},
where log_id = #{logId,jdbcType=BIGINT}
update schedule_job_log
set job_id = #{jobId,jdbcType=BIGINT},
bean_name = #{beanName,jdbcType=VARCHAR},
method_name = #{methodName,jdbcType=VARCHAR},
params = #{params,jdbcType=VARCHAR},
status = #{status,jdbcType=TINYINT},
error = #{error,jdbcType=VARCHAR},
times = #{times,jdbcType=INTEGER},
create_time = #{createTime,jdbcType=TIMESTAMP}
where log_id = #{logId,jdbcType=BIGINT}
```
4.ScheduleJobLogMapper.java
```java
package com.example.dynamicschedule.dao;
import com.example.dynamicschedule.bean.ScheduleJobLog;
import com.example.dynamicschedule.bean.ScheduleJobLogExample;
import java.util.List;
import org.apache.ibatis.annotations.Param;
public interface ScheduleJobLogMapper {
long countByExample(ScheduleJobLogExample example);
int deleteByExample(ScheduleJobLogExample example);
int deleteByPrimaryKey(Long logId);
int insert(ScheduleJobLog record);
int insertSelective(ScheduleJobLog record);
List selectByExample(ScheduleJobLogExample example);
ScheduleJobLog selectByPrimaryKey(Long logId);
int updateByExampleSelective(@Param("record") ScheduleJobLog record, @Param("example") ScheduleJobLogExample example);
int updateByExample(@Param("record") ScheduleJobLog record, @Param("example") ScheduleJobLogExample example);
int updateByPrimaryKeySelective(ScheduleJobLog record);
int updateByPrimaryKey(ScheduleJobLog record);
}
```
5.mybatis_generator_config.xml
```xml
jdbc.driverLocation=D:\\mavenLocal\\mysql\\mysql-connector-java\\5.1.43\\mysql-connector-java-5.1.43.jar
# 该驱动会导致 XXByPrimaryKey 生成失败
jdbc.driverClass=com.mysql.jdbc.Driver
jdbc.connectionURL=jdbc:mysql://47.99.200.71:3306/test?serverTimezone=UTC&useUnicode=true&characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&tinyInt1isBit=false
jdbc.userId=root
jdbc.password=123456
# defaultModelType
# 1，conditional：类似hierarchical；
# 2，flat：所有内容（主键，blob）等全部生成在一个对象中； default
# 3，hierarchical：主键生成一个XXKey对象(key class)，Blob等单独生成一个对象，其他简单属性在一个对象中(record class)
context.defaultModelType=flat
# targetRuntime:
# 1，MyBatis3：默认的值，生成基于MyBatis3.x以上版本的内容，包括XXXBySample；
# 2，MyBatis3Simple：类似MyBatis3，只是不生成XXXBySample；
context.targetRuntime=MyBatis3
# 相关表的配置
table.name=schedule_job_log
table.domainObjectName=ScheduleJobLog
java.model.generator.targetPackage=com.example.dynamicschedule.bean
java.client.generator.targetPackage=com.example.dynamicschedule.dao
sql.map.generator.targetPackage=mappers
table.enableInsert=true
table.enableDeleteByPrimaryKey=true
table.enableUpdateByPrimaryKey=true
table.enableSelectByPrimaryKey=true
table.enableDeleteByExample=true
table.enableUpdateByExample=true
table.enableSelectByExample=true
table.enableCountByExample=true
# column:主键的列名
table.generatedKey.column=log_id
# sqlStatement：要生成的selectKey语句，有以下可选项：
# Cloudscape:相当于selectKey的SQL为： VALUES IDENTITY_VAL_LOCAL()
# DB2 :相当于selectKey的SQL为： VALUES IDENTITY_VAL_LOCAL()
# DB2_MF :相当于selectKey的SQL为：SELECT IDENTITY_VAL_LOCAL() FROM SYSIBM.SYSDUMMY1
# Derby :相当于selectKey的SQL为：VALUES IDENTITY_VAL_LOCAL()
# HSQLDB :相当于selectKey的SQL为：CALL IDENTITY()
# Informix :相当于selectKey的SQL为：select dbinfo('sqlca.sqlerrd1') from systables where tabid=1
# MySql :相当于selectKey的SQL为：SELECT LAST_INSERT_ID()
# SqlServer :相当于selectKey的SQL为：SELECT SCOPE_IDENTITY()
# SYBASE :相当于selectKey的SQL为：SELECT @@IDENTITY
# JDBC :相当于在生成的insert元素上添加useGeneratedKeys="true"和keyProperty属性
table.generatedKey.sqlStatement=JDBC
# 实体类生成的位置
# Model模型生成器,用来生成含有主键key的类，记录类 以及查询Example类
# targetPackage 指定生成的model生成所在的包名
# targetProject 指定在该项目下所在的路径
java.model.generator.targetProject=src/main/java
# *Mapper.xml 文件的位置
# Mapper映射文件生成所在的目录 为每一个数据库的表生成对应的SqlMap文件
sql.map.generator.targetProject=src/main/resources
# Mapper 接口文件的位置
# 客户端代码，生成易于使用的针对Model对象和XML配置文件 的代码
# type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象
# type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象
# type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口
java.client.generator.targetProject=src/main/java
java.client.generator.type=XMLMAPPER
```
6.generator.properties
```xml
```
